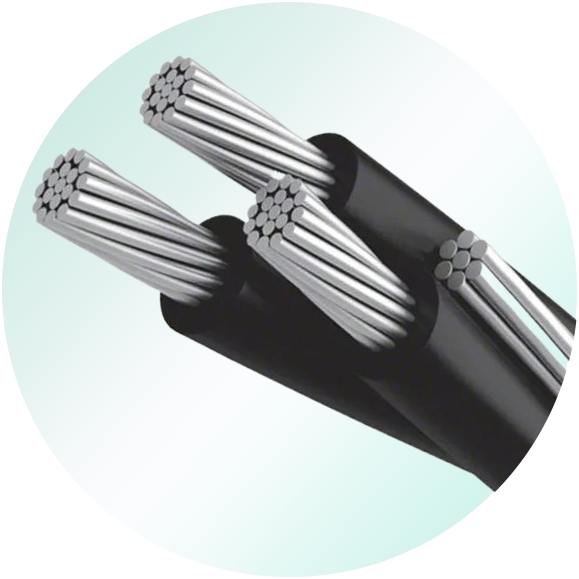

0.6-1KV Aerial Bundled Cable(NFC)
0.6-1KV Aerial Bundled Cable(NFC)

0.6-1KV Aerial Bundled Cable(NFC)

The ABC cable provides a higher level of safety and reliability, lower power losses, and called economic design by reducing installation, maintenance, and operative cost.

Send E-mail Inquiry Now
Application Construction Characteristics Parameter Related Products

APPLICATION

Aerial Bundled Cable is also called insulated ABC Cable, it be used in overhead distribution line of rated voltages 0.6/1kV and below. Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. The conductor long-term operating temperatures not to exceed 90°C for cross-linked polyethylene (XLPE) insulated conductors.

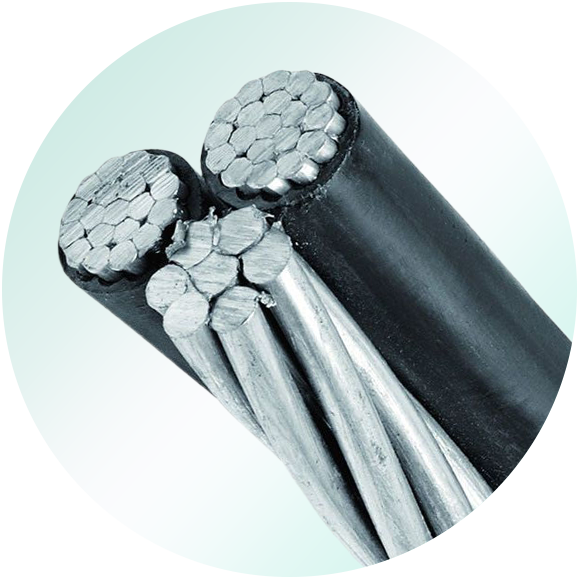

Construction

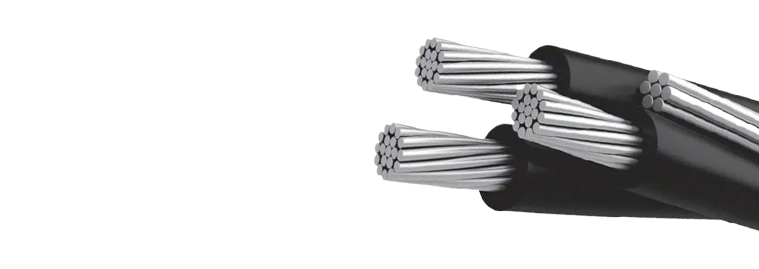

0.6-1KV-Aerial-Bundled-Cable(NFC)-10

Phase Conductor: Stranded,Circular compacted,Circular compressed AAC.
Neutral Conductor: Stranded,Circular compacted or uncompacted AAAC.
Street Lighting Conductor: Stranded,Circular compacted,Circular compressed AAC.
Insulation: Cross-linked polyethylene (XLPE),Black color,Weather and UV resistant.

CHARACTERISTICS

The ABC cable provides a higher level of safety and reliability, lower power losses, and called economic design by reducing installation, maintenance, and operative cost.

STANDARD

  • NFC 33-209

    Insulated cable assembled with harness for overhead network, with rated voltage of 0.6/1kV

Product parameters

AAC/XLPE
No. of Cores and Section Area No. of Wires Insulation Thickness Approx.  Diameter
of Cable		 Max. DC. Resistance at 20℃ Approx. Weight
mm2 No. mm mm Ω/km kg/km
2x16 7 1.2 14.3  1.91 133
2x25 7 1.4 17.5  1.20  202
2x35 7 1.6 20.3  0.868 275
2x50 7 1.6 22.5  0.641 352
2x70 12 1.8 26.7  0.443 497
2x95 19 1.8 30.3  0.320  658
2x120 19 1.8 32.7  0.253 801
4x16 7 1.2 17.3  1.91 264
4x25 7 1.4 21.1  1.20  401
4x35 7 1.6 24.5  0.868 549
4x50 7 1.6 27.1  0.641 701
4x70 12 1.8 32.3  0.443 992
4x95 19 1.8 36.7  0.320  1313
4x120 19 1.8 39.6  0.253 1599
AAC/XLPE+AAAC/XLPE
No. of Cores and Section Area Phase Core Neutral Core Approx.  Diameter
of Cable		 Max. DC. Resistance at 20℃ Approx. Weight
No. of Wires Insulation Thickness No. of Wires Insulation Thickness Phase Neutral
mm2 No. mm No. mm mm Ω/km Ω/km kg/km
1x25+1x54.6 7 1.4 7 1.6 21.5  1.20  0.63 311
1x35+1x54.6 7 1.6 7 1.6 22.9  0.868 0.63 347
1x50+1x54.6 7 1.6 7 1.6 24.0  0.641 0.63 386
1x70+1x54.6 12 1.8 7 1.6 26.1  0.443 0.63 458
1x95+1x54.6 19 1.8 7 1.6 27.9  0.320  0.63 539
1x70+1x70 12 1.8 7 1.5 26.9  0.443 0.50  493
1x95+1x70 19 1.8 7 1.5 28.7  0.320  0.50  573
1x120+1x70 19 1.8 7 1.5 29.9  0.253 0.50  645
1x120+1x95 19 1.8 19 1.6 32.1  0.253 0.343 739
1x150+1x95 19 1.7 19 1.6 33.8  0.206 0.343 821
3x25+1x54.6 7 1.4 7 1.6 23.7  1.20  0.63 510
3x35+1x54.6 7 1.6 7 1.6 26.3  0.868 0.63 621
3x50+1x54.6 7 1.6 7 1.6 28.3  0.641 0.63 735
3x70+1x54.6 12 1.8 7 1.6 32.1  0.443 0.63 953
3x95+1x54.6 19 1.8 7 1.6 35.4  0.320  0.63 1194
3x70+1x70 12 1.8 7 1.5 32.6  0.443 0.50  988
3x95+1x70 19 1.8 7 1.5 35.8  0.320  0.50  1229
3x120+1x70 19 1.8 7 1.5 38.0  0.253 0.50  1443
3x120+1x95 19 1.8 19 1.6 39.3  0.253 0.343 1538
3x150+1x95 19 1.7 19 1.6 42.4  0.206 0.343 1781
AAC/XLPE+AAAC/XLPE+AAC/XLPE
No. of Cores and Section Area Phase Core Neutral Core Street Lighting Core Approx.  Diameter
of Cable		 Max. DC.  Resistance at 20℃ Approx. Weight
No. of Wires Insulation Thickness No. of Wires Insulation Thickness No. of Wires Insulation Thickness Phase Neutral Street Lighting
mm2 No. mm No. mm No. mm mm Ω/km Ω/km Ω/km kg/km
3x25+1x54.6+1x16 7 1.4 7 1.6 7 1.2 30.2  1.20  0.63 1.91 572
3x35+1x54.6+1x16 7 1.6 7 1.6 7 1.2 33.0  0.868 0.63 1.91 683
3x50+1x54.6+1x16 7 1.6 7 1.6 7 1.2 35.2  0.641 0.63 1.91 798
3x70+1x54.6+1x16 12 1.8 7 1.6 7 1.2 39.4  0.443 0.63 1.91 1015
3x70+1x54.6+1x25 12 1.8 7 1.6 7 1.4 39.4  0.443 0.63 1.20  1050
3x70+1x70+1x16 12 1.8 7 1.5 7 1.2 40.2  0.443 0.50  1.91 1050
3x95+1x70+1x16 19 1.8 7 1.5 7 1.2 43.8  0.320  0.50  1.91 1291
3x120+1x70+1x16 19 1.8 7 1.5 7 1.2 46.2  0.253 0.50  1.91 1505
3x120+1x95+1x16 19 1.8 19 1.6 7 1.2 48.4  0.253 0.343 1.91 1599
3x150+1x95+1x16 19 1.7 19 1.6 7 1.2 51.8  0.206 0.343 1.91 1842
3x25+1x54.6+2x16 7 1.4 7 1.6 7 1.2 30.2  1.20  0.63 1.91 637
3x35+1x54.6+2x16 7 1.6 7 1.6 7 1.2 33.0  0.868 0.63 1.91 748
3x50+1x54.6+2x16 7 1.6 7 1.6 7 1.2 35.2  0.641 0.63 1.91 862
3x70+1x54.6+2x16 12 1.8 7 1.6 7 1.2 39.4  0.443 0.63 1.91 1080
3x70+1x54.6+2x25 12 1.8 7 1.6 7 1.4 39.4  0.443 0.63 1.20  1148
3x70+1x70+2x16 12 1.8 7 1.5 7 1.2 40.2  0.443 0.50  1.91 1116
3x95+1x70+2x16 19 1.8 7 1.5 7 1.2 43.8  0.320  0.50  1.91 1356
3x120+1x70+2x16 19 1.8 7 1.5 7 1.2 46.2  0.253 0.50  1.91 1575
3x120+1x95+2x16 19 1.8 19 1.6 7 1.2 48.4  0.253 0.343 1.91 1664
3x150+1x95+2x16 19 1.7 19 1.6 7 1.2 51.8  0.206 0.343 1.91 1917
