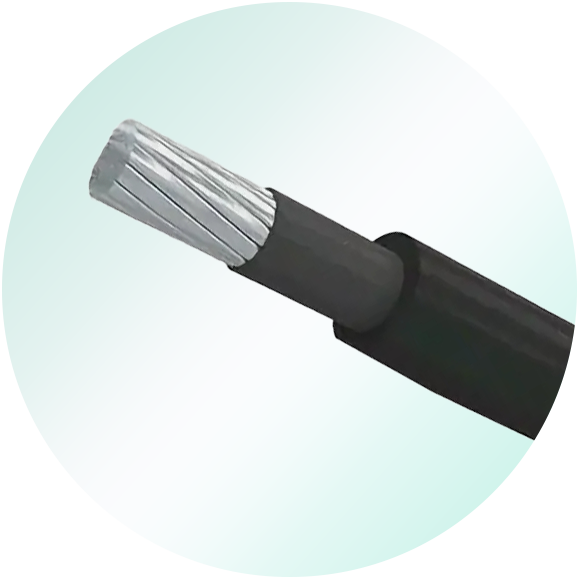

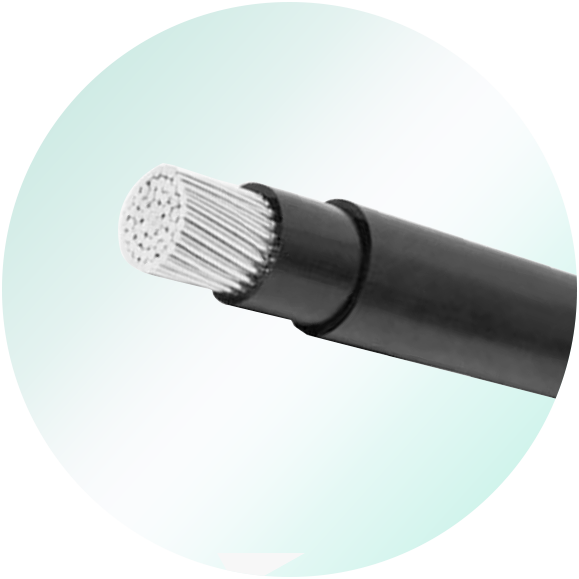

10KV Aerial Insulated Cable(IEC)
10KV Aerial Insulated Cable(IEC)

10KV Aerial Insulated Cable(IEC)

Aerial Insulated Cables with voltages of 10kV. The cable primarily used for the distribution of electrical energy under normal conditions of overhead (aerial) installations.

Send E-mail Inquiry Now
Application Construction Characteristics Parameter Related Products

APPLICATION

Aerial Insulated Cables with voltages of 10kV. The cable primarily used for the distribution of electrical energy under normal conditions of overhead (aerial) installations. The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer etc.

Construction

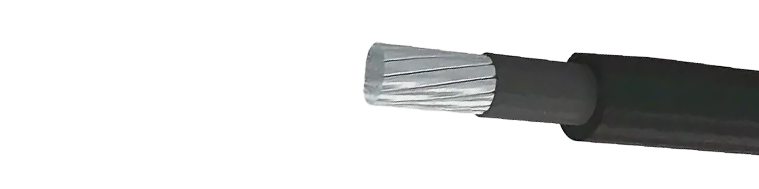

10KV-Aerial-Insulated-Cable(IEC)-18

Conductor: Stranded, circular compressed aluminum, aluminum-alloy, copper.
Conductor Screen: The extruded Semi-conducting conductor shield in Black.
Outer Insulation: Thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE) in Black with Weather or UV resistant.
This standard covers both thermoplastic and cross linked polyethylene constructions, rated for 75°C or 90°C normal service temperature.

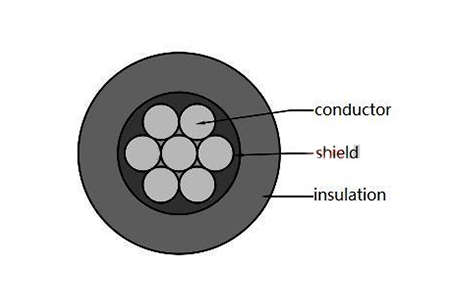

  • 10KV-Aerial-Insulated-Cable(IEC)-19
  • 10KV-Aerial-Insulated-Cable(IEC)-19
  • 10KV-Aerial-Insulated-Cable(IEC)-19

CHARACTERISTICS

This cable has UV-resistant properties, making it more durable and have a longer service life on overhead lines. Especially its a economic design and best suited for distribution line.

STANDARD

  • IEC 60502-2

    Power cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV (Um=1.2kV) up to 30kV (Um=36kV) - Part 2: Cables for Rated Voltages of 6kV (Um=7.2kV) and 30kV (Um=36kV)

  • GB/T 14049

    (Equal to IEC 60502-2) Aerial Insulated Cables For Rated Voltage of 10kV

Product parameters

Nominal Size Min. No.
of Wires		 Approx. Diameter of Conductor Min.
Thickness of Conductor screen
(Approx.)		 Nominal Thickness of Insulation Nominal Thickness of Insulation Screen Max. DC Resistance at   20 0C Min. Breaking Load
Reduced Nominal Hard Copper Soft Copper Hard Copper
mm2 No. mm mm mm mm mm Ω/km Ω/km N
10 6 3.8 0.5 - 3.4 - - 1.830  -
16 6 4.8 0.5 - 3.4 - - 1.150  -
25 6 6.0  0.5 2.5 3.4 1.0  0.749 0.727 8465
35 6 7.0  0.5 2.5 3.4 1.0  0.540  0.524 11731
50 6 8.3 0.5 2.5 3.4 1.0  0.399 0.387 16052
70 12 10.0  0.5 2.5 3.4 1.0  0.276 0.268 23461
95 15 11.6 0.6 2.5 3.4 1.0  0.199 0.193 31759
120 18 13.0  0.6 2.5 3.4 1.0  0.158 0.153 39911
150 18 14.6 0.6 2.5 3.4 1.0  0.128 - 49505
185 30 16.2 0.6 2.5 3.4 1.0  0.1021 - 61846
240 34 18.4 0.6 2.5 3.4 1.0  0.0777 - 79823
300 34 20.6 0.6 2.5 3.4 1.0  0.0619 - 99788
400 53 23.8 0.6 2.5 3.4 1.0  0.0484 - 133040



Nominal Size Min. No.
of Wires		 Approx. Diameter of Conductor Min.
Thickness of Conductor Screen
(Approx.)		 Nominal Thickness of Insulation Nominal Thickness of Insulation Screen Max. DC Resistance at
20 0C		 Min. Breaking Load
Reduced Nominal AAC AAAC AAC AAAC
mm2 No. mm mm mm mm mm Ω/km Ω/km N N
10 6 3.8 0.5 - 3.4 - 3.080  3.574 - -
16 6 4.8 0.5 - 3.4 - 1.910  2.217 - -
25 6 6.0  0.5 2.5 3.4 1.0  1.200  1.393 3762 6284
35 6 7.0  0.5 2.5 3.4 1.0  0.868 1.007 5177 8800
50 6 8.3 0.5 2.5 3.4 1.0  0.641 0.744 7011 12569
70 12 10.0  0.5 2.5 3.4 1.0  0.443 0.514 10354 17596
95 15 11.6 0.6 2.5 3.4 1.0  0.320  0.371 13727 23880
120 18 13.0  0.6 2.5 3.4 1.0  0.253 0.294 17339 30164
150 18 14.6 0.6 2.5 3.4 1.0  0.206 0.239 21033 37706
185 30 16.2 0.6 2.5 3.4 1.0  0.164 0.190  26732 46503
240 34 18.4 0.6 2.5 3.4 1.0  0.125 0.145 34679 60329
300 34 20.6 0.6 2.5 3.4 1.0  0.100  0.116 43349 75411
400 53 23.8 0.6 2.5 3.4 1.0  0.0778 0.0904 55707 100548
