AACSR-Aluminum Alloy Conductor Steel Reinforced

AACSR-Aluminum Alloy Conductor Steel Reinforced

AACSR is a concentrically stranded conductor composed of one or more layers of Aluminium -Magnesium -Silicon Alloy wire stranded around a high strength coated steel core.

Send E-mail Inquiry Now

Application Construction Characteristics Parameter Related Products

APPLICATION

AACSR conductor is used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR conductors where the aluminum wires are replaced with the high strength aluminum alloy material. These super high strength conductors are used in river crossings or for large span overhead lines application than ACSR.

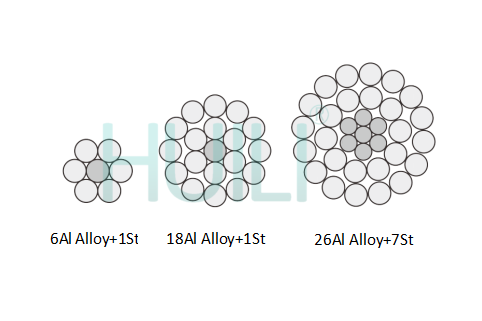

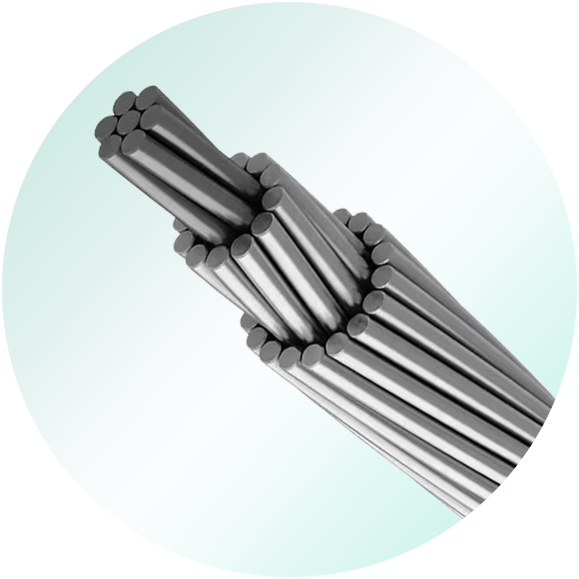

Construction

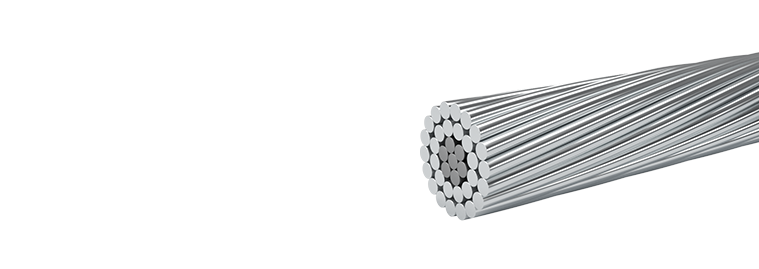

AACSR-Aluminum-Alloy-Conductor-Steel-Reinforced-17

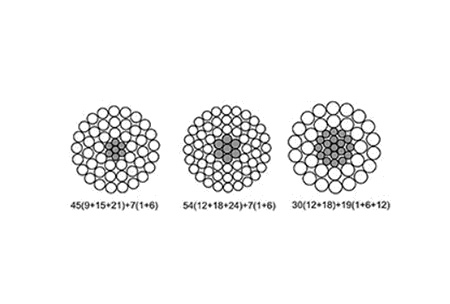

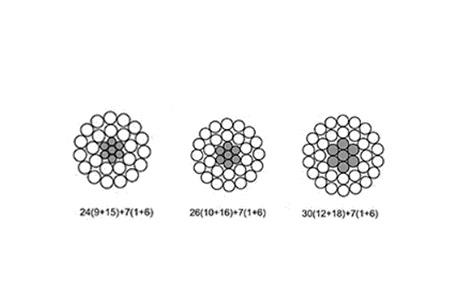

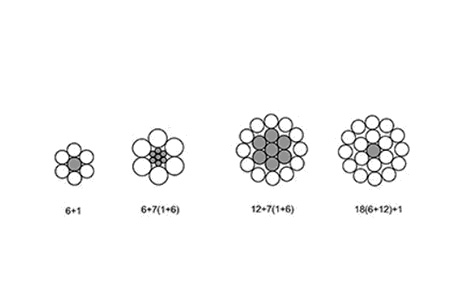

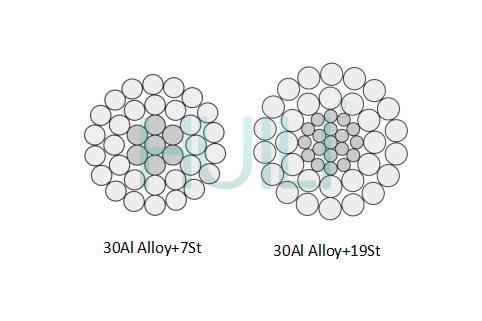

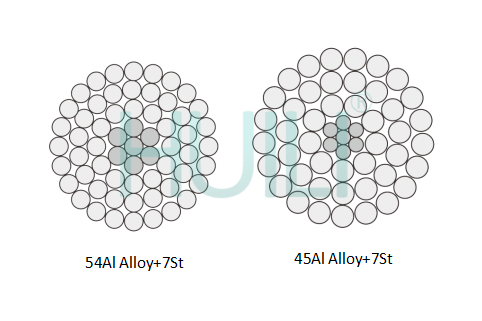

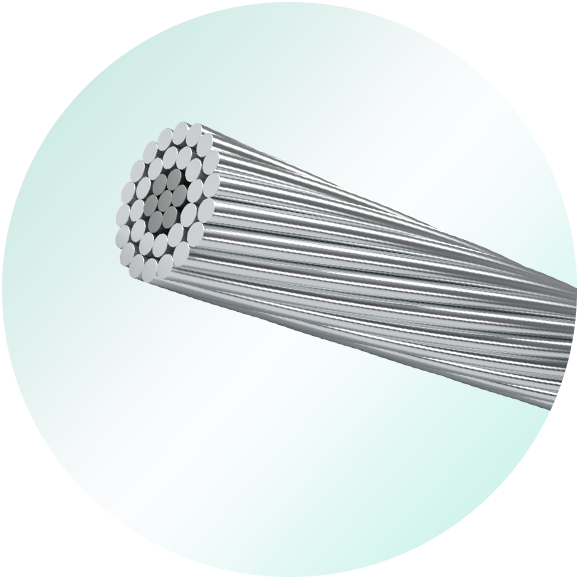

AACSR is a concentrically stranded conductor composed of one or more layers of Aluminium -Magnesium -Silicon Alloy wire stranded around a high strength coated steel core. The core can be of either single wire or stranded multi wire. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

CHARACTERISTICS

The conductor has high current carrying capacity, variable steel core stranding enables the designed strength to be achieved without sacrificing ampacity. Its tensile strength is higher than ACSR, and it has excellent corrosion resistance.

STANDARD

ASTM B711

Concentric-Lay-Stranded Aluminum-Alloy Conductors, Steel Reinforced (AACSR) (6201)
IEC 61089

Round wire concentric lay overhead electrical stranded conductors
GB/T 1179

Round wire concentric lay overhead electrical stranded conductors

Product parameters

Conductor Area			Stranding and Wire Diameter				Overall Diameter	Mass per Unit Length	Rated strength	Max. DC Resistance at 20℃
Alloy Nominal	Steel	Total	Alloy		Steel		Overall Diameter	Mass per Unit Length	Rated strength	Max. DC Resistance at 20℃
mm2	mm2	mm2	No.	mm	No.	mm	mm	kg/km	kN	Ω/km
1250	102	1352	84	4.35	19	2.61	47.8	4255	489	0.0271
1120	91	1211	84	4.12	19	2.47	45.3	3816	437	0.0302
1000	81	1081	84	3.89	19	2.33	42.8	3400	389	0.0339
900	73	973	84	3.69	19	2.21	40.6	3060	353	0.0377
800	101	901	54	4.34	19	2.60	39.0	3003	361	0.0423
710	90	800	54	4.09	19	2.45	36.8	2664	321	0.0477
630	80	710	54	3.85	19	2.31	34.6	2365	285	0.0538
560	71	631	54	3.63	19	2.18	32.7	2104	256	0.0605
500	63	563	54	3.43	19	2.06	30.9	1878	228	0.0678
450	59	509	54	3.26	19	1.98	29.5	1706	208	0.0750
400	91	491	30	4.12	19	2.47	28.8	1818	237	0.0844
400	65	465	26	4.43	7	3.45	28.1	1616	206	0.0840
355	81	436	30	3.88	19	2.33	27.2	1614	210	0.0951
355	58	413	26	4.17	7	3.24	26.4	1430	182	0.0948
315	72	387	30	3.66	19	2.20	25.6	1438	190	0.1069
315	52	367	26	3.93	7	3.06	24.9	1272	162	0.1067
280	65	345	30	3.45	7	3.45	24.2	1286	171	0.1203
280	46	326	26	3.70	7	2.88	23.4	1127	144	0.1204
250	58	308	30	3.26	7	3.26	22.8	1149	152	0.1348
250	41	291	26	3.50	7	2.72	22.2	1008	128	0.1346
224	52	276	30	3.08	7	3.08	21.6	1025	139	0.1510
224	36	260	26	3.31	7	2.57	21.0	901	115	0.1505
200	47	247	30	2.91	7	2.91	20.4	915	124	0.1691
200	32	232	26	3.13	7	2.43	19.8	805	105	0.1683
180	42	222	30	2.76	7	2.76	19.3	823	112	0.1880
180	29	209	26	2.97	7	2.31	18.8	731	195	0.1869
160	38	198	30	2.61	7	2.61	18.3	736	100	0.2102
160	26	186	26	2.80	7	2.18	17.7	646	85.5	0.2103
140	33	173	30	2.44	7	2.44	17.1	643	87.4	0.2406
140	23	163	26	2.62	7	2.04	16.6	565	74.9	0.2401

AACSR-A2/S1A
Code Number	Steel Ratio	Areas			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	Max. DC Resistance at 20℃
		Areas			Number of Wires		Wire Diameter		Diameter
		Al. Alloy	Steel	Total	Al. Alloy	Steel	Al. Alloy	Steel	Core	Cond.
	%	mm2	mm2	mm2	No.	No.	mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	18.4	3.07	21.5	6	1	1.98	1.98	1.98	5.93	74.4	9.02	1.7934
25	17	28.8	4.80	33.6	6	1	2.47	2.47	2.47	7.41	116.2	13.96	1.1478
40	17	46.0	7.67	53.7	6	1	3.13	3.13	3.13	9.38	185.9	22.02	0.7174
63	17	72.5	12.1	84.6	6	1	3.92	3.92	3.92	11.8	292.8	34.68	0.4555
100	6	115	6.39	121	18	1	2.85	2.85	2.85	14.3	366.4	41.24	0.2880
125	6	144	7.99	152	18	1	3.19	3.19	3.19	16.0	458.0	51.23	0.2304
125	16	144	23.4	167	26	7	2.65	2.06	6.19	16.8	579.9	69.86	0.2310
160	6	184	10.2	194	18	1	3.61	3.61	3.61	18.0	586.2	65.58	0.1800
160	16	184	30.0	214	26	7	3.00	2.34	7.01	19.0	742.3	88.52	0.1805
200	6	230	12.8	243	18	1	4.04	4.04	4.04	20.2	732.8	81.97	0.1440
200	16	230	37.5	268	26	7	3.36	2.61	7.83	21.3	927.9	110.64	0.1444
250	10	288	28.3	316	22	7	4.08	2.27	6.80	23.1	1013.5	117.09	0.1154
250	16	288	46.9	335	26	7	3.75	2.92	8.76	23.8	1159.8	138.31	0.1155
315	7	363	25.1	388	45	7	3.20	2.14	6.41	25.6	1196.5	136.28	0.0917
315	16	363	59.0	422	26	7	4.21	3.28	9.83	26.7	1461.4	171.90	0.0917
400	7	460	31.8	492	45	7	3.61	2.41	7.22	28.9	1519.4	172.10	0.0722
400	13	460	59.7	520	54	7	3.29	3.29	9.88	29.7	1738.3	201.46	0.0723
450	7	518	35.8	554	45	7	3.83	2.55	7.66	30.6	1709.3	193.61	0.0642
450	13	518	67.1	585	54	7	3.49	3.49	10.5	31.5	1955.6	226.64	0.0643
500	7	575	39.8	615	45	7	4.04	2.69	8.07	32.3	1899.3	215.12	0.0578
500	13	575	74.6	650	54	7	3.68	3.68	11.1	33.2	2172.9	251.82	0.0578
560	7	645	44.6	689	45	7	4.27	2.85	8.54	34.2	2127.2	240.93	0.0516
560	13	645	81.6	726	54	19	3.90	2.34	11.7	35.1	2420.9	283.21	0.0516
630	4	725	31.3	756	72	7	3.58	2.39	7.16	35.8	2248.0	249.62	0.0459
630	13	725	91.8	817	54	19	4.13	2.48	12.4	37.2	2723.5	318.61	0.0459
710	4	817	35.3	852	72	7	3.80	2.53	7.60	38.0	2533.4	281.32	0.0407
710	13	817	104	921	54	19	4.39	2.63	13.2	39.5	3069.4	359.06	0.0407
800	4	921	39.8	961	72	7	4.04	2.69	8.07	40.4	2854.6	316.98	0.0361
800	8	921	76.7	997	84	7	3.74	3.74	11.2	41.1	3145.1	356.03	0.0362
900	4	1036	44.8	1081	72	7	4.28	2.85	8.56	42.8	3211.4	356.60	0.0321
900	8	1036	86.3	1122	84	7	3.96	3.96	11.9	43.6	3538.3	400.53	0.0322
1000	8	1151	93.7	1245	84	19	4.18	2.51	12.5	45.9	3916.8	446.37	0.0289
1120	8	1289	105	1394	84	19	4.42	2.65	13.3	48.6	4386.8	499.93	0.0258

AACSR-A2/S3A
Code Number	Steel Ratio	Areas			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	Max. DC Resistance at 20℃
		Areas			Number of Wires		Wire Diameter		Diameter
		Al. Alloy	Steel	Total	Al. Alloy	Steel	Al. Alloy	Steel	Core	Cond.
	%	mm2	mm2	mm2	No.	No.	mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	18.4	3.07	21.5	6	1	1.98	1.98	1.98	5.93	74.4	9.88	1.7934
25	17	28.8	4.80	33.6	6	1	2.47	2.47	2.47	7.41	116.2	15.25	1.1478
40	17	46.0	7.67	53.7	6	1	3.13	3.13	3.13	9.38	185.9	24.17	0.7174
63	17	72.5	12.1	84.6	6	1	3.92	3.92	3.92	11.8	292.8	37.58	0.4555
100	6	115	6.39	121	18	1	2.85	2.85	2.85	14.3	366.4	42.97	0.2880
125	6	144	7.99	152	18	1	3.19	3.19	3.19	16.0	458.0	53.47	0.2304
125	16	144	23.4	167	26	7	2.65	2.06	6.19	16.8	579.9	76.42	0.2310
160	6	184	10.2	194	18	1	3.61	3.61	3.61	18.0	586.2	68.03	0.1800
160	16	184	30.0	214	26	7	3.00	2.34	7.01	19.0	742.3	96.61	0.1805
200	6	230	12.8	243	18	1	4.04	4.04	4.04	20.2	732.8	85.04	0.1440
200	16	230	37.5	268	26	7	3.36	2.61	7.83	21.3	927.9	120.77	0.1444
250	10	288	28.3	316	22	7	4.08	2.27	6.80	23.1	1013.5	124.72	0.1154
250	16	288	46.9	335	26	7	3.75	2.92	8.76	23.8	1159.8	150.96	0.1155
315	7	363	25.1	388	45	7	3.20	2.14	6.41	25.6	1196.5	143.30	0.0917
315	16	363	59.0	422	26	7	4.21	3.28	9.83	26.7	1461.4	188.44	0.0917
400	7	460	31.8	492	45	7	3.61	2.41	7.22	28.9	1519.4	180.69	0.0722
400	13	460	59.7	520	54	7	3.29	3.29	9.88	29.7	1738.3	218.17	0.0723
450	7	518	35.8	554	45	7	3.83	2.55	7.66	30.6	1709.3	203.28	0.0642
450	13	518	67.1	585	54	7	3.49	3.49	10.5	31.5	1955.6	245.44	0.0643
500	7	575	39.8	615	45	7	4.04	2.69	8.07	32.3	1899.3	225.86	0.0578
500	13	575	74.6	650	54	7	3.68	3.68	11.1	33.2	2172.9	269.73	0.0578
560	7	645	44.6	689	45	7	4.27	2.85	8.54	34.2	2127.2	252.97	0.0516
560	13	645	81.6	726	54	19	3.90	2.34	11.7	35.1	2420.9	305.25	0.0516
630	4	725	31.3	756	72	7	3.58	2.39	7.16	35.8	2248.0	258.08	0.0459
630	13	725	91.8	817	54	19	4.13	2.48	12.4	37.2	2723.5	343.40	0.0459
710	4	817	35.3	852	72	7	3.80	2.53	7.60	38.0	2533.4	290.85	0.0407
710	13	817	104	921	54	19	4.39	2.63	13.2	39.5	3069.4	387.01	0.0407
800	4	921	39.8	961	72	7	4.04	2.69	8.07	40.4	2854.6	327.72	0.0361
800	8	921	76.7	997	84	7	3.74	3.74	11.2	41.1	3145.1	374.44	0.0362
900	4	1036	44.8	1081	72	7	4.28	2.85	8.56	42.8	3211.4	368.69	0.0321
900	8	1036	86.3	1122	84	7	3.96	3.96	11.9	43.6	3538.3	421.25	0.0322
1000	8	1151	93.7	1245	84	19	4.18	2.51	12.5	45.9	3916.8	471.67	0.0289
1120	8	1289	105	1394	84	19	4.42	2.65	13.3	48.6	4386.8	528.27	0.0258

AACSR-A3/S1A
Code Number	Steel Ratio	Areas			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	Max. DC Resistance at 20℃
		Areas			Number of Wires		Wire Diameter		Diameter
		Al. Alloy	Steel	Total	Al. Alloy	Steel	Al. Alloy	Steel	Core	Cond.
	%	mm2	mm2	mm2	No.	No.	mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	18.6	3.10	21.7	6	1	1.99	1.99	1.99	5.96	75.1	9.67	1.7934
25	17	29.0	4.84	33.9	6	1	2.48	2.48	2.48	7.45	117.3	14.96	1.1478
40	17	46.5	7.75	54.2	6	1	3.14	3.14	3.14	9.42	187.7	23.63	0.7174
63	17	73.2	12.2	85.4	6	1	3.94	3.94	3.94	11.8	295.6	36.48	0.4555
100	6	116	6.46	123	18	1	2.87	2.87	2.87	14.3	369.9	45.12	0.2880
125	6	145	8.07	153	18	1	3.21	3.21	3.21	16.0	462.3	56.08	0.2304
125	16	145	23.7	169	26	7	2.67	2.07	6.22	16.9	585.4	74.88	0.2310
160	6	186	10.3	196	18	1	3.63	3.63	3.63	18.1	591.8	69.92	0.1800
160	16	186	30.3	216	26	7	3.02	2.35	7.04	19.1	749.4	94.94	0.1805
200	6	232	12.9	245	18	1	4.05	4.05	4.05	20.3	739.8	87.40	0.1440
200	16	232	37.8	270	26	7	3.37	2.62	7.87	21.4	936.7	118.67	0.1444
250	10	290	28.5	319	22	7	4.10	2.28	6.83	23.2	1023.2	124.02	0.1154
250	16	290	47.3	338	26	7	3.77	2.93	8.80	23.9	1170.9	145.43	0.1155
315	7	366	25.3	391	45	7	3.22	2.15	6.44	25.7	1207.9	148.56	0.0917
315	16	366	59.6	426	26	7	4.23	3.29	9.88	26.8	1475.3	180.86	0.0917
400	7	465	32.1	497	45	7	3.63	2.42	7.25	29.0	1533.9	183.03	0.0722
400	13	465	60.2	525	54	7	3.31	3.31	9.93	29.8	1754.9	217.32	0.0723
450	7	523	36.1	559	45	7	3.85	2.56	7.69	30.8	1725.6	205.91	0.0642
450	13	523	67.8	591	54	7	3.51	3.51	10.5	31.6	1974.2	239.26	0.0643
500	7	581	40.2	621	45	7	4.05	2.70	8.11	32.4	1917.3	228.79	0.0578
500	13	581	75.3	656	54	7	3.70	3.70	11.1	33.3	2193.6	265.84	0.0578
560	7	651	45.0	696	45	7	4.29	2.86	8.58	34.3	2147.4	256.24	0.0516
560	13	651	82.4	733	54	19	3.92	2.35	11.8	35.3	2444.0	298.92	0.0516
630	4	732	31.6	764	72	7	3.60	2.40	7.20	36.0	2269.4	266.64	0.0459
630	13	732	92.7	825	54	19	4.15	2.49	12.5	37.4	2749.5	336.28	0.0459
710	4	825	35.6	861	72	7	3.82	2.55	7.64	38.2	2557.6	300.50	0.0407
710	13	825	104	929	54	19	4.41	2.65	13.2	39.7	3098.6	378.98	0.0407
800	4	930	40.2	970	72	7	4.05	2.70	8.11	40.5	2881.8	338.59	0.0361
800	8	930	77.5	1007	84	7	3.75	3.75	11.3	41.3	3175.1	378.01	0.0362
900	4	1046	45.2	1091	72	7	4.30	2.87	8.60	43.0	3242.0	380.91	0.0321
900	8	1046	87.1	1133	84	7	3.98	3.98	11.9	43.8	3572.0	425.26	0.0322
1000	8	1162	94.6	1257	84	19	4.20	2.52	12.6	46.2	3954.1	473.86	0.0289
1120	8	1301	106	1407	84	19	4.44	2.66	13.3	48.9	4428.6	530.72	0.0258

AACSR-A3/S3A
Code Number	Steel Ratio	Areas			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	Max. DC Resistance at 20℃
		Areas			Number of Wires		Wire Diameter		Diameter
		Al. Alloy	Steel	Total	Al. Alloy	Steel	Al. Alloy	Steel	Core	Cond.
	%	mm2	mm2	mm2	No.	No.	mm	mm	mm	mm	kg/km	kN	Ω/km
16	17	18.6	3.10	21.7	6	1	1.99	1.99	1.99	5.96	75.1	10.53	1.7934
25	17	29.0	4.84	33.9	6	1	2.48	2.48	2.48	7.45	117.3	16.27	1.1478
40	17	46.5	7.75	54.2	6	1	3.14	3.14	3.14	9.42	187.7	25.79	0.7174
63	17	73.2	12.2	85.4	6	1	3.94	3.94	3.94	11.8	295.6	39.41	0.4555
100	6	116	6.46	123	18	1	2.87	2.87	2.87	14.3	369.9	46.86	0.2880
125	6	145	8.07	153	18	1	3.21	3.21	3.21	16.0	462.3	58.34	0.2304
125	16	145	23.7	169	26	7	2.67	2.07	6.22	16.9	585.4	81.50	0.2310
160	6	186	10.3	196	18	1	3.63	3.63	3.63	18.1	591.8	72.40	0.1800
160	16	186	30.3	216	26	7	3.02	2.35	7.04	19.1	749.4	103.11	0.1805
200	6	232	12.9	245	18	1	4.05	4.05	4.05	20.3	739.8	90.50	0.1440
200	16	232	37.8	270	26	7	3.37	2.62	7.87	21.4	936.7	128.89	0.1444
250	10	290	28.5	319	22	7	4.10	2.28	6.83	23.2	1023.2	131.72	0.1154
250	16	290	47.3	338	26	7	3.77	2.93	8.80	23.9	1170.9	158.21	0.1155
315	7	366	25.3	391	45	7	3.22	2.15	6.44	25.7	1207.9	155.64	0.0917
315	16	366	59.6	426	26	7	4.23	3.29	9.88	26.8	1475.3	197.55	0.0917
400	7	465	32.1	497	45	7	3.63	2.42	7.25	29.0	1533.9	191.71	0.0722
400	13	465	60.2	525	54	7	3.31	3.31	9.93	29.8	1754.9	234.19	0.0723
450	7	523	36.1	559	45	7	3.85	2.56	7.69	30.8	1725.6	215.67	0.0642
450	13	523	67.8	591	54	7	3.51	3.51	10.5	31.6	1974.2	255.52	0.0643
500	7	581	40.2	621	45	7	4.05	2.70	8.11	32.4	1917.3	239.63	0.0578
500	13	581	75.3	656	54	7	3.70	3.70	11.1	33.3	2193.6	283.91	0.0578
560	7	651	45.0	696	45	7	4.29	2.86	8.58	34.3	2147.4	268.39	0.0516
560	13	651	82.4	733	54	19	3.92	2.35	11.8	35.3	2444.0	321.17	0.0516
630	4	732	31.6	764	72	7	3.60	2.40	7.20	36.0	2269.4	275.18	0.0459
630	13	732	92.7	825	54	19	4.15	2.49	12.5	37.4	2749.5	361.32	0.0459
710	4	825	35.6	861	72	7	3.82	2.55	7.64	38.2	2557.6	310.12	0.0407
710	13	825	104	929	54	19	4.41	2.65	13.2	39.7	3098.6	407.20	0.0407
800	4	930	40.2	970	72	7	4.05	2.70	8.11	40.5	2881.8	349.43	0.0361
800	8	930	77.5	1007	84	7	3.75	3.75	11.3	41.3	3175.1	396.60	0.0362
900	4	1046	45.2	1091	72	7	4.30	2.87	8.60	43.0	3242.0	393.11	0.0321
900	8	1046	87.1	1133	84	7	3.98	3.98	11.9	43.8	3572.0	446.17	0.0322
1000	8	1162	94.6	1257	84	19	4.20	2.52	12.6	46.2	3954.1	499.40	0.0289
1120	8	1301	106	1407	84	19	4.44	2.66	13.3	48.9	4428.6	559.33	0.0258

get in touch

Huili Cable Co., Ltd. (formerly Luohe Huili Cable Co., Ltd. and Luohe Cable Factory) was founded in 1989 and was renamed Huili Cable Co., Ltd. on September 14, 2024. The company's registered capital is RMB 200 million.

Related Products

ACSR-Aluminum Conductor Steel Reinforced

Aluminium Conductor Steel Reinforced (ACSR) consists of a solid or stranded steel core in the centre, and concentrically stranded aluminum wires in external layers. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

Learn More+

0.6-1KV Aerial Bundled Cable(NFC)

The ABC cable provides a higher level of safety and reliability, lower power losses, and called economic design by reducing installation, maintenance, and operative cost.

Learn More+
