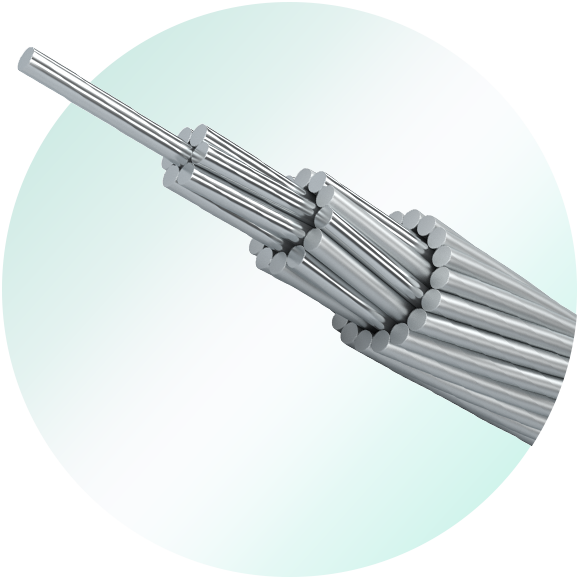

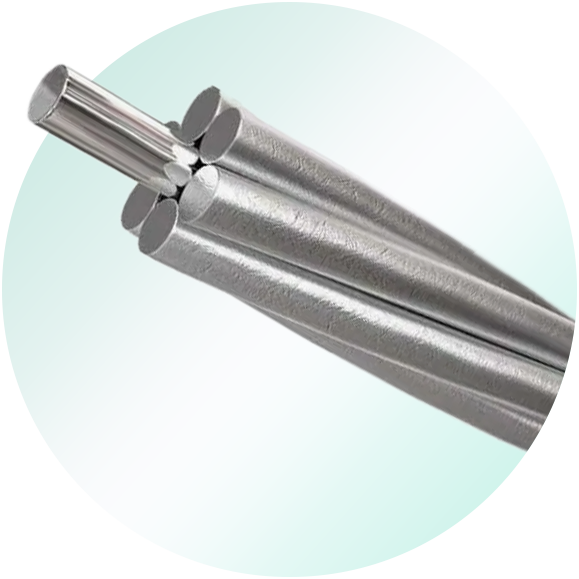

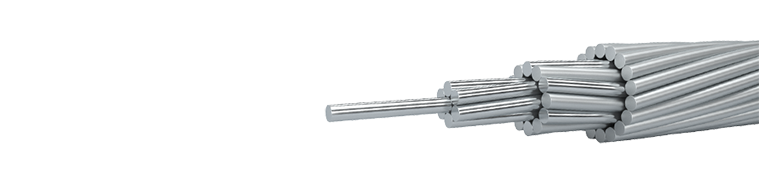

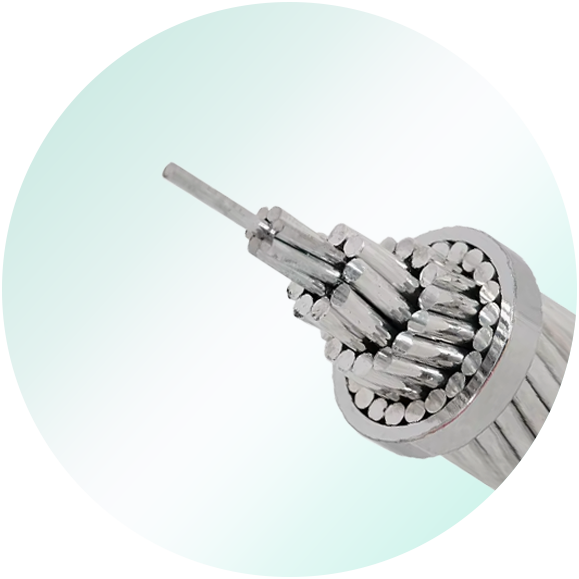

ACAR-Aluminum Conductor Aluminum Alloy Reinforced

ACAR-Aluminum Conductor Aluminum Alloy Reinforced

The aluminum conductor alloy reinforced(ACAR) is made up of aluminum 1350--H19 wires, concentrically stranded around an aluminum alloy 6201 core.

Send E-mail Inquiry Now

Application Construction Characteristics Parameter Related Products

APPLICATION

ACAR is a bare overhead conductor used as transmission cable and as primary and secondary distribution cable. A good strength-to-weight ratio makes ACAR applicable where both ampacity and strength are prime considerations in line design; for equal weight, ACAR offers higher stength and ampacity than ACSR.

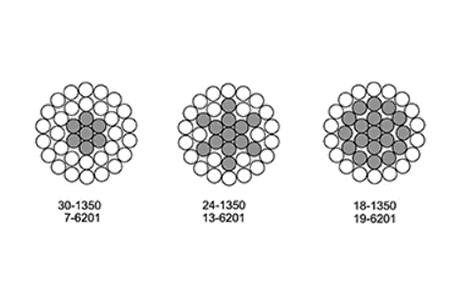

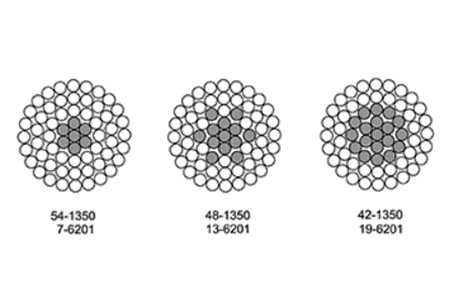

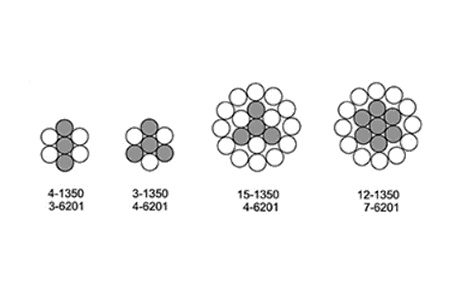

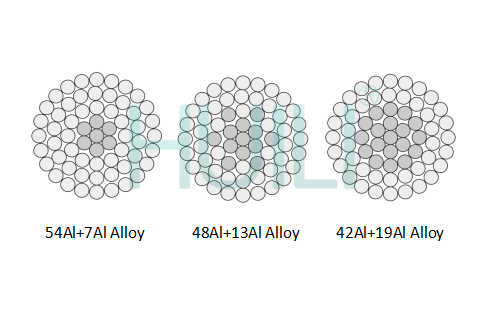

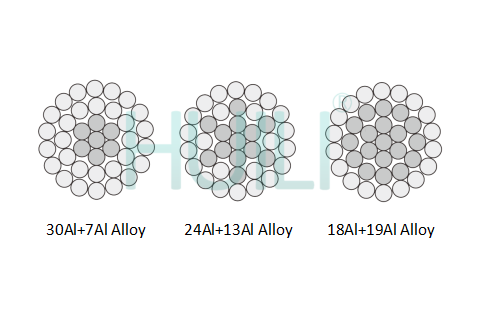

Construction

ACAR-Aluminum-Conductor-Aluminum-Alloy-Reinforced-18

The aluminum conductor alloy reinforced(ACAR) is made up of aluminum 1350--H19 wires, concentrically stranded around an aluminum alloy 6201 core.

CHARACTERISTICS

The characteristic of ACAR conductor is to adapt to high altitude, rainy years, cold conditions, and is suitable for the construction of power transmission in mountainous areas. It has high current carrying capacity and better corrosion performance. And the conductor is also mainly used for electric distribution lines with little span, less stress.

STANDARD

ASTM B 524

Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Alloy Reinforced (ACAR, 1350/6201)
IEC 61089

Round wire concentric lay overhead electrical stranded conductors
GB/T 1179

Round wire concentric lay overhead electrical stranded conductors

Product parameters

Conductor Size		Stranding and Wire Diameter				Nominal Outside Diameter	Mass per Unit Length	Rated strength	Max. DC Resistance at 20℃
MCM(AWG)	mm2	Aluminium 1350		Alloy 6201		Nominal Outside Diameter	Mass per Unit Length	Rated strength	Max. DC Resistance at 20℃
MCM(AWG)	mm2	No.	mm	No.	mm	mm	kg/km	kN	Ω/km
30.58	15.5	4	1.679	3	1.679	5.03	42.6	3.67	1.9783
4	21.2	4	1.961	3	1.961	5.89	58.0	4.97	1.4503
48.69	24.7	4	2.118	3	2.118	6.35	67.8	5.76	1.2432
2	33.6	4	2.474	3	2.474	7.42	92.4	7.79	0.9112
77.47	39.3	4	2.672	3	2.672	8.03	108	8.94	0.7811
1/0	53.5	4	3.119	3	3.119	9.35	147	12.0	0.5733
123.3	62.5	4	3.371	3	3.371	10.11	171	13.65	0.4908
2/0	67.4	4	3.503	3	3.503	10.52	185	14.7	0.4545
155.4	78.7	4	3.785	3	3.785	11.35	216	17.1	0.3893
3/0	85.0	4	3.932	3	3.932	11.80	234	18.3	0.3607
195.7	99.1	4	4.247	3	4.247	12.74	272	21.3	0.3092
4/0	107	4	4.417	3	4.417	13.25	294	23.0	0.2859
246.9	125	4	4.770	3	4.770	14.31	344	26.9	0.2451
250	127	15	2.913	4	2.913	14.56	348	24.4	0.2346
250	127	12	2.913	7	2.913	14.56	348	27.6	0.2400
300	152	15	3.193	4	3.193	15.96	418	28.9	0.1952
300	152	12	3.193	7	3.193	15.96	418	32.8	0.1998
350	177	15	3.447	4	3.447	17.24	487	33.2	0.1675
350	177	12	3.447	7	3.447	17.24	487	37.4	0.1714
400	203	15	3.685	4	3.685	18.42	557	37.5	0.1466
400	203	12	3.685	7	3.685	18.42	556	42.4	0.1500
450	228	15	3.909	4	3.909	19.54	627	41.6	0.1303
450	228	12	3.909	7	3.909	19.54	626	47.2	0.1333
500	253	15	4.120	4	4.120	20.60	696	46.2	0.1173
500	253	12	4.120	7	4.120	20.60	696	52.4	0.1200
500	253	33	2.951	4	2.951	20.66	696	44.4	0.1157
500	253	30	2.951	7	2.951	20.66	696	48.0	0.1170
500	253	18	2.951	19	2.951	20.66	695	58.8	0.1227
503.6	255	15	4.135	4	4.135	20.68	703	46.5	0.1164
550	279	15	4.321	4	4.321	21.60	767	50.8	0.1066
550	279	12	4.321	7	4.321	21.60	764	57.6	0.1091
550	279	33	3.096	4	3.096	21.67	767	48.1	0.1051
550	279	30	3.096	7	3.096	21.67	766	52.1	0.1063
550	279	24	3.096	13	3.096	21.67	765	57.6	0.1088
550	279	18	3.096	19	3.096	21.67	765	64.3	0.1115
587.2	298	15	4.465	4	4.465	22.33	820	54.3	0.0998
600	304	15	4.513	4	4.513	22.56	836	55.4	0.0977
600	304	12	4.513	7	4.513	22.56	835	62.9	0.1000
600	304	33	3.233	4	3.233	22.63	835	52.4	0.0964
600	304	30	3.233	7	3.233	22.63	836	56.8	0.0975
600	304	24	3.233	13	3.233	22.63	834	62.8	0.0998
600	304	18	3.233	19	3.233	22.63	833	70.1	0.1022
649.5	329	18	3.365	19	3.365	23.56	905	73.8	0.0944
650	329	33	3.366	4	3.366	23.56	905	56.3	0.0889
650	329	30	3.366	7	3.366	23.56	906	60.8	0.0899
650	329	24	3.366	13	3.366	23.56	905	66.6	0.0921
650	329	18	3.366	19	3.366	23.56	903	73.8	0.0943
653.1	331	12	4.709	7	4.709	23.55	911	68.5	0.0918
700	355	33	3.493	4	3.493	24.45	975	60.7	0.0826
700	355	30	3.493	7	3.493	24.45	975	65.5	0.0835
700	355	24	3.493	13	3.493	24.45	973	71.8	0.0855
700	355	18	3.493	19	3.493	24.45	973	79.5	0.0876
739.8	375	18	3.592	19	3.592	25.14	1031	83.5	0.0828
750	380	33	3.617	4	3.617	25.32	1045	64.0	0.0770
750	380	30	3.617	7	3.617	25.32	1045	69.2	0.0779
750	380	24	3.617	13	3.617	25.32	1045	76.2	0.0797
750	380	18	3.617	19	3.617	25.32	1043	84.7	0.0817
800	405	33	3.734	4	3.734	26.14	1114	68.2	0.0722
800	405	30	3.734	7	3.734	26.14	1114	73.8	0.0731
800	405	24	3.734	13	3.734	26.14	1113	81.2	0.0748
800	405	18	3.734	19	3.734	26.14	1113	90.3	0.0766
850	431	33	3.851	4	3.851	26.96	1185	71.3	0.0679
850	431	30	3.851	7	3.851	26.96	1185	77.3	0.0687
850	431	24	3.851	13	3.851	26.96	1184	85.4	0.0703
850	431	18	3.851	19	3.851	26.96	1183	95.3	0.0721
853.7	433	24	3.858	13	3.858	27.01	1191	85.8	0.0701
853.7	433	30	3.858	7	3.858	27.01	1192	77.6	0.0685
900	456	33	3.962	4	3.962	27.73	1255	75.5	0.0642
900	456	30	3.962	7	3.962	27.73	1254	81.9	0.0649
900	456	24	3.962	13	3.962	27.73	1253	90.5	0.0665
900	456	18	3.962	19	3.962	27.73	1253	101	0.0681
927.2	470	24	4.021	13	4.021	28.15	1294	93.2	0.0645
950	481	33	4.069	4	4.069	28.48	1323	79.7	0.0608
950	481	30	4.069	7	4.069	28.48	1323	86.4	0.0615
950	481	24	4.069	13	4.069	28.48	1321	95.4	0.0630
950	481	18	4.069	19	4.069	28.48	1321	106	0.0645
1000	507	33	4.176	4	4.176	29.23	1394	83.9	0.0578
1000	507	30	4.176	7	4.176	29.23	1393	91.0	0.0584
1000	507	24	4.176	13	4.176	29.23	1393	101	0.0598
1000	507	18	4.176	19	4.176	29.23	1391	112	0.0613
1000	507	54	3.251	7	3.251	29.26	1393	87.9	0.0579
1000	507	48	3.251	13	3.251	29.26	1393	94.1	0.0587
1000	507	42	3.251	19	3.251	29.26	1391	102	0.0595
1000	507	33	3.251	28	3.251	29.26	1391	110	0.0608
1024.5	519	24	4.227	13	4.227	29.59	1430	103	0.0584
1024.5	519	30	4.227	7	4.227	29.59	1431	93.2	0.0570
1080.6	548	24	4.341	13	4.341	30.39	1508	109	0.0554
1080.6	548	18	4.341	19	4.341	30.39	1506	121	0.0567
1100	557	33	4.379	4	4.379	30.65	1532	92.3	0.0525
1100	557	30	4.379	7	4.379	30.65	1533	100	0.0531
1100	557	24	4.379	13	4.379	30.65	1531	111	0.0544
1100	557	18	4.379	19	4.379	30.65	1530	123	0.0557
1100	557	54	3.411	7	3.411	30.70	1534	95.9	0.0526
1100	557	48	3.411	13	3.411	30.70	1533	102	0.0533
1100	557	42	3.411	19	3.411	30.70	1531	110	0.0541
1100	557	33	3.411	28	3.411	30.70	1531	119	0.0553
1109	562	24	4.397	13	4.397	30.78	1547	111	0.0540
1109	562	30	4.397	7	4.397	30.78	1549	101	0.0527
1172	594	18	4.521	19	4.521	31.64	1634	131	0.0523
1172	594	30	4.521	7	4.521	31.64	1637	107	0.0499
1198	607	24	4.570	13	4.570	31.99	1672	120	0.0499
1198	607	30	4.570	7	4.570	31.99	1673	109	0.0488
1200	608	33	4.575	4	4.575	32.02	1673	101	0.0481
1200	608	30	4.575	7	4.575	32.02	1672	109	0.0487
1200	608	24	4.575	13	4.575	32.02	1671	121	0.0498
1200	608	18	4.575	19	4.575	32.02	1669	135	0.0511
1200	608	54	3.564	7	3.564	32.08	1673	104	0.0481
1200	608	48	3.564	13	3.564	32.08	1673	110	0.0488
1200	608	42	3.564	19	3.564	32.08	1672	119	0.0495
1200	608	33	3.564	28	3.564	32.08	1671	128	0.0506
1250	633	33	4.669	4	4.669	32.70	1742	105	0.0462
1250	633	30	4.669	7	4.669	32.70	1741	114	0.0467
1250	633	24	4.669	13	4.669	32.70	1741	126	0.0479
1250	633	18	4.669	19	4.669	32.70	1738	140	0.0490
1250	633	54	3.635	7	3.635	32.72	1741	107	0.0463
1250	633	48	3.635	13	3.635	32.72	1740	114	0.0469
1250	633	42	3.635	19	3.635	32.72	1739	124	0.0476
1250	633	33	3.635	28	3.635	32.72	1738	133	0.0487
1277	647	42	3.675	19	3.675	33.08	1782	126	0.0466
1277	647	54	3.675	7	3.675	33.08	1784	110	0.0453
1300	659	30	4.760	7	4.760	33.32	1810	118	0.0450
1300	659	24	4.760	13	4.760	33.32	1809	131	0.0460
1300	659	18	4.760	19	4.760	33.32	1808	146	0.0472
1300	659	33	4.760	4	4.760	33.32	1811	109	0.0445
1300	659	54	3.708	7	3.708	33.37	1812	112	0.0445
1300	659	48	3.708	13	3.708	33.37	1811	119	0.0451
1300	659	42	3.708	19	3.708	33.37	1811	129	0.0458
1300	659	33	3.708	28	3.708	33.37	1809	139	0.0468
1361.5	690	54	3.795	7	3.795	34.15	1902	117	0.0425
1400	709	54	3.848	7	3.848	34.63	1952	118	0.0413
1400	709	48	3.848	13	3.848	34.63	1950	126	0.0419
1400	709	42	3.848	19	3.848	34.63	1950	137	0.0425
1400	709	33	3.848	28	3.848	34.63	1948	148	0.0434
1500	760	54	3.983	7	3.983	35.85	2090	127	0.0385
1500	760	48	3.983	13	3.983	35.85	2089	135	0.0391
1500	760	42	3.983	19	3.983	35.85	2089	147	0.0397
1500	760	33	3.983	28	3.983	35.85	2086	159	0.0405
1534.4	777	42	4.028	19	4.028	36.26	2141	150	0.0388
1600	811	54	4.115	7	4.115	37.04	2231	135	0.0361
1600	811	48	4.115	13	4.115	37.04	2230	145	0.0366
1600	811	42	4.115	19	4.115	37.04	2229	157	0.0372
1600	811	33	4.115	28	4.115	37.04	2228	160	0.0380
1700	861	54	4.239	7	4.239	38.15	2369	143	0.0340
1700	861	48	4.239	13	4.239	38.15	2367	153	0.0345
1700	861	42	4.239	19	4.239	38.15	2367	166	0.0350
1700	861	33	4.239	28	4.239	38.15	2364	180	0.0358
1703	863	48	4.244	13	4.244	38.20	2378	154	0.0344
1750	887	54	4.303	7	4.303	38.73	2439	148	0.0330
1750	887	48	4.303	13	4.303	38.73	2437	158	0.0335
1750	887	42	4.303	19	4.303	38.73	2438	171	0.0340
1750	887	33	4.303	28	4.303	38.73	2436	186	0.0347
1798	911	42	4.361	19	4.361	39.25	2509	176	0.0331
1800	912	54	4.364	7	4.364	39.28	2510	152	0.0321
1800	912	48	4.364	13	4.364	39.28	2508	163	0.0326
1800	912	42	4.364	19	4.364	39.28	2507	176	0.0330
1800	912	33	4.364	28	4.364	39.28	2505	191	0.0338
1900	963	54	4.483	7	4.483	40.35	2649	160	0.0304
1900	963	48	4.483	13	4.483	40.35	2648	172	0.0309
1900	963	42	4.483	19	4.483	40.35	2646	186	0.0313
1900	963	33	4.483	28	4.483	40.35	2644	201	0.0320
1933	979	42	4.522	19	4.522	40.69	2698	189	0.0308
2000	1013	54	4.600	7	4.600	41.40	2788	169	0.0289
2000	1013	48	4.600	13	4.600	41.40	2788	181	0.0293
2000	1013	42	4.600	19	4.600	41.40	2786	196	0.0297
2000	1013	33	4.600	28	4.600	41.40	2783	212	0.0304
2000	1013	72	3.764	19	3.764	41.40	2785	182	0.0293
2000	1013	63	3.764	28	3.764	41.40	2783	193	0.0297
2000	1013	54	3.764	37	3.764	41.40	2784	207	0.0302
2250	1140	72	3.993	19	3.993	43.92	3164	202	0.0263
2250	1140	63	3.993	28	3.993	43.92	3163	215	0.0267
2250	1140	54	3.993	37	3.993	43.92	3159	231	0.0271
2338	1185	42	4.973	19	4.973	44.75	3295	229	0.0257
2338	1185	48	4.973	13	4.973	44.75	3297	211	0.0253
2493	1263	54	4.204	37	4.204	46.25	3512	256	0.0244
2493	1263	72	4.204	19	4.204	46.25	3515	224	0.0237
2500	1267	72	4.209	19	4.209	46.30	3515	225	0.0237
2500	1267	63	4.209	28	4.209	46.30	3516	239	0.0240
2500	1267	54	4.209	37	4.209	46.30	3508	257	0.0244
2750	1393	72	4.415	19	4.415	48.56	3871	247	0.0215
2750	1393	63	4.415	28	4.415	48.56	3860	263	0.0218
2750	1393	54	4.415	37	4.415	48.56	3867	282	0.0222
3000	1520	72	4.613	19	4.613	50.74	4221	270	0.0197
3000	1520	63	4.613	28	4.613	50.74	4216	287	0.0200
3000	1520	54	4.613	37	4.613	50.74	4218	308	0.0203

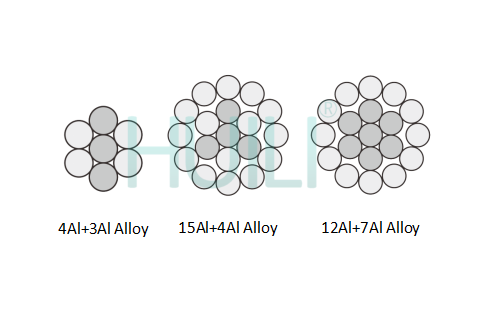

ACAR-A1/A2
Code Number	Diameter		Number of Wires		Areas			Linear Mass	Rated Strength	Max. DC Resistance at 20℃
	Wire	Cond.	Al	Alloy	Al	Alloy	Total	Linear Mass	Rated Strength	Max. DC Resistance at 20℃
	mm	mm	No.	No.	mm2	mm2	mm2	kg/km	kN	Ω/km
16	1.76	5.28	4	3	9.73	7.30	17.0	46.6	3.85	1.7896
25	2.20	6.60	4	3	15.2	11.4	26.6	72.8	5.93	1.1453
40	2.78	8.35	4	3	24.3	18.3	42.6	116.5	9.25	0.7158
63	3.49	10.5	4	3	38.3	28.7	67.1	183.5	14.38	0.4545
100	4.40	13.2	4	3	60.8	45.6	106	291.2	22.52	0.2863
125	2.97	14.9	12	7	83.3	48.6	132	362.7	27.79	0.2302
160	3.36	16.8	12	7	107	62.2	169	464.2	35.04	0.1798
200	3.76	18.8	12	7	133	77.8	211	580.3	43.13	0.1439
250	4.21	21.0	12	7	167	97.2	264	725.3	53.92	0.1151
250	3.04	21.3	18	19	131	138	269	742.2	60.39	0.1154
315	3.34	23.4	30	7	263	61.3	324	892.6	60.52	0.0916
315	3.42	23.9	18	19	165	174	339	935.1	76.09	0.0916
400	3.76	26.3	30	7	334	77.8	411	1133.5	75.19	0.0721
400	3.85	27.0	18	19	210	221	431	1187.5	95.58	0.0721
450	3.99	27.9	30	7	375	87.6	463	1275.2	84.59	0.0641
450	4.08	28.6	18	19	236	249	485	1335.9	107.52	0.0641
500	4.21	29.4	30	7	417	97.3	514	1416.9	93.98	0.0577
500	4.31	30.1	18	19	262	277	539	1484.3	119.47	0.0577
560	4.45	31.2	30	7	467	109	576	1586.9	105.26	0.0515
560	3.45	31.0	54	7	504	65.4	570	1571.9	101.54	0.0516
630	3.71	33.4	42	19	454	205	660	1820.0	130.25	0.0458
630	3.79	34.1	24	37	271	417	688	1897.5	160.19	0.0458
710	3.94	35.5	42	19	512	232	743	2051.2	146.78	0.0407
710	4.02	36.2	24	37	305	470	775	2138.4	180.53	0.0407
800	4.18	37.6	42	19	577	261	838	2311.2	165.39	0.0361
800	4.27	38.4	24	37	344	530	873	2409.5	203.41	0.0361
900	4.43	39.9	42	19	649	294	942	2600.1	186.06	0.0321
900	3.66	40.2	54	37	567	388	955	2638.4	199.54	0.0321
1000	3.80	41.8	72	19	816	215	1032	2849.1	190.94	0.0289
1000	3.85	42.4	54	37	630	432	1061	2931.6	221.71	0.0289
1120	4.02	44.2	72	19	914	241	1155	3191.0	213.85	0.0258
1120	4.08	44.9	54	37	705	483	1189	3283.4	248.32	0.0258
1250	4.25	46.7	72	19	1020	269	1289	3561.4	238.68	0.0231
1250	4.31	47.4	54	37	787	539	1327	3664.5	277.14	0.0231
1400	4.50	49.4	72	19	1143	302	1444	3988.8	267.32	0.0207

ACAR-A1/A3
Code Number	Diameter		Number of Wires		Areas			Linear Mass	Rated Strength	Max. DC Resistance at 20℃
	Wire	Cond.	Al	Alloy	Al	Alloy	Total	Linear Mass	Rated Strength	Max. DC Resistance at 20℃
	mm	mm	No.	No.	mm2	mm2	mm2	kg/km	kN	Ω/km
16	1.76	5.29	4	3	9.78	7.33	17.1	46.8	4.07	1.7896
25	2.21	6.62	4	3	15.3	11.5	26.7	73.1	6.29	1.1453
40	2.79	8.37	4	3	24.4	18.3	42.8	117.0	9.82	0.7158
63	3.50	10.5	4	3	38.5	28.9	67.4	184.3	14.80	0.4545
100	4.41	13.2	4	3	61.1	45.8	107	292.5	23.49	0.2863
125	2.98	14.9	12	7	83.7	48.8	132	364.1	29.29	0.2302
160	3.37	16.9	12	7	107	62.5	170	466.0	36.95	0.1798
200	3.77	18.8	12	7	134	78.1	212	582.5	44.78	0.1439
250	4.21	21.1	12	7	167	97.6	265	728.1	55.98	0.1151
250	3.05	21.4	18	19	132	139	271	746.0	64.67	0.1154
315	3.34	23.4	30	7	263	61.4	325	894.4	62.40	0.0916
315	3.43	24.0	18	19	166	175	341	940.0	81.48	0.0916
400	3.77	26.4	30	7	334	78.0	412	1135.8	76.82	0.0721
400	3.86	27.0	18	19	211	222	433	1193.7	100.30	0.0721
450	3.99	28.0	30	7	376	87.7	464	1277.8	86.42	0.0641
450	4.10	28.7	18	19	237	250	487	1342.9	112.84	0.0641
500	4.21	29.5	30	7	418	97.5	515	1419.8	96.03	0.0577
500	4.32	30.2	18	19	263	278	542	1492.1	125.38	0.0577
560	4.46	31.2	30	7	468	109	577	1590.1	107.55	0.0515
560	3.45	31.1	54	7	505	65.5	570	1573.9	103.53	0.0516
630	3.72	33.4	42	19	456	206	662	1826.0	134.59	0.0458
630	3.80	34.2	24	37	272	420	692	1909.0	169.14	0.0458
710	3.95	35.5	42	19	514	232	746	2057.8	151.68	0.0407
710	4.03	36.3	24	37	307	473	780	2151.4	190.61	0.0407
800	4.19	37.7	42	19	579	262	840	2318.7	170.90	0.0361
800	4.28	38.5	24	37	346	533	879	2424.2	214.78	0.0361
900	4.44	40.0	42	19	651	294	945	2608.5	192.27	0.0321
900	3.66	40.3	54	37	569	390	959	2649.5	207.79	0.0321
1000	3.80	41.8	72	19	818	216	1034	2855.4	195.47	0.0289
1000	3.86	42.5	54	37	632	433	1066	2943.9	230.88	0.0289
1120	4.02	44.3	72	19	916	242	1158	3198.1	218.92	0.0258
1120	4.09	45.0	54	37	708	485	1194	3297.2	258.58	0.0258
1250	4.25	46.8	72	19	1022	270	1292	3569.3	244.33	0.0231
1250	4.32	47.5	54	37	791	542	1332	3679.9	288.60	0.0231
1400	4.50	49.5	72	19	1145	302	1447	3997.6	273.65	0.0207

get in touch

Huili Cable Co., Ltd. (formerly Luohe Huili Cable Co., Ltd. and Luohe Cable Factory) was founded in 1989 and was renamed Huili Cable Co., Ltd. on September 14, 2024. The company's registered capital is RMB 200 million.

Related Products

ACSR-Aluminum Conductor Steel Reinforced

Aluminium Conductor Steel Reinforced (ACSR) consists of a solid or stranded steel core in the centre, and concentrically stranded aluminum wires in external layers. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

Learn More+

AAC-All Aluminum Conductor

All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage.

Learn More+

AAAC-All Aluminum Alloy Conductor

All Aluminum Alloy Conductor (AAAC) is a concentric-lay-stranded conductor made out of high strength aluminum magnesium-silicon alloy.

Learn More+
