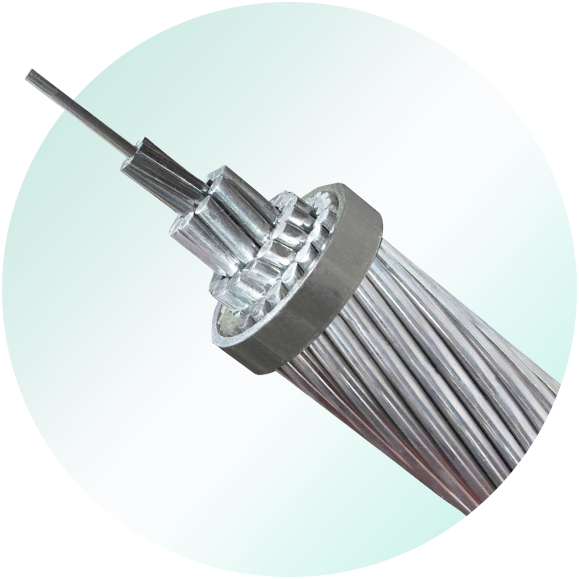

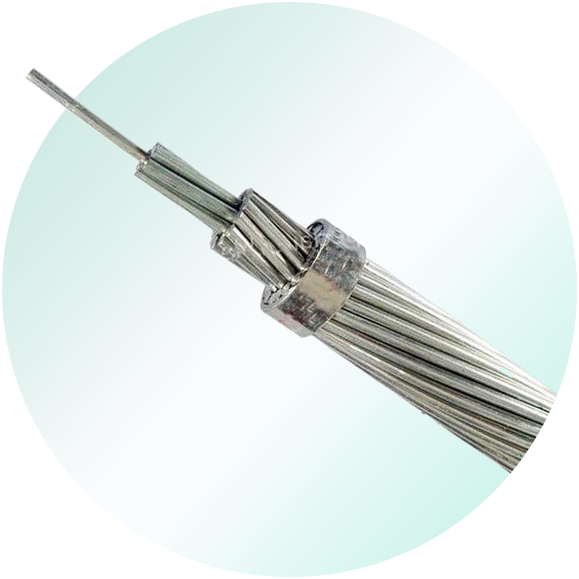

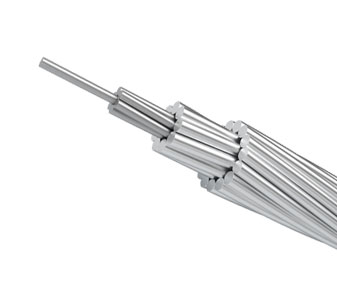

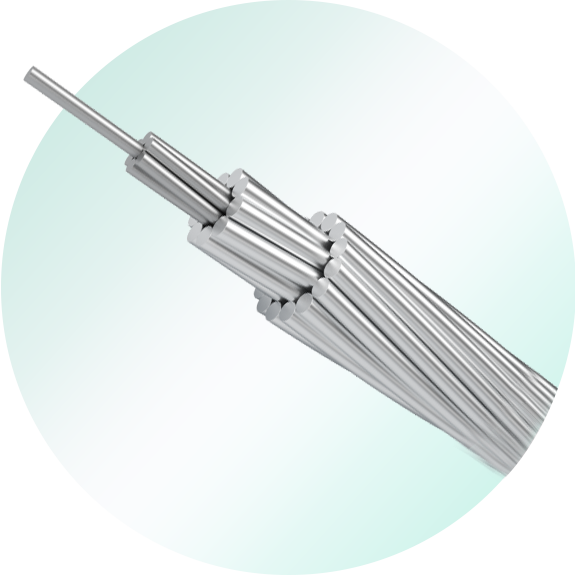

Aluminium Conductor Steel Reinforced (ACSR) consists of a solid or stranded steel core in the centre, and concentrically stranded aluminum wires in external layers.
Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
ACSR is used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Aluminium Conductor Steel Reinforced (ACSR) consists of a solid or stranded steel core in the centre, and concentrically stranded aluminum wires in external layers.
ACSR has the characteristics of simple structure, easy installation and maintenance, low line cost, large transmission capacity, and is conducive to laying under special geographical conditions such as crossing rivers and valleys. It also has good conductivity and sufficient mechanical strength, high tensile strength,and installations involving extra long spans.
Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced
Conductors for overhead lines — Round wire concentric lay stranded conductors
Aluminium Conductors and Aluminium Conductors, Steel-reinforced — For Overhead Power Transmission — Part 2: Aluminium Conductors, Steel-reinforced
Steel reinforced aluminium stranded conductors
Bare overhead - Aluminium and aluminium alloy-Steel reinforced

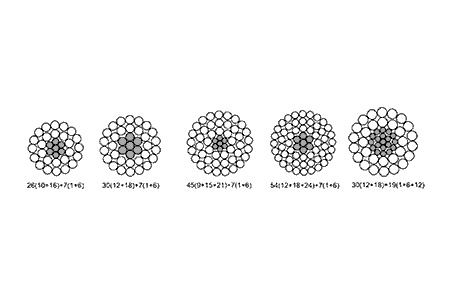

Round wire concentric lay overhead electrical stranded conductors
Round wire concentric lay overhead electrical stranded conductors

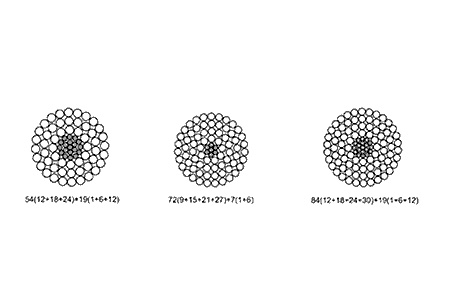

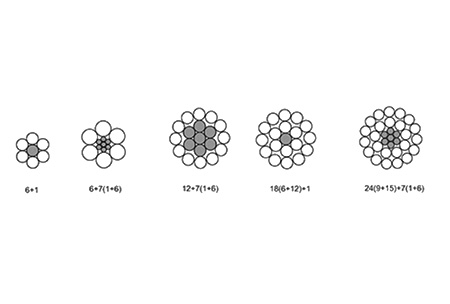

| Code Name | Areas | Stranding and Wire Diameter | Approx. Overall Diameter | Unit Weight | Nominal Breaking Load | Nominal DC Resistance at 20℃ | ||||
| Nominal | Al | Steel | Total | Al | Steel | Total | ||||
| AWG or MCM | mm2 | mm2 | mm2 | No./mm | No./mm | mm | kg/km | kN | Ohm/km | |

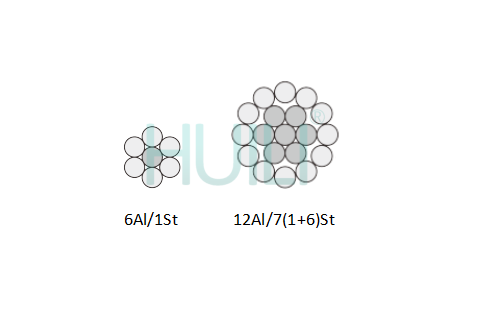

| TURKEY | 6 | 13.30 | 2.21 | 15.50 | 6/1.68 | 1/1.68 | 5.04 | 54 | 5.27 | 2.1577 |
| THRUSH | 5 | 16.77 | 2.80 | 19.56 | 6/1.89 | 1/1.89 | 5.67 | 68 | 6.61 | 1.7111 |
| SWAN | 4 | 21.15 | 3.52 | 24.67 | 6/2.12 | 1/2.12 | 6.36 | 85 | 8.25 | 1.3565 |
| SWANATE | 4 | 21.15 | 5.37 | 26.51 | 7/1.96 | 1/2.61 | 6.53 | 100 | 10.48 | 1.3565 |
| SPARROW | 2 | 33.62 | 5.61 | 39.23 | 6/2.67 | 1/2.67 | 8.01 | 136 | 12.66 | 0.8532 |
| SPARATE | 2 | 33.62 | 8.55 | 42.17 | 7/2.47 | 1/3.30 | 8.24 | 159 | 16.17 | 0.8532 |
| ROBIN | 1 | 42.41 | 7.07 | 49.47 | 6/3.00 | 1/3.00 | 9.00 | 171 | 15.77 | 0.6765 |
| RAVEN | 1/0 | 53.51 | 8.92 | 62.43 | 6/3.37 | 1/3.37 | 10.11 | 216 | 19.46 | 0.5362 |
| QUAIL | 2/0 | 67.44 | 11.23 | 78.68 | 6/3.78 | 1/3.78 | 11.34 | 273 | 23.55 | 0.4254 |
| PIGEON | 3/0 | 85.02 | 14.17 | 99.19 | 6/4.25 | 1/4.25 | 12.75 | 343 | 29.43 | 0.3374 |
| PENGUIN | 4/0 | 107.22 | 17.87 | 125.09 | 6/4.77 | 1/4.77 | 14.31 | 433 | 37.12 | 0.2676 |

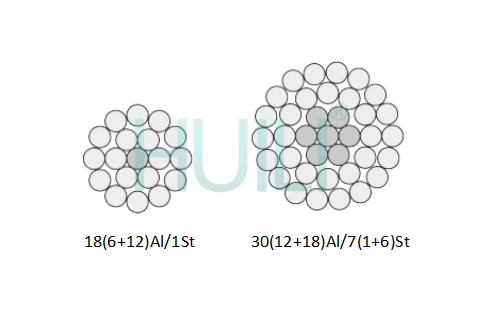

| WAXWING | 266.8 | 135.19 | 7.50 | 142.69 | 18/3.09 | 1/3.09 | 15.45 | 431 | 30.58 | 0.2133 |
| PARTRIDGE | 266.8 | 135.19 | 22.02 | 157.21 | 26/2.57 | 7/2.00 | 16.28 | 546 | 50.24 | 0.2092 |
| OSTRICH | 300 | 152.01 | 24.73 | 176.74 | 26/2.73 | 7/2.12 | 17.28 | 614 | 56.47 | 0.1860 |
| MERLIN | 336.4 | 170.45 | 9.47 | 179.92 | 18/3.47 | 1/3.47 | 17.35 | 544 | 38.59 | 0.1691 |
| LINNET | 336.4 | 170.45 | 27.72 | 198.17 | 26/2.89 | 7/2.25 | 18.31 | 689 | 62.70 | 0.1659 |
| ORIOLE | 336.4 | 170.45 | 39.78 | 210.23 | 30/2.69 | 7/2.69 | 18.83 | 784 | 76.93 | 0.1642 |
| CHICKADEE | 397.5 | 201.41 | 11.19 | 212.60 | 18/3.77 | 1/3.77 | 18.85 | 642 | 44.19 | 0.1431 |
| BRANT | 397.5 | 201.41 | 26.11 | 227.52 | 24/3.27 | 7/2.18 | 19.61 | 762 | 64.92 | 0.1411 |
| IBIS | 397.5 | 201.41 | 32.76 | 234.17 | 26/3.14 | 7/2.44 | 19.88 | 814 | 72.48 | 0.1404 |
| LARK | 397.5 | 201.41 | 46.99 | 248.40 | 30/2.92 | 7/2.92 | 20.44 | 927 | 90.27 | 0.1393 |
| PELICAN | 477 | 241.70 | 13.43 | 255.13 | 18/4.14 | 1/4.14 | 20.70 | 771 | 52.47 | 0.1193 |
| FLICKER | 477 | 241.70 | 31.34 | 273.04 | 24/3.58 | 7/2.39 | 21.49 | 915 | 76.49 | 0.1176 |
| HAWK | 477 | 241.70 | 39.33 | 281.02 | 26/3.44 | 7/2.67 | 21.79 | 978 | 86.72 | 0.1170 |
| HEN | 477 | 241.70 | 56.40 | 298.10 | 30/3.20 | 7/3.20 | 22.40 | 1112 | 105.84 | 0.1161 |
| OSPREY | 556.5 | 281.98 | 15.66 | 297.64 | 18/4.47 | 1/4.47 | 22.35 | 899 | 60.92 | 0.1022 |
| PARAKEET | 556.5 | 281.98 | 36.54 | 318.52 | 24/3.87 | 7/2.58 | 23.22 | 1067 | 88.05 | 0.1008 |
| DOVE | 556.5 | 281.98 | 45.93 | 327.91 | 26/3.72 | 7/2.89 | 23.55 | 1140 | 100.50 | 0.1003 |
| EAGLE | 556.5 | 281.98 | 65.80 | 347.78 | 30/3.46 | 7/3.46 | 24.21 | 1298 | 123.63 | 0.0995 |
| PEACOCK | 605 | 306.55 | 39.78 | 346.33 | 24/4.03 | 7/2.69 | 24.20 | 1160 | 96.06 | 0.0927 |
| SQUAB | 605 | 306.55 | 49.89 | 356.44 | 26/3.87 | 7/3.01 | 24.51 | 1240 | 108.07 | 0.0922 |
| WOOD DUCK | 605 | 306.55 | 71.52 | 378.07 | 30/3.61 | 7/3.61 | 25.25 | 1411 | 128.53 | 0.0915 |
| TEAL | 605 | 306.55 | 69.89 | 376.44 | 30/3.61 | 19/2.16 | 25.24 | 1399 | 133.42 | 0.0916 |
| KINGBIRD | 636 | 322.26 | 17.91 | 340.17 | 18/4.78 | 1/4.78 | 23.88 | 1028 | 69.81 | 0.0895 |
| SWIFT | 636 | 322.26 | 8.95 | 331.21 | 36/3.38 | 1/3.38 | 23.62 | 958 | 61.36 | 0.0895 |
| ROOK | 636 | 322.26 | 41.76 | 364.02 | 24/4.14 | 7/2.76 | 24.84 | 1219 | 100.50 | 0.0882 |
| GROSBEAK | 636 | 322.26 | 52.45 | 374.71 | 26/3.97 | 7/3.09 | 25.15 | 1302 | 112.07 | 0.0877 |
| SCOTER | 636 | 322.26 | 75.19 | 397.45 | 30/3.70 | 7/3.70 | 25.88 | 1484 | 135.20 | 0.0871 |
| EGRET | 636 | 322.26 | 73.54 | 395.80 | 30/3.70 | 19/2.22 | 25.90 | 1470 | 140.09 | 0.0871 |
| FLAMINGO | 666.6 | 337.77 | 43.78 | 381.55 | 24/4.23 | 7/2.82 | 25.40 | 1278 | 105.40 | 0.0841 |
| GANNET | 666.6 | 337.77 | 54.98 | 392.74 | 26/4.07 | 7/3.16 | 25.76 | 1365 | 117.41 | 0.0837 |
| STILT | 715.5 | 362.54 | 46.99 | 409.53 | 24/4.39 | 7/2.92 | 26.31 | 1372 | 113.40 | 0.0784 |
| STARLING | 715.5 | 362.54 | 59.02 | 421.57 | 26/4.21 | 7/3.28 | 26.68 | 1466 | 126.30 | 0.0780 |
| REDWING | 715.5 | 362.54 | 82.55 | 445.10 | 30/3.92 | 19/2.35 | 27.43 | 1653 | 153.88 | 0.0774 |
| COOT | 795 | 402.83 | 11.19 | 414.02 | 36/3.77 | 1/3.77 | 26.41 | 1198 | 74.71 | 0.0716 |
| CUCKOO | 795 | 402.83 | 52.19 | 455.02 | 24/4.62 | 7/3.08 | 27.74 | 1524 | 124.08 | 0.0705 |
| DRAKE | 795 | 402.83 | 65.60 | 468.43 | 26/4.44 | 7/3.45 | 28.11 | 1628 | 140.09 | 0.0702 |
| TERN | 795 | 402.83 | 27.84 | 430.67 | 45/3.38 | 7/2.25 | 27.03 | 1333 | 98.28 | 0.0712 |

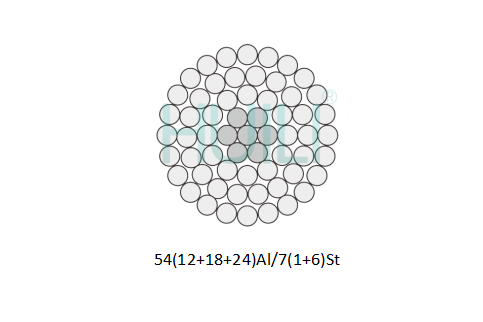

| CONDOR | 795 | 402.83 | 52.19 | 455.02 | 54/3.08 | 7/3.08 | 27.72 | 1524 | 125.41 | 0.0705 |
| MALLARD | 795 | 402.83 | 91.90 | 494.72 | 30/4.14 | 19/2.48 | 28.96 | 1838 | 170.78 | 0.0697 |
| RUDDY | 900 | 456.03 | 31.54 | 487.57 | 45/3.59 | 7/2.40 | 28.73 | 1510 | 108.51 | 0.0629 |
| CANARY | 900 | 456.03 | 59.12 | 515.15 | 54/3.28 | 7/3.28 | 29.52 | 1724 | 141.87 | 0.0623 |
| CATBIRD | 954 | 483.39 | 13.43 | 496.82 | 36/4.14 | 1/4.14 | 28.95 | 1438 | 88.05 | 0.0596 |
| RAIL | 954 | 483.39 | 33.44 | 516.83 | 45/3.70 | 7/2.47 | 29.61 | 1601 | 115.18 | 0.0593 |
| CARDINAL | 954 | 483.39 | 62.65 | 546.04 | 54/3.38 | 7/3.38 | 30.42 | 1829 | 150.32 | 0.0588 |
| TANAGER | 1033.5 | 523.67 | 14.54 | 538.22 | 36/4.30 | 1/4.30 | 30.12 | 1556 | 95.17 | 0.0551 |
| ORTOLAN | 1033.5 | 523.67 | 36.18 | 559.86 | 45/3.85 | 7/2.57 | 30.81 | 1734 | 123.19 | 0.0548 |
| CURLEW | 1033.5 | 523.67 | 67.84 | 591.52 | 54/3.51 | 7/3.51 | 31.68 | 1981 | 162.78 | 0.0543 |
| BLUEJAY | 1113 | 563.96 | 39.03 | 602.99 | 45/4.00 | 7/2.66 | 31.98 | 1868 | 132.53 | 0.0508 |
| FINCH | 1113 | 563.96 | 71.54 | 635.49 | 54/3.65 | 19/2.19 | 32.85 | 2130 | 173.90 | 0.0507 |
| BUNTING | 1192.5 | 604.24 | 41.76 | 646.00 | 45/4.14 | 7/2.76 | 33.12 | 2001 | 142.32 | 0.0475 |
| GRACKLE | 1192.5 | 604.24 | 76.60 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 2282 | 186.35 | 0.0473 |
| SKYLARK | 1272 | 644.52 | 17.91 | 662.43 | 36/4.78 | 1/4.78 | 33.42 | 1917 | 117.41 | 0.0447 |
| BITTERN | 1272 | 644.52 | 44.57 | 689.09 | 45/4.27 | 7/2.85 | 34.17 | 2134 | 151.66 | 0.0445 |
| PHEASANT | 1272 | 644.52 | 81.66 | 726.19 | 54/3.90 | 19/2.34 | 35.10 | 2433 | 193.91 | 0.0443 |
| DIPPER | 1351.5 | 684.81 | 47.32 | 732.12 | 45/4.40 | 7/2.93 | 35.16 | 2266 | 161.00 | 0.0419 |
| MARTIN | 1351.5 | 684.81 | 86.70 | 771.51 | 54/4.02 | 19/2.41 | 36.17 | 2585 | 205.92 | 0.0417 |
| BOBOLINK | 1431 | 725.09 | 50.14 | 775.23 | 45/4.53 | 7/3.02 | 36.24 | 2402 | 170.34 | 0.0395 |
| PLOVER | 1431 | 725.09 | 91.90 | 816.98 | 54/4.14 | 19/2.48 | 37.24 | 2738 | 218.38 | 0.0394 |
| NUTHATCH | 1510.5 | 765.37 | 52.88 | 818.25 | 45/4.65 | 7/3.10 | 37.20 | 2534 | 178.34 | 0.0375 |
| PARROT | 1510.5 | 765.37 | 96.85 | 862.22 | 54/4.25 | 19/2.55 | 38.25 | 2890 | 229.94 | 0.0373 |
| LAPWING | 1590 | 805.65 | 55.69 | 861.34 | 45/4.77 | 7/3.18 | 38.16 | 2667 | 187.69 | 0.0356 |
| FALCON | 1590 | 805.65 | 102.14 | 907.79 | 54/4.36 | 19/2.62 | 39.26 | 3042 | 242.40 | 0.0355 |
| CHUKAR | 1780 | 901.93 | 73.54 | 975.47 | 84/3.70 | 19/2.22 | 40.70 | 3086 | 226.83 | 0.0319 |
| BLUEBIRD | 2156 | 1092.45 | 88.91 | 1181.36 | 84/4.07 | 19/2.44 | 44.76 | 3733 | 268.19 | 0.0263 |
| KIWI | 2167 | 1098.02 | 47.48 | 1145.50 | 72/4.41 | 7/2.94 | 44.07 | 3427 | 221.49 | 0.0263 |
| THRASHER | 2312 | 1171.49 | 63.79 | 1235.28 | 76/4.43 | 19/2.07 | 45.77 | 3764 | 252.18 | 0.0246 |
| HIGH STRENGTH STRANDING | ||||||||||
| GROUSE | 80 | 40.54 | 14.13 | 54.67 | 8/2.54 | 1/4.24 | 9.32 | 222 | 23.11 | 0.7112 |
| PETREL | 101.8 | 51.58 | 30.09 | 81.67 | 12/2.34 | 7/2.34 | 11.71 | 378 | 46.24 | 0.5163 |
| MINORCA | 110.8 | 56.14 | 32.76 | 88.90 | 12/2.44 | 7/2.44 | 12.22 | 412 | 50.24 | 0.4743 |
| LEGHORN | 134.6 | 68.20 | 39.78 | 107.98 | 12/2.69 | 7/2.69 | 13.46 | 500 | 60.47 | 0.3905 |
| GUINEA | 159 | 80.57 | 46.99 | 127.56 | 12/2.92 | 7/2.92 | 14.63 | 590 | 71.15 | 0.3306 |
| DOTTEREL | 176.9 | 89.64 | 52.27 | 141.91 | 12/3.08 | 7/3.08 | 15.42 | 657 | 76.93 | 0.2971 |
| DORKING | 190.8 | 96.68 | 56.40 | 153.08 | 12/3.20 | 7/3.20 | 16.03 | 709 | 83.16 | 0.2755 |
| BRAHMA | 203.2 | 102.96 | 91.90 | 194.86 | 16/2.86 | 19/2.48 | 18.14 | 1007 | 126.30 | 0.2481 |
| COCHIN | 211.3 | 107.07 | 62.46 | 169.53 | 12/3.37 | 7/3.37 | 16.84 | 785 | 92.05 | 0.2487 |
| Code Name | Old Code |
Areas | Stranding and Wire Diameter | Approx. Overall Diameter | Approx. Weight | Nominal Breaking Load | Max.DC Resistance at 20℃ |
|||
| Al | Steel | Total | Al | Steel | ||||||
| mm2 | mm2 | mm2 | No./mm | No./mm | mm | kg/km | kN | Ω/km | ||
| 11-AL1/2-ST1A | MOLE | 10.6 | 1.8 | 12.4 | 6/1.50 | 1/1.50 | 4.50 | 43 | 4.14 | 2.7027 |
| 21-AL1/3-ST1A | SQUIRREL | 21.0 | 3.5 | 24.5 | 6/2.11 | 1/2.11 | 6.33 | 85 | 7.87 | 1.3659 |
| 26-AL1/4-ST1A | GOPHER | 26.2 | 4.4 | 30.6 | 6/2.36 | 1/2.36 | 7.08 | 106 | 9.58 | 1.0919 |
| 32-AL1/5-ST1A | WEASEL | 31.6 | 5.3 | 36.9 | 6/2.59 | 1/2.59 | 7.77 | 128 | 11.38 | 0.9065 |
| 37-AL1/6-ST1A | FOX | 36.7 | 6.1 | 42.8 | 6/2.79 | 1/2.79 | 8.37 | 148 | 13.21 | 0.7812 |
| 42-AL1/7-ST1A | FERRET | 42.4 | 7.1 | 49.5 | 6/3.00 | 1/3.00 | 9.00 | 171 | 15.27 | 0.6757 |
| 53-AL1/9-ST1A | RABBIT | 52.9 | 8.8 | 61.7 | 6/3.35 | 1/3.35 | 10.10 | 214 | 18.42 | 0.5419 |
| 63-AL1/11-ST1A | MINK | 63.1 | 10.5 | 73.6 | 6/3.66 | 1/3.66 | 11.00 | 255 | 21.67 | 0.4540 |
| 63-AL1/37-ST1A | SKUNK | 63.2 | 36.9 | 100.1 | 12/2.59 | 7/2.59 | 13.00 | 463 | 52.79 | 0.4568 |
| 75-AL1/13-ST1A | BEAVER | 75.0 | 12.5 | 87.5 | 6/3.99 | 1/3.99 | 12.00 | 303 | 25.76 | 0.3820 |
| 73-AL1/43-ST1A | HORSE | 73.4 | 42.8 | 116.2 | 12/2.79 | 7/2.79 | 14.00 | 537 | 61.26 | 0.3936 |
| 79-AL1/13-ST1A | RACOON | 78.8 | 13.1 | 92.0 | 6/4.09 | 1/4.09 | 12.30 | 318 | 27.06 | 0.3635 |
| 84-AL1/14-ST1A | OTTER | 83.9 | 14.0 | 97.9 | 6/4.22 | 1/4.22 | 12.70 | 339 | 28.81 | 0.3415 |
| 95-AL1/16-ST1A | CAT | 95.4 | 15.9 | 111.3 | 6/4.50 | 1/4.50 | 13.50 | 385 | 32.76 | 0.3003 |
| 105-AL1/17-ST1A | HARE | 105.0 | 17.5 | 122.5 | 6/4.72 | 1/4.72 | 14.20 | 424 | 36.04 | 0.2730 |
| 105-AL1/14-ST1A | DOG | 105.0 | 13.6 | 118.5 | 6/4.72 | 7/1.57 | 14.20 | 394 | 32.65 | 0.2733 |
| 132-AL1/20-ST1A | COYOTE | 131.7 | 20.1 | 151.8 | 26/2.54 | 7/1.91 | 15.90 | 521 | 45.86 | 0.2192 |
| 132-AL1/7-ST1A | COUGAR | 131.5 | 7.3 | 138.8 | 18/3.05 | 1/3.05 | 15.30 | 419 | 29.74 | 0.2188 |
| 131-AL1/31-ST1A | TIGER | 131.2 | 30.6 | 161.9 | 30/2.36 | 7/2.36 | 16.50 | 602 | 57.87 | 0.2202 |
| 158-AL1/37-ST1A | WOLF | 158.1 | 36.9 | 194.9 | 30/2.59 | 7/2.59 | 18.10 | 725 | 68.91 | 0.1829 |
| 159-AL1/9-ST1A | DINGO | 158.7 | 8.8 | 167.5 | 18/3.35 | 1/3.35 | 16.80 | 505 | 35.87 | 0.1814 |
| 183-AL1/43-ST1A | LYNX | 183.4 | 42.8 | 226.2 | 30/2.79 | 7/2.79 | 19.50 | 842 | 79.97 | 0.1576 |
| 184-AL1/10-ST1A | CARACAL | 184.2 | 10.2 | 194.5 | 18/3.61 | 1/3.61 | 18.10 | 587 | 40.74 | 0.1562 |
| 212-AL1/49-ST1A | PANTHER | 212.1 | 49.5 | 261.5 | 30/3.00 | 7/3.00 | 21.00 | 973 | 92.46 | 0.1363 |
| 211-AL1/12-ST1A | JAGUAR | 210.6 | 11.7 | 222.3 | 18/3.86 | 1/3.86 | 19.30 | 671 | 46.57 | 0.1366 |
| 238-AL1/56-ST1A | LION | 238.3 | 55.6 | 293.9 | 30/3.18 | 7/3.18 | 22.30 | 1093 | 100.47 | 0.1213 |
| 264-AL1/62-ST1A | BEAR | 264.4 | 61.7 | 326.1 | 30/3.35 | 7/3.35 | 23.50 | 1213 | 111.50 | 0.1093 |
| 324-AL1/76-ST1A | GOAT | 324.3 | 75.7 | 400.0 | 30/3.71 | 7/3.71 | 26.00 | 1488 | 135.13 | 0.0891 |
| 375-AL1/88-ST1A | SHEEP | 375.1 | 87.5 | 462.6 | 30/3.99 | 7/3.99 | 27.90 | 1721 | 156.30 | 0.0771 |
| 374-AL1/48-ST1A | ANTELOPE | 374.1 | 48.5 | 422.6 | 54/2.97 | 7/2.97 | 26.70 | 1414 | 118.88 | 0.0773 |
| 382-AL1/49-ST1A | BISON | 381.7 | 49.5 | 431.2 | 54/3.00 | 7/3.00 | 27.00 | 1443 | 121.30 | 0.0758 |
| 430-AL1/100-ST1A | DEER | 429.6 | 100.2 | 529.8 | 30/4.27 | 7/4.27 | 29.90 | 1971 | 179.00 | 0.0673 |
| 429-AL1/56-ST1A | ZEBRA | 428.9 | 55.6 | 484.5 | 54/3.18 | 7/3.18 | 28.60 | 1621 | 131.92 | 0.0674 |
| 477-AL1/111-ST1A | ELK | 477.1 | 111.3 | 588.5 | 30/4.50 | 7/4.50 | 31.50 | 2190 | 198.80 | 0.0606 |
| 476-AL1/62-ST1A | CAMEL | 476.0 | 61.7 | 537.7 | 54/3.35 | 7/3.35 | 30.20 | 1799 | 146.40 | 0.0608 |
| 528-AL1/69-ST1A | MOOSE | 528.5 | 68.5 | 597.0 | 54/3.53 | 7/3.53 | 31.80 | 1997 | 159.92 | 0.0547 |
| Nominal Area | Areas | Stranding and Wire Diameter | Approx. Overall Diameter | Approx. Weight | Nominal Breaking Load | Max.DC Resistance at 20℃ |
|||
| Al | Steel | Total | Al | Steel | |||||
| mm2 | mm2 | mm2 | mm2 | No./mm | No./mm | mm | kg/km | kN | Ω/km |
| 16/2.5 | 15.3 | 2.5 | 17.8 | 6/1.80 | 1/1.80 | 5.4 | 62 | 5.81 | 1.8793 |
| 25/4 | 23.9 | 4.0 | 27.8 | 6/2.25 | 1/2.25 | 6.8 | 97 | 9.02 | 1.2028 |
| 35/6 | 34.4 | 5.7 | 40.1 | 6/2.70 | 1/2.70 | 8.1 | 140 | 12.70 | 0.8353 |
| 44/32 | 44.0 | 31.7 | 75.7 | 14/2.00 | 7/2.40 | 11.2 | 373 | 45.46 | 0.6573 |
| 50/8 | 48.3 | 8.0 | 56.3 | 6/3.20 | 1/3.20 | 9.6 | 196 | 17.18 | 0.5946 |
| 50/30 | 51.2 | 29.8 | 81.0 | 12/2.33 | 7/2.33 | 11.7 | 378 | 44.28 | 0.5644 |
| 70/12 | 69.9 | 11.4 | 81.3 | 26/1.85 | 7/1.44 | 11.7 | 284 | 26.31 | 0.4130 |
| 95/15 | 94.4 | 15.3 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 383 | 35.17 | 0.3058 |
| 95/55 | 96.5 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16.0 | 714 | 80.20 | 0.2992 |
| 105/75 | 105.7 | 75.5 | 181.2 | 14/3.10 | 19/2.25 | 17.5 | 899 | 106.69 | 0.2736 |
| 120/20 | 121.6 | 19.8 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 494 | 44.94 | 0.2374 |
| 120/70 | 122.1 | 71.3 | 193.4 | 12/3.60 | 7/3.60 | 18.0 | 904 | 98.16 | 0.2364 |
| 125/30 | 127.9 | 29.8 | 157.8 | 30/2.33 | 7/2.33 | 16.3 | 590 | 57.86 | 0.2259 |
| 150/25 | 148.9 | 24.2 | 173.1 | 26/2.70 | 7/2.10 | 17.1 | 604 | 54.37 | 0.1939 |
| 170/40 | 171.8 | 40.1 | 211.8 | 30/2.70 | 7/2.70 | 18.9 | 794 | 77.01 | 0.1682 |
| 185/30 | 183.8 | 29.8 | 213.6 | 26/3.00 | 7/2.33 | 19.0 | 744 | 66.28 | 0.1571 |
| 210/35 | 209.1 | 34.1 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 848 | 74.94 | 0.1380 |
| 210/50 | 212.1 | 49.5 | 261.5 | 30/3.00 | 7/3.00 | 21.0 | 979 | 92.25 | 0.1363 |
| 230/30 | 230.9 | 29.8 | 260.8 | 24/3.50 | 7/2.33 | 21.0 | 874 | 73.09 | 0.1249 |
| 240/40 | 243.1 | 39.5 | 282.5 | 26/3.45 | 7/2.68 | 21.8 | 985 | 86.46 | 0.1188 |
| 265/35 | 263.7 | 34.1 | 297.7 | 24/3.74 | 7/2.49 | 22.4 | 998 | 82.94 | 0.1094 |
| 300/50 | 304.3 | 49.5 | 353.7 | 26/3.86 | 7/3.00 | 24.4 | 1233 | 105.09 | 0.0949 |
| 305/40 | 304.6 | 39.5 | 344.1 | 54/2.68 | 7/2.68 | 24.1 | 1155 | 99.30 | 0.0949 |
| 340/30 | 339.3 | 29.8 | 369.1 | 48/3.00 | 7/2.33 | 25.0 | 1174 | 92.56 | 0.0851 |
| 380/50 | 381.7 | 49.5 | 431.2 | 54/3.00 | 7/3.00 | 27.0 | 1448 | 120.91 | 0.0757 |
| 385/35 | 386.0 | 34.1 | 420.1 | 48/3.20 | 7/2.49 | 26.7 | 1336 | 104.31 | 0.0748 |
| 435/55 | 434.3 | 56.3 | 490.6 | 54/3.20 | 7/3.20 | 28.8 | 1647 | 136.27 | 0.0666 |
| 450/40 | 448.7 | 39.5 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1553 | 120.19 | 0.0644 |
| 490/65 | 490.3 | 63.6 | 553.8 | 54/3.40 | 7/3.40 | 30.6 | 1860 | 152.85 | 0.0590 |
| 495/35 | 494.4 | 34.1 | 528.4 | 45/3.74 | 7/2.49 | 29.9 | 1636 | 120.31 | 0.0584 |
| 510/45 | 510.5 | 45.3 | 555.8 | 48/3.68 | 7/2.87 | 30.7 | 1770 | 134.33 | 0.0566 |
| 550/70 | 549.7 | 71.3 | 620.9 | 54/3.60 | 7/3.60 | 32.4 | 2085 | 167.42 | 0.0526 |
| 560/50 | 561.7 | 49.5 | 611.2 | 48/3.86 | 7/3.00 | 32.2 | 1943 | 146.28 | 0.0514 |
| 570/40 | 571.2 | 39.5 | 610.6 | 45/4.02 | 7/2.68 | 32.2 | 1889 | 137.98 | 0.0506 |
| 650/45 | 653.5 | 45.3 | 698.8 | 45/4.30 | 7/2.87 | 34.4 | 2163 | 155.52 | 0.0442 |
| 680/85 | 678.6 | 86.0 | 764.5 | 54/4.00 | 19/2.40 | 36.0 | 2564 | 209.99 | 0.0426 |
| 1045/45 | 1045.6 | 45.3 | 1090.9 | 72/4.30 | 7/2.87 | 43.0 | 3249 | 217.87 | 0.0277 |
| Code Name | Stranding and Wire Diameter | Nominal Overall Diameter | Cross-sectional Area |
Approx. Weight | Break. Load |
Equiv. Aluminium Area | Max.DC Resistance at 20℃ |
|
| Aluminium 1350 | Steel | |||||||
| No./mm | No./mm | mm | mm2 | kg/km | kN | mm2 | Ω/km | |
| Almond | 6/2.50 | 1/2.50 | 7.5 | 34.36 | 119 | 10.5 | 29 | 0.9750 |
| Apricot | 6/2.75 | 1/2.75 | 8.3 | 41.58 | 144 | 12.6 | 35.1 | 0.8050 |
| Apple | 6/3.00 | 1/3.00 | 9.0 | 49.48 | 171 | 14.9 | 41.8 | 0.6770 |
| Banana | 6/3.75 | 1/3.75 | 11.3 | 77.31 | 268 | 22.7 | 65.2 | 0.4330 |
| Cherry | 6/4.75 | 7/1.60 | 14.3 | 120.40 | 402 | 33.4 | 105 | 0.2710 |
| Grape | 30/2.50 | 7/2.50 | 17.5 | 181.60 | 677 | 63.5 | 144 | 0.1960 |
| Lemon | 30/3.00 | 7/3.00 | 21.0 | 261.50 | 973 | 90.4 | 207 | 0.1360 |
| Lychee | 30/3.25 | 7/3.25 | 22.8 | 306.90 | 1140 | 105 | 243 | 0.1160 |
| Lime | 30/3.50 | 7/3.50 | 24.5 | 356.00 | 1320 | 122 | 282 | 0.1000 |
| Mango | 54/3.00 | 7/3.00 | 27.0 | 431.20 | 1440 | 119 | 373 | 0.0758 |
| Orange | 54/3.25 | 7/3.25 | 29.3 | 506.00 | 1690 | 137 | 438 | 0.0646 |
| Olive | 54/3.50 | 7/3.50 | 31.5 | 586.90 | 1960 | 159 | 508 | 0.0557 |
| Pawpaw | 54/3.75 | 19/2.25 | 33.8 | 672.00 | 2240 | 178 | 583 | 0.0485 |
| Quince | 3/1.75 | 4/1.75 | 5.3 | 16.84 | 95 | 12.7 | 8.74 | 3.2500 |
| Raisin | 3/2.50 | 4/2.50 | 7.5 | 34.36 | 195 | 24.4 | 17.8 | 1.5900 |
| Sultana | 4/3.00 | 3/3.00 | 9.0 | 49.48 | 243 | 28.3 | 31.5 | 0.8970 |
| Walnut | 4/3.75 | 3/3.75 | 11.3 | 77.31 | 380 | 43.9 | 49.2 | 0.5730 |
| Code Number |
Steel Ratio | Areas | Number of Wires | Wire Diameter | Diameter | Linear Mass | Rated Strength |
D.C. Resistance |
|||||
| Al | Steel | Total | Al | Steel | Al | Steel | Core | Cond. | |||||
| % | mm2 | mm2 | mm2 | mm | mm | mm | mm | kg/km | kN | Ω/km | |||
| 16 | 17 | 16 | 2.67 | 18.7 | 6 | 1 | 1.84 | 1.84 | 1.84 | 5.53 | 64.6 | 6.08 | 1.7934 |
| 25 | 17 | 25 | 4.17 | 29.2 | 6 | 1 | 2.30 | 2.30 | 2.30 | 6.91 | 100.9 | 9.13 | 1.1478 |
| 40 | 17 | 40 | 6.67 | 46.7 | 6 | 1 | 2.91 | 2.91 | 2.91 | 8.74 | 161.5 | 14.4 | 0.7174 |
| 63 | 17 | 63 | 10.5 | 73.5 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11.0 | 254.4 | 21.63 | 0.4555 |
| 100 | 17 | 100 | 16.7 | 117 | 6 | 1 | 4.61 | 4.61 | 4.61 | 13.8 | 403.8 | 34.33 | 0.2869 |
| 125 | 6 | 125 | 6.94 | 132 | 18 | 1 | 2.97 | 2.97 | 2.97 | 14.9 | 397.9 | 29.17 | 0.2304 |
| 125 | 16 | 125 | 20.4 | 145 | 26 | 7 | 2.47 | 1.92 | 5.77 | 15.7 | 503.9 | 45.69 | 0.2310 |
| 160 | 6 | 160 | 8.89 | 169 | 18 | 1 | 3.36 | 3.36 | 3.36 | 16.8 | 509.3 | 36.18 | 0.1800 |
| 160 | 16 | 160 | 26.1 | 186 | 26 | 7 | 2.80 | 2.18 | 6.53 | 17.7 | 644.9 | 57.69 | 0.1805 |
| 200 | 6 | 200 | 11.1 | 211 | 18 | 1 | 3.76 | 3.76 | 3.76 | 18.8 | 636.7 | 44.22 | 0.1440 |
| 200 | 16 | 200 | 32.6 | 233 | 26 | 7 | 3.13 | 2.43 | 7.30 | 19.8 | 806.2 | 70.13 | 0.1444 |
| 250 | 10 | 250 | 24.6 | 275 | 22 | 7 | 3.80 | 2.11 | 6.34 | 21.6 | 880.6 | 68.72 | 0.1154 |
| 250 | 16 | 250 | 40.7 | 291 | 26 | 7 | 3.50 | 2.72 | 8.16 | 22.2 | 1007.7 | 87.67 | 0.1155 |
| 315 | 7 | 315 | 21.8 | 337 | 45 | 7 | 2.99 | 1.99 | 5.97 | 23.9 | 1039.6 | 79.03 | 0.0917 |
| 315 | 16 | 315 | 51.3 | 366 | 26 | 7 | 3.93 | 3.05 | 9.16 | 24.9 | 1269.7 | 106.83 | 0.0917 |
| 400 | 7 | 400 | 27.7 | 428 | 45 | 7 | 3.36 | 2.24 | 6.73 | 26.9 | 1320.1 | 98.36 | 0.0722 |
| 400 | 13 | 400 | 51.9 | 452 | 54 | 7 | 3.07 | 3.07 | 9.21 | 27.6 | 1510.3 | 123.04 | 0.0723 |
| 450 | 7 | 450 | 31.1 | 481 | 45 | 7 | 3.57 | 2.38 | 7.14 | 28.5 | 1485.2 | 107.47 | 0.0642 |
| 450 | 13 | 450 | 58.3 | 508 | 54 | 7 | 3.26 | 3.26 | 9.77 | 29.3 | 1699.1 | 138.42 | 0.0643 |
| 500 | 7 | 500 | 34.6 | 535 | 45 | 7 | 3.76 | 2.51 | 7.52 | 30.1 | 1650.2 | 119.41 | 0.0578 |
| 500 | 13 | 500 | 64.8 | 565 | 54 | 7 | 3.43 | 3.43 | 10.30 | 30.9 | 1887.9 | 153.8 | 0.0578 |
| 560 | 7 | 560 | 38.7 | 599 | 45 | 7 | 3.98 | 2.65 | 7.96 | 31.8 | 1848.2 | 133.74 | 0.0516 |
| 560 | 13 | 560 | 70.9 | 631 | 54 | 19 | 3.63 | 2.18 | 10.90 | 32.7 | 2103.4 | 172.59 | 0.0516 |
| 630 | 7 | 630 | 43.6 | 674 | 45 | 7 | 4.22 | 2.81 | 8.44 | 33.8 | 2079.2 | 150.45 | 0.0459 |
| 630 | 13 | 630 | 79.8 | 710 | 54 | 19 | 3.85 | 2.31 | 11.60 | 34.7 | 2366.3 | 191.77 | 0.0459 |
| 710 | 7 | 710 | 49.1 | 759 | 45 | 7 | 4.48 | 2.99 | 8.96 | 35.9 | 2343.2 | 169.56 | 0.0407 |
| 710 | 13 | 710 | 89.9 | 800 | 54 | 19 | 4.09 | 2.45 | 12.30 | 36.8 | 2666.8 | 216.12 | 0.0407 |
| 800 | 4 | 800 | 34.6 | 835 | 72 | 7 | 3.76 | 2.51 | 7.52 | 37.6 | 2480.2 | 167.41 | 0.0361 |
| 800 | 8 | 800 | 66.7 | 867 | 84 | 7 | 3.48 | 3.48 | 10.40 | 38.3 | 2732.7 | 205.33 | 0.0362 |
| 800 | 13 | 800 | 101 | 901 | 54 | 19 | 4.34 | 2.61 | 13.00 | 39.1 | 3004.9 | 243.52 | 0.0362 |
| 900 | 4 | 900 | 38.9 | 939 | 72 | 7 | 3.99 | 2.66 | 7.98 | 39.9 | 2790.2 | 188.33 | 0.0321 |
| 900 | 8 | 900 | 75.0 | 975 | 84 | 7 | 3.69 | 3.69 | 11.10 | 40.6 | 3074.2 | 226.5 | 0.0322 |
| 1000 | 4 | 1000 | 43.2 | 1043 | 72 | 7 | 4.21 | 2.80 | 8.41 | 42.1 | 3100.3 | 209.26 | 0.0289 |
| 1120 | 4 | 1120 | 47.3 | 1167 | 72 | 19 | 4.45 | 1.78 | 8.90 | 44.5 | 3464.9 | 234.53 | 0.0258 |
| 1120 | 8 | 1120 | 91.2 | 1211 | 84 | 19 | 4.12 | 2.47 | 12.40 | 45.3 | 3811.5 | 283.17 | 0.0258 |
| 1250 | 8 | 1250 | 102.0 | 1352 | 84 | 19 | 4.35 | 2.61 | 13.10 | 47.9 | 4253.9 | 316.04 | 0.0232 |
| 1250 | 4 | 1250 | 52.8 | 1303 | 72 | 19 | 4.70 | 1.88 | 9.40 | 47.0 | 3867.1 | 261.75 | 0.0231 |
Huili Cable Co., Ltd. (formerly Luohe Huili Cable Co., Ltd. and Luohe Cable Factory) was founded in 1989 and was renamed Huili Cable Co., Ltd. on September 14, 2024. The company's registered capital is RMB 200 million.
