ACSR/AW-Aluminum Conductor Aluminum Clad Steel Reinforced

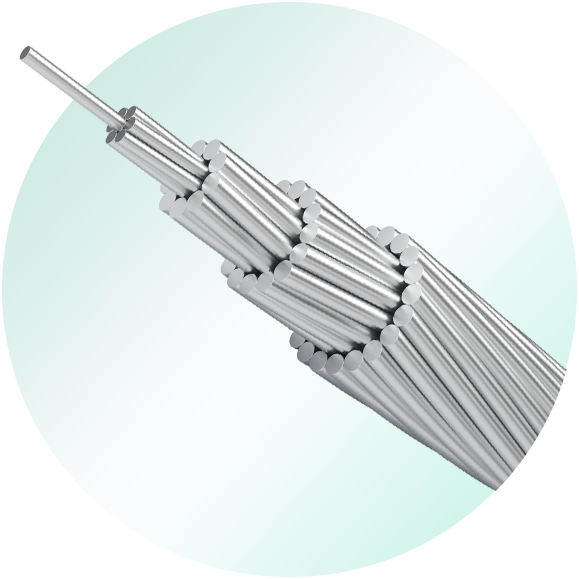

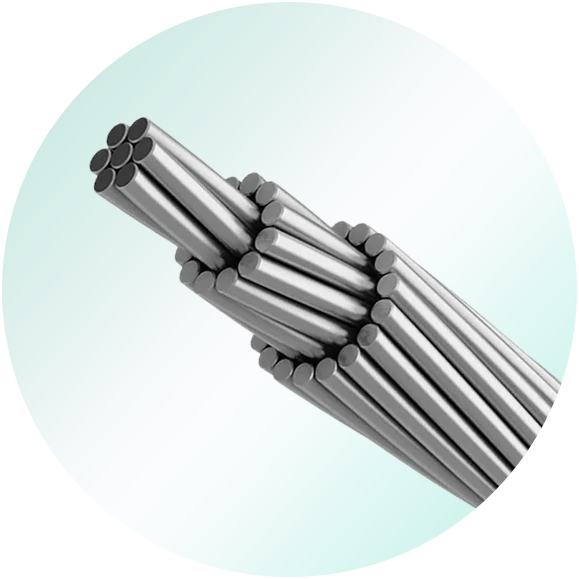

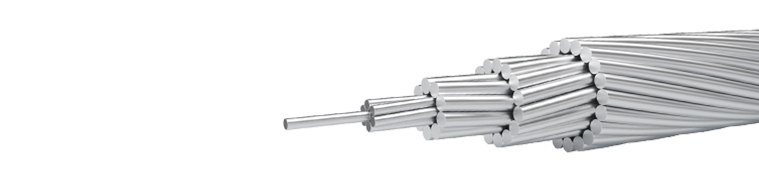

The aluminum conductor aluminum clad steel reinforced(ACSR/AW) is made up of aluminum wires, concentrically stranded around an aluminum-clad steel core.
Home > Products > Bare Conductor
The aluminum conductor aluminum clad steel reinforced(ACSR/AW) is made up of aluminum wires, concentrically stranded around an aluminum-clad steel core.
Used as bare overhead transmission and as primary and secondary distribution cable. ACSR/AW offers strength characteristics similar to ACSR, along with slightly greater ampacity and resistance to corrosion due to aluminum-cladding of the steel core wires.
The aluminum conductor aluminum clad steel reinforced(ACSR/AW) is made up of aluminum wires, concentrically stranded around an aluminum-clad steel core.
The ACSR/AW conductor offers strength characteristics similar to ACSR, along with slightly greater ampacity and resistance to corrosion due to aluminum-cladding of the steel core wires.

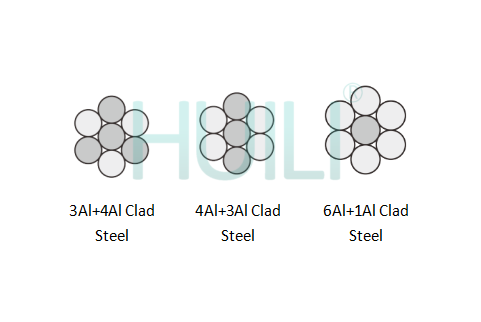

Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced for Use in Overhead Electrical Conductors
IEC 61089 Round wire concentric lay overhead electrical stranded conductors
Round wire concentric lay overhead electrical stranded conductors

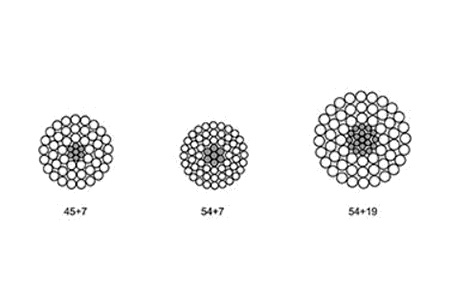

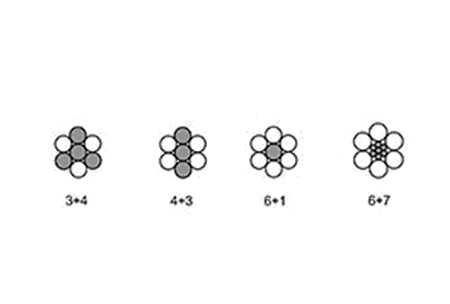

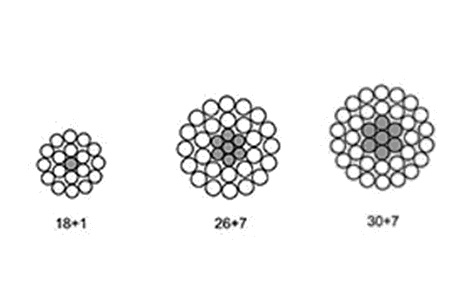

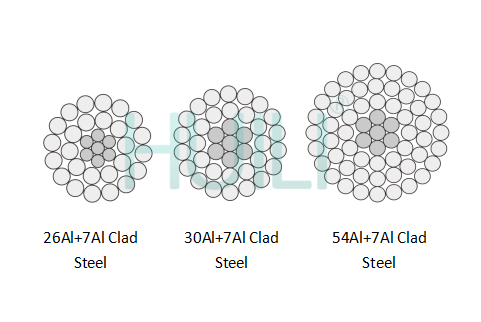

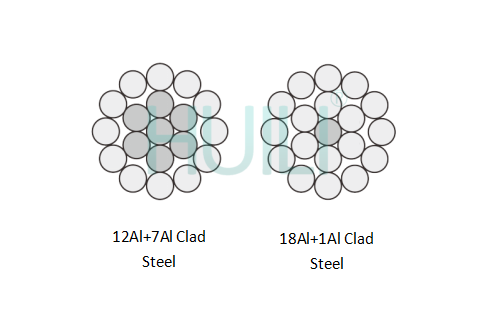

| Code Name | Conductor Size - Aluminum | Stranding and Wire Diameter | Nominal Outside Diameter | Mass per Unit Length | Rated strength |
Max. DC Resistance at 20℃ |
||||
| Aluminum | Aluminum-Clad Steel | |||||||||
| MCM | mm2 | No. | mm | No. | mm | mm | kg/km | kN | Ω/km | |
| Thrasher | 2312 | 1171 | 76 | 4.43 | 19 | 2.07 | 45.79 | 3679 | 246 | 0.0244 |
| Kiwi | 2167 | 1098 | 72 | 4.41 | 7 | 2.94 | 44.10 | 3366 | 218 | 0.0261 |
| Bluebird | 2156 | 1092 | 84 | 4.07 | 19 | 2.44 | 44.76 | 3627 | 262 | 0.0259 |
| Chukar | 1780 | 902 | 84 | 3.70 | 19 | 2.22 | 40.70 | 2996 | 220 | 0.0314 |
| Falcon | 1590 | 806 | 54 | 4.36 | 19 | 2.62 | 39.26 | 2917 | 236 | 0.0346 |
| Lapwing | 1590 | 806 | 45 | 4.78 | 7 | 3.18 | 38.22 | 2598 | 186 | 0.0351 |
| Parrot | 1510.5 | 765 | 54 | 4.25 | 19 | 2.55 | 38.25 | 2768 | 224 | 0.0364 |
| Nuthatch | 1510.5 | 765 | 45 | 4.65 | 7 | 3.10 | 37.20 | 2467 | 177 | 0.0370 |
| Plover | 1431 | 725 | 54 | 4.14 | 19 | 2.48 | 37.24 | 2625 | 212 | 0.0384 |
| Bobolink | 1431 | 725 | 45 | 4.53 | 7 | 3.02 | 36.24 | 2336 | 167 | 0.0390 |
| Martin | 1351.5 | 685 | 54 | 4.02 | 19 | 2.41 | 36.17 | 2478 | 201 | 0.0407 |
| Dipper | 1351.5 | 685 | 45 | 4.40 | 7 | 2.93 | 35.19 | 2207 | 158 | 0.0414 |
| Pheasant | 1272 | 645 | 54 | 3.90 | 19 | 2.34 | 35.10 | 2333 | 189 | 0.0433 |
| Bittern | 1272 | 645 | 45 | 4.27 | 7 | 2.85 | 34.17 | 2078 | 149 | 0.0439 |
| Skylark | 1272 | 645 | 36 | 4.78 | 1 | 4.78 | 33.46 | 1893 | 114 | 0.0442 |
| Grackle | 1192.5 | 604 | 54 | 3.77 | 19 | 2.27 | 33.97 | 2188 | 179 | 0.0463 |
| Bunting | 1192.5 | 604 | 45 | 4.14 | 7 | 2.76 | 33.12 | 1948 | 139 | 0.0467 |
| Finch | 1113 | 564 | 54 | 3.65 | 19 | 2.19 | 32.85 | 2043 | 167 | 0.0494 |
| Bluejay | 1113 | 564 | 45 | 4.00 | 7 | 2.66 | 31.98 | 1819 | 130 | 0.0501 |
| Curlew | 1033.5 | 524 | 54 | 3.51 | 7 | 3.51 | 31.59 | 1896 | 158 | 0.0534 |
| Ortolan | 1033.5 | 524 | 45 | 3.85 | 7 | 2.57 | 30.81 | 1688 | 121 | 0.0540 |
| Tanager | 1033.5 | 524 | 36 | 4.30 | 1 | 4.30 | 30.10 | 1537 | 94 | 0.0546 |
| Cardinal | 954 | 483 | 54 | 3.38 | 7 | 3.38 | 30.42 | 1752 | 146 | 0.0573 |
| Rail | 954 | 483 | 45 | 3.70 | 7 | 2.47 | 29.61 | 1558 | 113 | 0.0585 |
| Catbird | 954 | 483 | 36 | 4.14 | 1 | 4.14 | 28.98 | 1420 | 87 | 0.0589 |
| Canary | 900 | 456 | 54 | 3.28 | 7 | 3.28 | 29.52 | 1653 | 138 | 0.0608 |
| Ruddy | 900 | 456 | 45 | 3.59 | 7 | 2.40 | 28.74 | 1470 | 107 | 0.0621 |
| Mallary | 795 | 403 | 30 | 4.14 | 19 | 2.48 | 28.96 | 1726 | 165 | 0.0668 |
| Condor | 795 | 403 | 54 | 3.08 | 7 | 3.08 | 27.72 | 1458 | 124 | 0.0690 |
| Tern | 795 | 403 | 45 | 3.38 | 7 | 2.25 | 27.03 | 1298 | 96 | 0.0701 |
| Drake | 795 | 403 | 26 | 4.44 | 7 | 3.45 | 28.11 | 1549 | 136 | 0.0682 |
| Cuckoo | 795 | 403 | 24 | 4.62 | 7 | 3.08 | 27.72 | 1460 | 122 | 0.0690 |
| Coot | 795 | 403 | 36 | 3.77 | 1 | 3.77 | 26.39 | 1183 | 74 | 0.0711 |
| Redwing | 715.5 | 363 | 30 | 3.92 | 19 | 2.35 | 27.43 | 1552 | 149 | 0.0744 |
| Starling | 715.5 | 363 | 26 | 4.21 | 7 | 3.28 | 26.68 | 1393 | 122 | 0.0758 |
| Stilt | 715.5 | 363 | 24 | 4.39 | 7 | 2.92 | 26.32 | 1314 | 110 | 0.0764 |
| Gannet | 666.6 | 338 | 26 | 4.07 | 7 | 3.16 | 25.76 | 1298 | 116 | 0.0812 |
| Flamingo | 666.6 | 338 | 24 | 4.23 | 7 | 2.82 | 25.38 | 1225 | 103 | 0.0823 |
| Egret | 636 | 322 | 30 | 3.70 | 19 | 2.22 | 25.90 | 1381 | 133 | 0.0836 |
| Sooter | 636 | 322 | 30 | 3.70 | 7 | 3.70 | 25.90 | 1391 | 130 | 0.0834 |
| Grosbeak | 636 | 322 | 26 | 3.97 | 7 | 3.09 | 25.15 | 1238 | 110 | 0.0853 |
| Rook | 636 | 322 | 24 | 4.14 | 7 | 2.76 | 24.84 | 1168 | 98 | 0.0859 |
| Swift | 636 | 322 | 36 | 3.38 | 1 | 3.38 | 23.66 | 946 | 61 | 0.0884 |
| Kingbird | 636 | 322 | 18 | 4.78 | 1 | 4.78 | 23.90 | 1006 | 67 | 0.0876 |
| Teal | 605 | 307 | 30 | 3.61 | 19 | 2.16 | 25.24 | 1314 | 127 | 0.0878 |
| Wood Duck | 605 | 307 | 30 | 3.61 | 7 | 3.61 | 25.27 | 1323 | 126 | 0.0876 |
| Squab | 605 | 307 | 26 | 3.87 | 7 | 3.01 | 24.51 | 1177 | 105 | 0.0898 |
| Peacock | 605 | 307 | 24 | 4.03 | 7 | 2.69 | 24.19 | 1112 | 93 | 0.0906 |
| Eagle | 556.5 | 282 | 30 | 3.46 | 7 | 3.46 | 24.22 | 1217 | 119 | 0.0954 |
| Dove | 556.5 | 282 | 26 | 3.72 | 7 | 2.89 | 23.55 | 1083 | 97 | 0.0972 |
| Parakeet | 556.5 | 282 | 24 | 3.87 | 7 | 2.58 | 23.22 | 1022 | 86 | 0.0983 |
| Ospray | 556.5 | 282 | 18 | 4.47 | 1 | 4.47 | 22.35 | 880 | 59 | 0.1002 |
| Hen | 477 | 242 | 30 | 3.20 | 7 | 3.20 | 22.40 | 1043 | 104 | 0.1115 |
| Hawk | 477 | 242 | 26 | 3.44 | 7 | 2.68 | 21.80 | 929 | 84 | 0.1136 |
| Flicker | 477 | 242 | 24 | 3.58 | 7 | 2.39 | 21.49 | 877 | 74 | 0.1148 |
| Pelican | 477 | 242 | 18 | 4.14 | 1 | 4.14 | 20.70 | 755 | 51 | 0.1168 |
| Lark | 397.5 | 201 | 30 | 2.92 | 7 | 2.92 | 20.44 | 869 | 87 | 0.1339 |
| Ibis | 397.5 | 201 | 26 | 3.14 | 7 | 2.44 | 19.88 | 774 | 70 | 0.1364 |
| Brant | 397.5 | 201 | 24 | 3.27 | 7 | 2.18 | 19.62 | 731 | 63 | 0.1377 |
| Chickadee | 397.5 | 201 | 18 | 3.77 | 1 | 3.77 | 18.85 | 628 | 44 | 0.1408 |
| Oriole | 336.4 | 170 | 30 | 2.69 | 7 | 2.69 | 18.83 | 737 | 74 | 0.1574 |
| Linnet | 336.4 | 170 | 26 | 2.89 | 7 | 2.25 | 18.31 | 655 | 60 | 0.1609 |
| Merlin | 336.4 | 170 | 18 | 3.47 | 1 | 3.47 | 17.35 | 531 | 38 | 0.1662 |
| Ostrich | 300 | 152 | 26 | 2.73 | 7 | 2.12 | 17.28 | 583 | 54 | 0.1804 |
| Partridge | 266.8 | 135 | 26 | 2.57 | 7 | 2.00 | 16.28 | 519 | 48 | 0.2035 |
| Waxwing | 266.8 | 135 | 18 | 3.09 | 1 | 3.09 | 15.45 | 421 | 30 | 0.2096 |
| Penguin | 211.6 | 107 | 6 | 4.77 | 1 | 4.77 | 14.31 | 412 | 34 | 0.2533 |
| Cochin | 211.3 | 107 | 12 | 3.37 | 7 | 3.37 | 16.85 | 710 | 88 | 0.2258 |
| Brahma | 203.2 | 103 | 16 | 2.86 | 19 | 2.48 | 18.12 | 894 | 121 | 0.2163 |
| Dorking | 190.8 | 96.7 | 12 | 3.20 | 7 | 3.20 | 16.00 | 641 | 81 | 0.2505 |
| Dotterel | 176.9 | 89.6 | 12 | 3.08 | 7 | 3.08 | 15.40 | 594 | 75 | 0.2704 |
| Pigeon | 167.8 | 85.0 | 6 | 4.25 | 1 | 4.25 | 12.75 | 326 | 28 | 0.3191 |
| Guinea | 159 | 80.6 | 12 | 2.92 | 7 | 2.92 | 14.60 | 534 | 68 | 0.3008 |
| 3/0 (5/2) | 152.5 | 77.3 | 5 | 4.44 | 2 | 4.44 | 13.32 | 418 | 43 | 0.3261 |
| 3/0 (4/3) | 141.3 | 71.6 | 4 | 4.78 | 3 | 4.78 | 14.34 | 555 | 63 | 0.3187 |
| Leghom | 134.6 | 68.2 | 12 | 2.69 | 7 | 2.69 | 13.45 | 452 | 58 | 0.3545 |
| Quail | 133.1 | 67.4 | 6 | 3.78 | 1 | 3.78 | 11.34 | 259 | 23 | 0.4035 |
| 2/0 (5/2) | 121 | 61.3 | 5 | 3.95 | 2 | 3.95 | 11.85 | 332 | 36 | 0.4121 |
| 2/0 (4/3) | 112.1 | 56.8 | 4 | 4.25 | 3 | 4.25 | 12.75 | 441 | 53 | 0.4032 |
| Minorca | 110.8 | 56.1 | 12 | 2.44 | 7 | 2.44 | 12.20 | 372 | 48 | 0.4308 |
| Raven | 105.6 | 53.5 | 6 | 3.37 | 1 | 3.37 | 10.11 | 205 | 19 | 0.5074 |
| Petrel | 101.8 | 51.6 | 12 | 2.34 | 7 | 2.34 | 11.70 | 342 | 44 | 0.4684 |
| 2/0 (3/4) | 99.83 | 50.6 | 3 | 4.63 | 4 | 4.63 | 13.89 | 588 | 73 | 0.3928 |
| 1/0 (5/2) | 95.91 | 48.6 | 5 | 3.52 | 2 | 3.52 | 10.56 | 263 | 29 | 0.5189 |
| 1/0 (4/3) | 88.80 | 45.0 | 4 | 3.79 | 3 | 3.79 | 11.37 | 348 | 43 | 0.5070 |
| Robin | 83.69 | 42.4 | 6 | 3.00 | 1 | 3.00 | 9.00 | 162 | 15 | 0.6403 |
| Grouse | 80.00 | 40.5 | 8 | 2.54 | 1 | 4.24 | 9.32 | 205 | 22 | 0.6359 |
| 1/0 (3/4) | 79.13 | 40.1 | 3 | 4.13 | 4 | 4.13 | 12.39 | 466 | 61 | 0.4936 |
| 1 (5/2) | 76.08 | 38.6 | 5 | 3.13 | 2 | 3.13 | 9.39 | 208 | 24 | 0.6563 |
| 1 (4/3) | 70.48 | 35.7 | 4 | 3.37 | 3 | 3.37 | 10.11 | 277 | 36 | 0.6413 |
| Sparate | 66.36 | 33.6 | 7 | 2.47 | 1 | 3.30 | 8.24 | 149 | 16 | 0.7874 |
| Sparrow | 66.36 | 33.6 | 6 | 2.67 | 1 | 2.67 | 8.01 | 129 | 12 | 0.8084 |
| 1/0 (2/5) | 64.92 | 32.9 | 2 | 4.58 | 5 | 4.58 | 13.74 | 640 | 87 | 0.4730 |
| 1 (3/4) | 62.77 | 31.8 | 3 | 3.67 | 4 | 3.67 | 11.01 | 369 | 50 | 0.6251 |
| 2 (5/2) | 60.34 | 30.6 | 5 | 2.79 | 2 | 2.79 | 8.37 | 165 | 19 | 0.8260 |
| 2 (4/3) | 55.89 | 28.3 | 4 | 3.00 | 3 | 3.00 | 9.00 | 219 | 29 | 0.8092 |
| Swallow | 52.62 | 26.7 | 6 | 2.38 | 1 | 2.38 | 7.14 | 103 | 10 | 1.0174 |
| 1 (2/5) | 51.50 | 26.1 | 2 | 4.08 | 5 | 4.08 | 12.24 | 507 | 73 | 0.5961 |
| 2 (3/4) | 49.78 | 25.2 | 3 | 3.27 | 4 | 3.27 | 9.81 | 293 | 43 | 0.7874 |
| 3 (5/2) | 47.85 | 24.3 | 5 | 2.48 | 2 | 2.48 | 7.44 | 131 | 16 | 1.0454 |
| 3 (4/3) | 44.32 | 22.5 | 4 | 2.68 | 3 | 2.68 | 8.04 | 174 | 23 | 1.0140 |
| Swanate | 41.74 | 21.2 | 7 | 1.96 | 1 | 2.61 | 6.53 | 93 | 10 | 1.2511 |
| Swan | 41.74 | 21.2 | 6 | 2.12 | 1 | 2.12 | 6.36 | 81 | 8 | 1.2823 |
| 2 (2/5) | 40.84 | 20.7 | 2 | 3.63 | 5 | 3.63 | 10.89 | 402 | 60 | 0.7530 |
| 3 (3/4) | 39.47 | 20.0 | 3 | 2.91 | 4 | 2.91 | 8.73 | 232 | 34 | 0.9943 |
| 4 (5/2) | 37.95 | 19.2 | 5 | 2.21 | 2 | 2.21 | 6.63 | 104 | 12 | 1.3164 |
| 4 (4/3) | 35.15 | 17.8 | 4 | 2.38 | 3 | 2.38 | 7.14 | 138 | 19 | 1.2857 |
| 3 (2/5) | 32.39 | 16.4 | 2 | 3.23 | 5 | 3.23 | 9.69 | 320 | 50 | 0.9510 |
| 4 (3/4) | 31.30 | 15.9 | 3 | 2.60 | 4 | 2.60 | 7.80 | 185 | 27 | 1.2455 |
| 4 (2/5) | 25.69 | 13.0 | 2 | 2.88 | 5 | 2.88 | 8.64 | 253 | 40 | 1.1962 |
