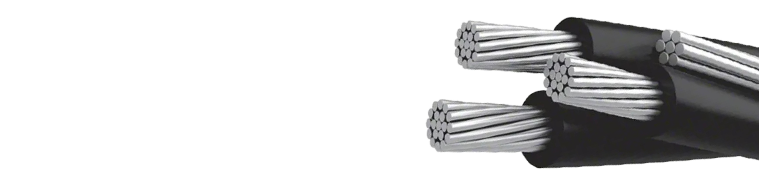

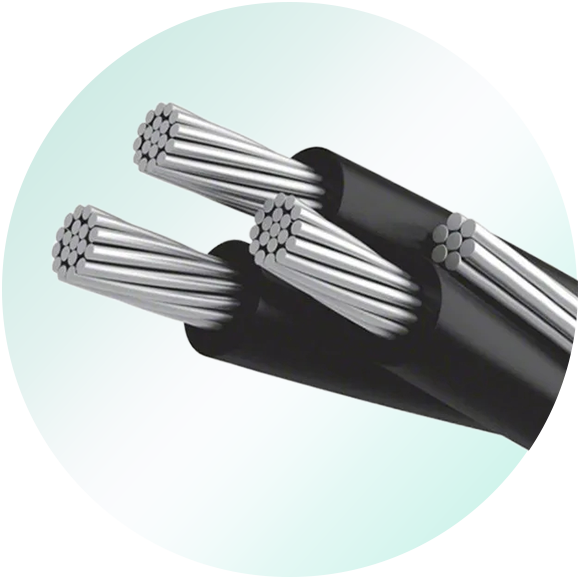

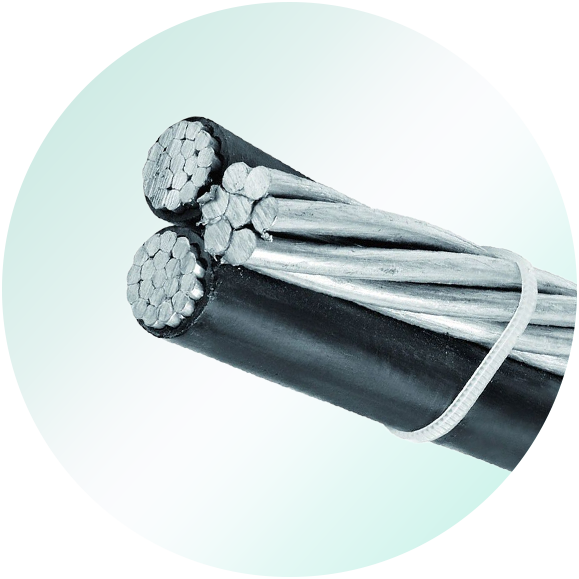

Aerial Bundled Cable(NFC)
Aerial Bundled Cable is also called insulated ABC Cable, it be used in overhead distribution line of rated voltages 0.6/1kV and below.
Home > Products > Overhead Insulated Cable
Aerial Bundled Cable is also called insulated ABC Cable, it be used in overhead distribution line of rated voltages 0.6/1kV and below.
Aerial Bundled Cable is also called insulated ABC Cable, it be used in overhead distribution line of rated voltages 0.6/1kV and below. Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. The conductor long-term operating temperatures not to exceed 90°C for cross-linked polyethylene (XLPE) insulated conductors.

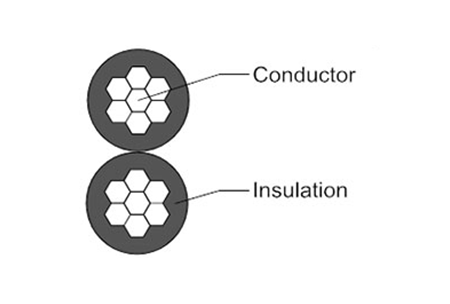

Phase Conductor: Stranded,Circular compacted,Circular compressed AAC.
Neutral Conductor: Stranded,Circular compacted or uncompacted AAAC.
Street Lighting Conductor: Stranded,Circular compacted,Circular compressed AAC.
Insulation: Cross-linked polyethylene (XLPE),Black color,Weather and UV resistant.
The ABC cable provides a higher level of safety and reliability, lower power losses, and called economic design by reducing installation, maintenance, and operative cost.
Insulated cable assembled with harness for overhead network, with rated voltage of 0.6/1kV
| No. of Cores and Section Area | No. of Wires | Insulation Thickness | Approx. Diameter of Cable |
Max. DC. Resistance at 20℃ | Approx. Weight |
| mm2 | No. | mm | mm | Ω/km | kg/km |
| 2x16 | 7 | 1.2 | 14.3 | 1.91 | 133 |
| 2x25 | 7 | 1.4 | 17.5 | 1.20 | 202 |
| 2x35 | 7 | 1.6 | 20.3 | 0.868 | 275 |
| 2x50 | 7 | 1.6 | 22.5 | 0.641 | 352 |
| 2x70 | 12 | 1.8 | 26.7 | 0.443 | 497 |
| 2x95 | 19 | 1.8 | 30.3 | 0.320 | 658 |
| 2x120 | 19 | 1.8 | 32.7 | 0.253 | 801 |
| 4x16 | 7 | 1.2 | 17.3 | 1.91 | 264 |
| 4x25 | 7 | 1.4 | 21.1 | 1.20 | 401 |
| 4x35 | 7 | 1.6 | 24.5 | 0.868 | 549 |
| 4x50 | 7 | 1.6 | 27.1 | 0.641 | 701 |
| 4x70 | 12 | 1.8 | 32.3 | 0.443 | 992 |
| 4x95 | 19 | 1.8 | 36.7 | 0.320 | 1313 |
| 4x120 | 19 | 1.8 | 39.6 | 0.253 | 1599 |
| No. of Cores and Section Area | Phase Core | Neutral Core | Approx. Diameter of Cable |
Max. DC. Resistance at 20℃ | Approx. Weight | |||
| No. of Wires | Insulation Thickness | No. of Wires | Insulation Thickness | Phase | Neutral | |||
| mm2 | No. | mm | No. | mm | mm | Ω/km | Ω/km | kg/km |
| 1x25+1x54.6 | 7 | 1.4 | 7 | 1.6 | 21.5 | 1.20 | 0.63 | 311 |
| 1x35+1x54.6 | 7 | 1.6 | 7 | 1.6 | 22.9 | 0.868 | 0.63 | 347 |
| 1x50+1x54.6 | 7 | 1.6 | 7 | 1.6 | 24.0 | 0.641 | 0.63 | 386 |
| 1x70+1x54.6 | 12 | 1.8 | 7 | 1.6 | 26.1 | 0.443 | 0.63 | 458 |
| 1x95+1x54.6 | 19 | 1.8 | 7 | 1.6 | 27.9 | 0.320 | 0.63 | 539 |
| 1x70+1x70 | 12 | 1.8 | 7 | 1.5 | 26.9 | 0.443 | 0.50 | 493 |
| 1x95+1x70 | 19 | 1.8 | 7 | 1.5 | 28.7 | 0.320 | 0.50 | 573 |
| 1x120+1x70 | 19 | 1.8 | 7 | 1.5 | 29.9 | 0.253 | 0.50 | 645 |
| 1x120+1x95 | 19 | 1.8 | 19 | 1.6 | 32.1 | 0.253 | 0.343 | 739 |
| 1x150+1x95 | 19 | 1.7 | 19 | 1.6 | 33.8 | 0.206 | 0.343 | 821 |
| 3x25+1x54.6 | 7 | 1.4 | 7 | 1.6 | 23.7 | 1.20 | 0.63 | 510 |
| 3x35+1x54.6 | 7 | 1.6 | 7 | 1.6 | 26.3 | 0.868 | 0.63 | 621 |
| 3x50+1x54.6 | 7 | 1.6 | 7 | 1.6 | 28.3 | 0.641 | 0.63 | 735 |
| 3x70+1x54.6 | 12 | 1.8 | 7 | 1.6 | 32.1 | 0.443 | 0.63 | 953 |
| 3x95+1x54.6 | 19 | 1.8 | 7 | 1.6 | 35.4 | 0.320 | 0.63 | 1194 |
| 3x70+1x70 | 12 | 1.8 | 7 | 1.5 | 32.6 | 0.443 | 0.50 | 988 |
| 3x95+1x70 | 19 | 1.8 | 7 | 1.5 | 35.8 | 0.320 | 0.50 | 1229 |
| 3x120+1x70 | 19 | 1.8 | 7 | 1.5 | 38.0 | 0.253 | 0.50 | 1443 |
| 3x120+1x95 | 19 | 1.8 | 19 | 1.6 | 39.3 | 0.253 | 0.343 | 1538 |
| 3x150+1x95 | 19 | 1.7 | 19 | 1.6 | 42.4 | 0.206 | 0.343 | 1781 |
| No. of Cores and Section Area | Phase Core | Neutral Core | Street Lighting Core | Approx. Diameter of Cable |
Max. DC. Resistance at 20℃ | Approx. Weight | |||||
| No. of Wires | Insulation Thickness | No. of Wires | Insulation Thickness | No. of Wires | Insulation Thickness | Phase | Neutral | Street Lighting | |||
| mm2 | No. | mm | No. | mm | No. | mm | mm | Ω/km | Ω/km | Ω/km | kg/km |
| 3x25+1x54.6+1x16 | 7 | 1.4 | 7 | 1.6 | 7 | 1.2 | 30.2 | 1.20 | 0.63 | 1.91 | 572 |
| 3x35+1x54.6+1x16 | 7 | 1.6 | 7 | 1.6 | 7 | 1.2 | 33.0 | 0.868 | 0.63 | 1.91 | 683 |
| 3x50+1x54.6+1x16 | 7 | 1.6 | 7 | 1.6 | 7 | 1.2 | 35.2 | 0.641 | 0.63 | 1.91 | 798 |
| 3x70+1x54.6+1x16 | 12 | 1.8 | 7 | 1.6 | 7 | 1.2 | 39.4 | 0.443 | 0.63 | 1.91 | 1015 |
| 3x70+1x54.6+1x25 | 12 | 1.8 | 7 | 1.6 | 7 | 1.4 | 39.4 | 0.443 | 0.63 | 1.20 | 1050 |
| 3x70+1x70+1x16 | 12 | 1.8 | 7 | 1.5 | 7 | 1.2 | 40.2 | 0.443 | 0.50 | 1.91 | 1050 |
| 3x95+1x70+1x16 | 19 | 1.8 | 7 | 1.5 | 7 | 1.2 | 43.8 | 0.320 | 0.50 | 1.91 | 1291 |
| 3x120+1x70+1x16 | 19 | 1.8 | 7 | 1.5 | 7 | 1.2 | 46.2 | 0.253 | 0.50 | 1.91 | 1505 |
| 3x120+1x95+1x16 | 19 | 1.8 | 19 | 1.6 | 7 | 1.2 | 48.4 | 0.253 | 0.343 | 1.91 | 1599 |
| 3x150+1x95+1x16 | 19 | 1.7 | 19 | 1.6 | 7 | 1.2 | 51.8 | 0.206 | 0.343 | 1.91 | 1842 |
| 3x25+1x54.6+2x16 | 7 | 1.4 | 7 | 1.6 | 7 | 1.2 | 30.2 | 1.20 | 0.63 | 1.91 | 637 |
| 3x35+1x54.6+2x16 | 7 | 1.6 | 7 | 1.6 | 7 | 1.2 | 33.0 | 0.868 | 0.63 | 1.91 | 748 |
| 3x50+1x54.6+2x16 | 7 | 1.6 | 7 | 1.6 | 7 | 1.2 | 35.2 | 0.641 | 0.63 | 1.91 | 862 |
| 3x70+1x54.6+2x16 | 12 | 1.8 | 7 | 1.6 | 7 | 1.2 | 39.4 | 0.443 | 0.63 | 1.91 | 1080 |
| 3x70+1x54.6+2x25 | 12 | 1.8 | 7 | 1.6 | 7 | 1.4 | 39.4 | 0.443 | 0.63 | 1.20 | 1148 |
| 3x70+1x70+2x16 | 12 | 1.8 | 7 | 1.5 | 7 | 1.2 | 40.2 | 0.443 | 0.50 | 1.91 | 1116 |
| 3x95+1x70+2x16 | 19 | 1.8 | 7 | 1.5 | 7 | 1.2 | 43.8 | 0.320 | 0.50 | 1.91 | 1356 |
| 3x120+1x70+2x16 | 19 | 1.8 | 7 | 1.5 | 7 | 1.2 | 46.2 | 0.253 | 0.50 | 1.91 | 1575 |
| 3x120+1x95+2x16 | 19 | 1.8 | 19 | 1.6 | 7 | 1.2 | 48.4 | 0.253 | 0.343 | 1.91 | 1664 |
| 3x150+1x95+2x16 | 19 | 1.7 | 19 | 1.6 | 7 | 1.2 | 51.8 | 0.206 | 0.343 | 1.91 | 1917 |
