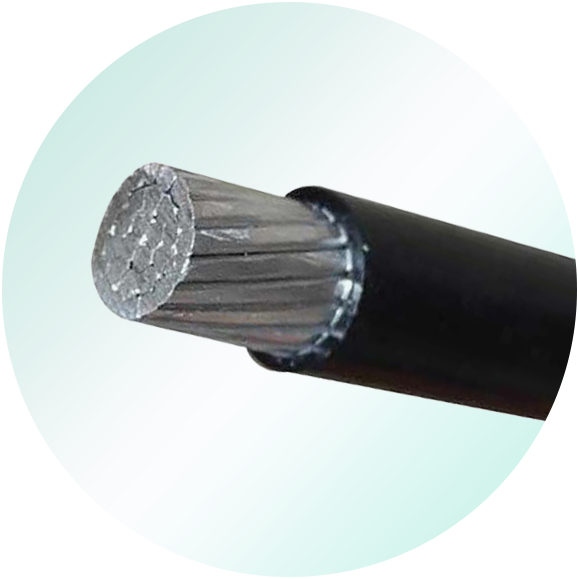

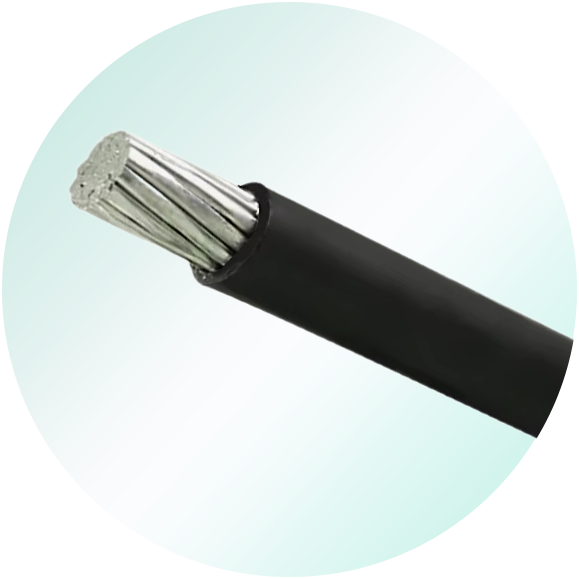

Aerial Insulated Cable(IEC)
The aerial insulated cable is primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.
Home > Products > Overhead Insulated Cable
The aerial insulated cable is primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.
The aerial insulated cable is primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 1000 volts phase - to - phase or less and at conductor temperatures not to exceed 70℃ for polyethylene (PE) and Polyvinyl chloride (PVC) insulated conductors or 90℃ for cross-linked polyethylene (XLPE) insulated conductors.

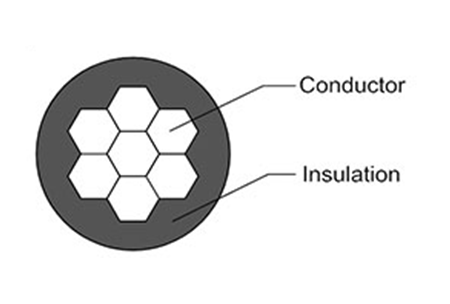

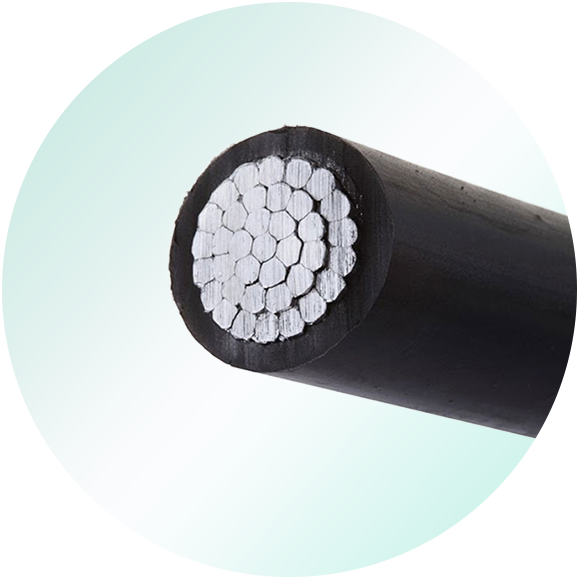

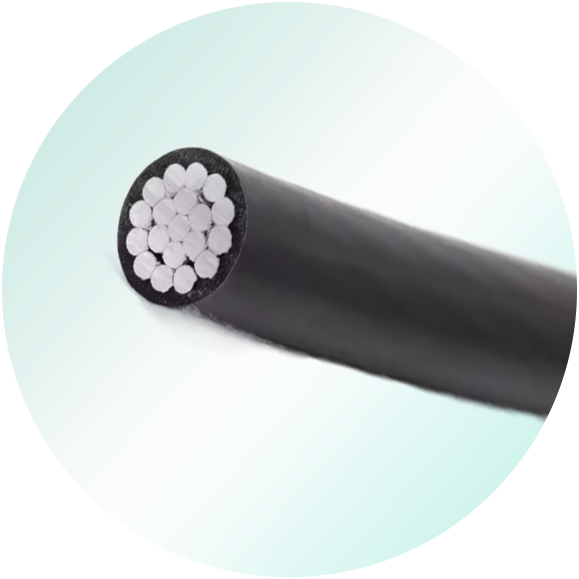

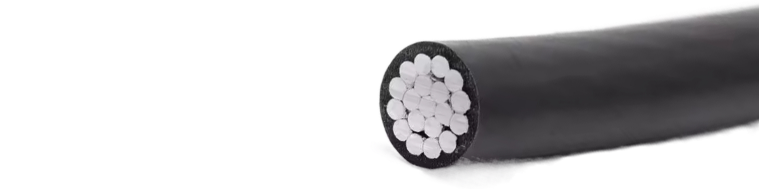

Conductor: Conductors are stranded,circular compacted or uncompacted aluminum, copper, aluminum-alloy, ACSR etc.
Insulation: Thermoplastic polyethylene(PE), polyvinyl chloride (PVC) , cross-linked polyethylene (XLPE), black color, weather and UV resistant.
This cable has UV-resistant properties, making it more durable and have a longer service life on overhead lines. Especially its a economic design and best suited for distribution line.
Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)
Conductors of insulated cables
（Equivalent to IEC 60502-1）Aerial Insulated Cables for Rated Voltages up to and Including 1kV
| Nominal Size | Min. No. of Wires | Approx. Diameter of Conductor |
Nominal Thickness of Insulation |
Max. Diameter of Cable | Max. DC Resistance at 20℃ |
Breaking Load | |
| Hard copper | Annealed copper | Hard copper | |||||
| mm2 | No. | mm | mm | mm | Ω/km | Ω/km | N |
| 10 | 6 | 3.8 | 1.0 | 6.5 | 1.906 | 1.83 | 3471 |
| 16 | 6 | 4.8 | 1.2 | 8.0 | 1.198 | 1.15 | 5486 |
| 25 | 6 | 6.0 | 1.2 | 9.4 | 0.749 | 0.727 | 8465 |
| 35 | 6 | 7.0 | 1.4 | 11.0 | 0.540 | 0.524 | 11731 |
| 50 | 6 | 8.4 | 1.4 | 12.3 | 0.399 | 0.387 | 16052 |
| 70 | 12 | 10.0 | 1.4 | 14.1 | 0.276 | 0.268 | 23461 |
| 95 | 15 | 11.6 | 1.6 | 16.5 | 0.199 | 0.193 | 31759 |
| 120 | 18 | 13.0 | 1.6 | 18.1 | 0.158 | 0.153 | 39911 |
| 150 | 18 | 14.6 | 1.8 | 20.2 | 0.128 | 0.124 | 49505 |
| 185 | 30 | 16.2 | 2.0 | 22.5 | 0.1021 | 0.0991 | 61846 |
| 240 | 34 | 18.4 | 2.2 | 25.6 | 0.0777 | 0.0754 | 79823 |
| Nominal Size | Min. No. of Wires | Approx. Diameter of Conductor |
Nominal Thickness of Insulation |
Max. Diameter of Cable | Max. DC Resistance at 20℃ |
Breaking Load | ||
| AAC | AAAC | AAC | AAAC | |||||
| mm2 | No. | mm | mm | mm | Ω/km | Ω/km | N | N |
| 10 | 6 | 3.8 | 1.0 | 6.5 | 3.08 | 3.574 | 1650 | 2514 |
| 16 | 6 | 4.8 | 1.2 | 8.0 | 1.91 | 2.217 | 2517 | 4022 |
| 25 | 6 | 6.0 | 1.2 | 9.4 | 1.20 | 1.393 | 3762 | 6284 |
| 35 | 6 | 7.0 | 1.4 | 11.0 | 0.868 | 1.007 | 5177 | 8800 |
| 50 | 6 | 8.4 | 1.4 | 12.3 | 0.641 | 0.744 | 7011 | 12569 |
| 70 | 12 | 10.0 | 1.4 | 14.1 | 0.443 | 0.514 | 10354 | 17596 |
| 95 | 15 | 11.6 | 1.6 | 16.5 | 0.320 | 0.371 | 13727 | 23880 |
| 120 | 15 | 13.0 | 1.6 | 18.1 | 0.253 | 0.294 | 17339 | 30164 |
| 150 | 15 | 14.6 | 1.8 | 20.2 | 0.206 | 0.239 | 21033 | 37706 |
| 185 | 30 | 16.2 | 2.0 | 22.5 | 0.164 | 0.190 | 26732 | 46503 |
| 240 | 30 | 18.4 | 2.2 | 25.6 | 0.125 | 0.145 | 34679 | 60329 |
| 300 | 30 | 20.8 | 2.2 | 27.2 | 0.100 | 0.116 | 43349 | 75411 |
| 400 | 53 | 23.2 | 2.2 | 30.7 | 0.0778 | 0.0904 | 55707 | 100548 |
