The long-time permissible working temperature of cable conductive core is not more than 90℃.It has good electrical and mechanical properties. The XLPE insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance.
The cable is used for low voltage distribution power networks, electricity supply in low voltage installation systems, in buildings and operation stations main power supply. They are well adapted to underground use in industrial applications with an additional mechanical protection. And the cable can be laying indoor, tunnel and underground. Able to bear external mechanical force, but unable to bear large pulling force.

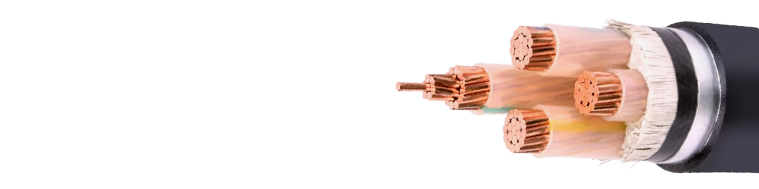

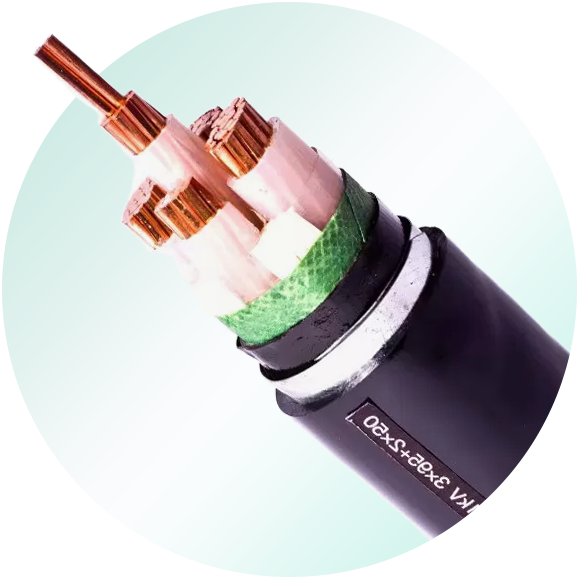

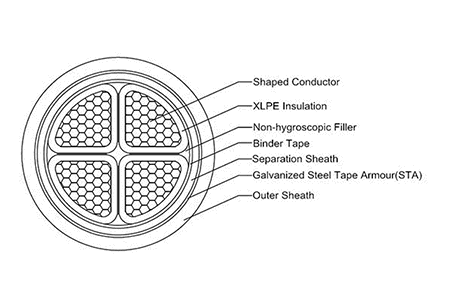

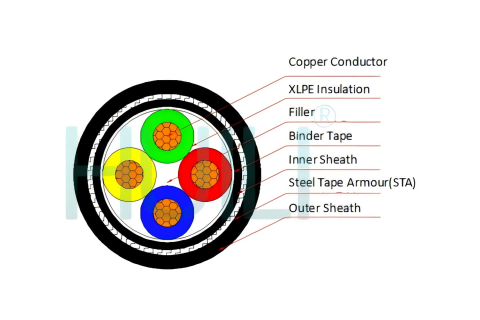

● Conductor: Copper, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Cross-linked polyethylene (XLPE)
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride (PVC)
● Armour: Steel tape
● Outer sheath: Polyvinyl chloride (PVC)
|
Cable Type |
Number of cores |
Nominal Section Area (mm2) |
|
Copper Conductor/XLPE insulation/STA armour/PVC sheath LV Cable |
2 |
1.5 ~ 400 |
|
3 |
||
|
3+1, 4 |
||
|
3+2, 4+1, 5 |
The long-time permissible working temperature of cable conductive core is not more than 90℃.It has good electrical and mechanical properties. The XLPE insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance. The PVC outer sheath allows an adequate resistance to oil and abrasion. The flame-retardant cable covers kinds of low-smoking low-halogen,low-smoking halogen free and three classes of A,B,C.
Conductors of Insulate Cables
Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter | Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 2×1.5 | 1.38 | / | 0.7 | / | 0.2 | 1.8 | 11.7 | 218 |
| 2×2.5 | 1.78 | / | 0.7 | / | 0.2 | 1.8 | 12.7 | 256 |
| 2×4 | 2.25 | / | 0.7 | / | 0.2 | 1.8 | 13.5 | 305 |
| 2×6 | 2.76 | / | 0.7 | / | 0.2 | 1.8 | 14.6 | 370 |
| 2×10 | 4.0 | / | 0.7 | / | 0.2 | 1.8 | 17.0 | 505 |
| 2×16 | 4.8 | / | 0.7 | / | 0.2 | 1.8 | 18.8 | 659 |
| 2×25 | 6.0 | / | 0.9 | / | 0.2 | 1.8 | 21.8 | 915 |
| 2×35 | 7.0 | / | 0.9 | / | 0.2 | 1.8 | 23.8 | 1147 |
| 2×50 | 8.3 | / | 1.0 | / | 0.2 | 1.8 | 26.8 | 1460 |
| 2×70 | 9.8 | / | 1.1 | / | 0.2 | 1.9 | 30.4 | 1939 |
| 2×95 | 11.7 | / | 1.1 | / | 0.2 | 2.0 | 35.1 | 2587 |
| 2×120 | 13.1 | / | 1.2 | / | 0.5 | 2.2 | 39.7 | 3555 |
| 2×150 | 14.6 | / | 1.4 | / | 0.5 | 2.3 | 43.7 | 4269 |
| 2×185 | 16.2 | / | 1.6 | / | 0.5 | 2.5 | 48.5 | 5250 |
| 2×240 | 18.5 | / | 1.7 | / | 0.5 | 2.6 | 44.0 | 6549 |
| 2×300 | 20.7 | / | 1.8 | / | 0.5 | 2.8 | 59.3 | 8038 |
| 2×400 | 23.5 | / | 2.0 | / | 0.5 | 3.0 | 66.1 | 10051 |
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter | Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 3×1.5 | 1.38 | / | 0.7 | / | 0.2 | 1.8 | 12.5 | 245 |
| 3×2.5 | 1.78 | / | 0.7 | / | 0.2 | 1.8 | 13.4 | 290 |
| 3×4 | 2.25 | / | 0.7 | / | 0.2 | 1.8 | 14.1 | 358 |
| 3×6 | 2.76 | / | 0.7 | / | 0.2 | 1.8 | 15.5 | 441 |
| 3×10 | 4.0 | / | 0.7 | / | 0.2 | 1.8 | 18.3 | 621 |
| 3×16 | 4.8 | / | 0.7 | / | 0.2 | 1.8 | 20.1 | 827 |
| 3×25 | 6.0 | / | 0.9 | / | 0.2 | 1.8 | 23.5 | 1170 |
| 3×35 | 7.0 | / | 0.9 | / | 0.2 | 1.8 | 25.6 | 1487 |
| 3×50 | 8.3 | / | 1.0 | / | 0.2 | 1.8 | 28.9 | 1922 |
| 3×70 | 9.8 | / | 1.1 | / | 0.2 | 2.0 | 33.4 | 2655 |
| 3×95 | 11.7 | / | 1.1 | / | 0.5 | 2.2 | 39.2 | 3884 |
| 3×120 | 13.1 | / | 1.2 | / | 0.5 | 2.3 | 43.0 | 4728 |
| 3×150 | 14.6 | / | 1.4 | / | 0.5 | 2.4 | 47.6 | 5745 |
| 3×185 | 16.2 | / | 1.6 | / | 0.5 | 2.6 | 52.3 | 7044 |
| 3×240 | 18.5 | / | 1.7 | / | 0.5 | 2.7 | 58.3 | 8922 |
| 3×300 | 20.7 | / | 1.8 | / | 0.5 | 2.9 | 63.8 | 10919 |
| 3×400 | 23.5 | / | 2.0 | / | 0.5 | 3.2 | 71.2 | 13770 |
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter | Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 4×1.5 | 1.38 | / | 0.7 | / | 0.2 | 1.8 | 13.3 | 278 |
| 4×2.5 | 1.78 | / | 0.7 | / | 0.2 | 1.8 | 14.3 | 336 |
| 4×4 | 2.25 | / | 0.7 | / | 0.2 | 1.8 | 15.5 | 420 |
| 4×6 | 2.76 | / | 0.7 | / | 0.2 | 1.8 | 16.7 | 525 |
| 4×10 | 4.0 | / | 0.7 | / | 0.2 | 1.8 | 19.8 | 750 |
| 4×16 | 4.8 | / | 0.7 | / | 0.2 | 1.8 | 21.5 | 1015 |
| 4×25 | 6.0 | / | 0.9 | / | 0.2 | 1.8 | 25.6 | 1455 |
| 4×35 | 7.0 | / | 0.9 | / | 0.2 | 1.8 | 28.0 | 1870 |
| 4×50 | 8.3 | / | 1.0 | / | 0.2 | 1.9 | 31.6 | 2440 |
| 4×70 | 9.8 | / | 1.1 | / | 0.2 | 2.1 | 37.0 | 3387 |
| 4×95 | 11.7 | / | 1.1 | / | 0.5 | 2.3 | 43.0 | 4907 |
| 4×120 | 13.1 | / | 1.2 | / | 0.5 | 2.4 | 47.2 | 6043 |
| 4×150 | 14.6 | / | 1.4 | / | 0.5 | 2.6 | 52.1 | 7331 |
| 4×185 | 16.2 | / | 1.6 | / | 0.5 | 2.7 | 57.8 | 9047 |
| 4×240 | 18.5 | / | 1.7 | / | 0.5 | 2.9 | 64.4 | 11449 |
| 4×300 | 20.7 | / | 1.8 | / | 0.5 | 3.1 | 70.2 | 14040 |
| 4×400 | 23.5 | / | 2.0 | / | 0.5 | 3.4 | 79.3 | 17835 |
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter | Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 5×1.5 | 1.38 | / | 0.7 | / | 0.2 | 1.8 | 14.0 | 311 |
| 5×2.5 | 1.78 | / | 0.7 | / | 0.2 | 1.8 | 15.1 | 381 |
| 5×4 | 2.25 | / | 0.7 | / | 0.2 | 1.8 | 16.4 | 482 |
| 5×6 | 2.76 | / | 0.7 | / | 0.2 | 1.8 | 17.7 | 613 |
| 5×10 | 4.0 | / | 0.7 | / | 0.2 | 1.8 | 21.3 | 886 |
| 5×16 | 4.8 | / | 0.7 | / | 0.2 | 1.8 | 23.4 | 1210 |
| 5×25 | 6.0 | / | 0.9 | / | 0.2 | 1.8 | 27.8 | 1748 |
| 5×35 | 7.0 | / | 0.9 | / | 0.2 | 1.9 | 30.5 | 2274 |
| 5×50 | 8.3 | / | 1.0 | / | 0.2 | 2.0 | 35.2 | 3029 |
| 5×70 | 9.8 | / | 1.1 | / | 0.5 | 2.3 | 42.0 | 4551 |
| 5×95 | 11.7 | / | 1.1 | / | 0.5 | 2.4 | 47.5 | 6003 |
| 5×120 | 13.1 | / | 1.2 | / | 0.5 | 2.5 | 52.1 | 7354 |
| 5×150 | 14.6 | / | 1.4 | / | 0.5 | 2.7 | 57.9 | 8996 |
| 5×185 | 16.2 | / | 1.6 | / | 0.5 | 2.9 | 63.8 | 11071 |
| 5×240 | 18.5 | / | 1.7 | / | 0.5 | 3.1 | 70.9 | 14039 |
| 5×300 | 20.7 | / | 1.8 | / | 0.5 | 3.4 | 77.9 | 17361 |
| 5×400 | 23.5 | / | 2.0 | / | 0.8 | 3.7 | 88.8 | 22820 |
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter | Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 3×2.5+1×1.5 | 1.78 | 1.38 | 0.7 | 0.7 | 0.2 | 1.8 | 13.4 | 325 |
| 3×4+1×2.5 | 2.25 | 1.78 | 0.7 | 0.7 | 0.2 | 1.8 | 14.5 | 400 |
| 3×6+1×4 | 2.76 | 2.25 | 0.7 | 0.7 | 0.2 | 1.8 | 15.7 | 497 |
| 3×10+1×6 | 4.0 | 2.76 | 0.7 | 0.7 | 0.2 | 1.8 | 18.3 | 694 |
| 3×16+1×10 | 4.8 | 4.0 | 0.7 | 0.7 | 0.2 | 1.8 | 20.5 | 949 |
| 3×25+1×16 | 6.0 | 4.8 | 0.9 | 0.7 | 0.2 | 1.8 | 23.9 | 1344 |
| 3×35+1×16 | 7.0 | 4.8 | 0.9 | 0.7 | 0.2 | 1.8 | 25.7 | 1650 |
| 3×50+1×25 | 8.3 | 6.0 | 1.0 | 0.9 | 0.2 | 1.9 | 29.6 | 2194 |
| 3×70+1×35 | 9.8 | 7.0 | 1.1 | 0.9 | 0.2 | 2.0 | 34.2 | 3005 |
| 3×95+1×50 | 11.7 | 8.3 | 1.1 | 1.0 | 0.5 | 2.2 | 40.0 | 4366 |
| 3×120+1×70 | 13.1 | 9.8 | 1.2 | 1.1 | 0.5 | 2.3 | 44.1 | 5424 |
| 3×150+1×70 | 14.6 | 9.8 | 1.4 | 1.1 | 0.5 | 2.5 | 48.4 | 6432 |
| 3×185+1×95 | 16.2 | 11.7 | 1.6 | 1.1 | 0.5 | 2.6 | 53.3 | 7948 |
| 3×240+1×120 | 18.5 | 13.1 | 1.7 | 1.2 | 0.5 | 2.8 | 59.6 | 10091 |
| 3×300+1×150 | 20.7 | 14.6 | 1.8 | 1.4 | 0.5 | 3.0 | 65.5 | 12359 |
| 3×400+1×185 | 23.5 | 16.2 | 2.0 | 1.6 | 0.5 | 3.2 | 73.3 | 15608 |
| 3×2.5+2×1.5 | 1.78 | 1.38 | 0.7 | 0.7 | 0.2 | 1.8 | 14.5 | 353 |
| 3×4+2×2.5 | 2.25 | 1.78 | 0.7 | 0.7 | 0.2 | 1.8 | 15.8 | 441 |
| 3×6+2×4 | 2.76 | 2.25 | 0.7 | 0.7 | 0.2 | 1.8 | 17.2 | 559 |
| 3×10+2×6 | 4.0 | 2.76 | 0.7 | 0.7 | 0.2 | 1.8 | 19.8 | 773 |
| 3×16+2×10 | 4.8 | 4.0 | 0.7 | 0.7 | 0.2 | 1.8 | 22.4 | 1079 |
| 3×25+2×16 | 6.0 | 4.8 | 0.9 | 0.7 | 0.2 | 1.8 | 25.8 | 1529 |
| 3×35+2×16 | 7.0 | 4.8 | 0.9 | 0.7 | 0.2 | 1.8 | 27.6 | 1833 |
| 3×50+2×25 | 8.3 | 6.0 | 1.0 | 0.9 | 0.2 | 1.9 | 32.6 | 2522 |
| 3×70+2×35 | 9.8 | 7.0 | 1.1 | 0.9 | 0.2 | 2.1 | 36.8 | 3397 |
| 3×95+2×50 | 11.7 | 8.3 | 1.1 | 1.0 | 0.5 | 2.3 | 42.9 | 4914 |
| 3×120+2×70 | 13.1 | 9.8 | 1.2 | 1.1 | 0.5 | 2.4 | 48.1 | 6233 |
| 3×150+2×70 | 14.6 | 9.8 | 1.4 | 1.1 | 0.5 | 2.5 | 51.2 | 7163 |
| 3×185+2×95 | 16.2 | 11.7 | 1.6 | 1.1 | 0.5 | 2.7 | 57.4 | 9035 |
| 3×240+2×120 | 18.5 | 13.1 | 1.7 | 1.2 | 0.5 | 2.9 | 63.5 | 11360 |
| 3×300+2×150 | 20.7 | 14.6 | 1.8 | 1.4 | 0.5 | 3.1 | 69.8 | 13915 |
| 3×400+2×185 | 23.5 | 16.2 | 2.0 | 1.6 | 0.5 | 3.4 | 78.0 | 17575 |
| 4×2.5+1×1.5 | 1.78 | 1.38 | 0.7 | 0.7 | 0.2 | 1.8 | 15.0 | 366 |
| 4×4+1×2.5 | 2.25 | 1.78 | 0.7 | 0.7 | 0.2 | 1.8 | 16.5 | 460 |
| 4×6+1×4 | 2.76 | 2.25 | 0.7 | 0.7 | 0.2 | 1.8 | 17.8 | 588 |
| 4×10+1×6 | 4.0 | 2.76 | 0.7 | 0.7 | 0.2 | 1.8 | 20.5 | 821 |
| 4×16+1×10 | 4.8 | 4.0 | 0.7 | 0.7 | 0.2 | 1.8 | 23.0 | 1147 |
| 4×25+1×16 | 6.0 | 4.8 | 0.9 | 0.7 | 0.2 | 1.8 | 26.4 | 1644 |
| 4×35+1×16 | 7.0 | 4.8 | 0.9 | 0.7 | 0.2 | 1.8 | 28.7 | 2049 |
| 4×50+1×25 | 8.3 | 6.0 | 1.0 | 0.9 | 0.2 | 2.0 | 34.3 | 2768 |
| 4×70+1×35 | 9.8 | 7.0 | 1.1 | 0.9 | 0.5 | 2.2 | 40.5 | 4144 |
| 4×95+1×50 | 11.7 | 8.3 | 1.1 | 1.0 | 0.5 | 2.3 | 44.1 | 5422 |
| 4×120+1×70 | 13.1 | 9.8 | 1.2 | 1.1 | 0.5 | 2.5 | 50.0 | 6804 |
| 4×150+1×70 | 14.6 | 9.8 | 1.4 | 1.1 | 0.5 | 2.6 | 54.1 | 8045 |
| 4×185+1×95 | 16.2 | 11.7 | 1.6 | 1.1 | 0.5 | 2.8 | 60.9 | 10050 |
| 4×240+1×120 | 18.5 | 13.1 | 1.7 | 1.2 | 0.5 | 3.0 | 66.7 | 12687 |
| 4×300+1×150 | 20.7 | 14.6 | 1.8 | 1.4 | 0.5 | 3.2 | 74.5 | 15666 |
| 4×400+1×185 | 23.5 | 16.2 | 2.0 | 1.6 | 0.8 | 3.6 | 84.3 | 20621 |
