N2XY (YJV) CU/XLPE/PVC CABLE 0.6/1kV
N2XY (YJV) CU/XLPE/PVC CABLE 0.6/1kV
N2XY (YJV) CU/XLPE/PVC CABLE 0.6/1kV
N2XY (YJV) CU/XLPE/PVC CABLE 0.6/1kV

N2XY (YJV) CU/XLPE/PVC CABLE 0.6/1kV

The long-time permissible working temperature of cable conductive core is not more than 90℃.It has good electrical and mechanical properties. The XLPE insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance.

Send E-mail Inquiry Now
Application Construction Characteristics Parameter Related Products

APPLICATION

The cable is used for low voltage distribution power networks, electricity supply in low voltage installation systems, in buildings and operation stations main power supply. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

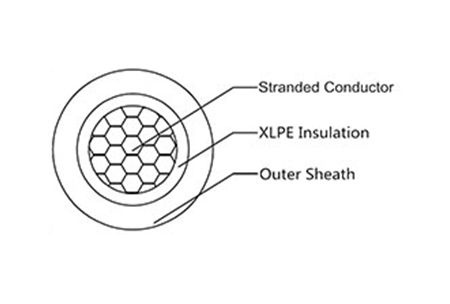

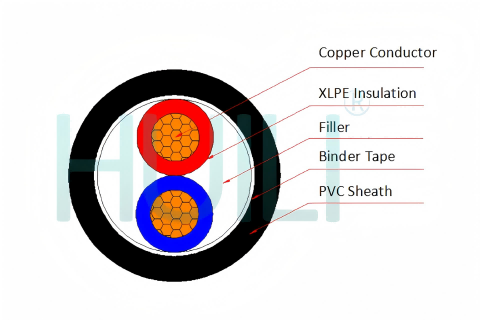

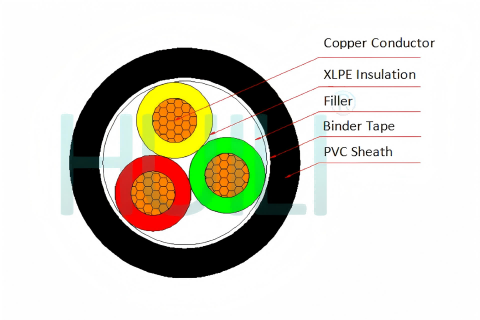

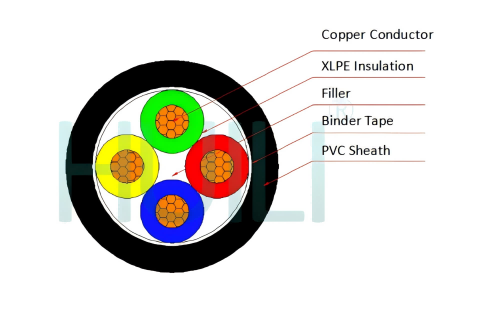

Construction

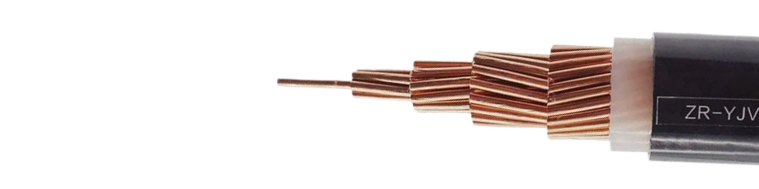

N2XY-YJV-22

● Conductor: Copper, class 1 solid or class 2 stranded, circular or circular compacted conductors
● Insulation: Cross-linked polyethylene (XLPE)
● Outer sheath: Polyvinyl chloride (PVC)

  • N2XY-YJV-19
  • N2XY-YJV-19
  • N2XY-YJV-19



Cable Type

Number of cores

Nominal Section Area (mm2)

Copper Conductor/XLPE insulation/PVC sheath
LV Cable

1

1.5 ~ 300

2

3

3+1, 4

3+2, 4+1, 5



CHARACTERISTICS

The long-time permissible working temperature of cable conductive core is not more than 90℃.It has good electrical and mechanical properties. The XLPE insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance. The PVC outer sheath allows an adequate resistance to oil and abrasion. The flame-retardant cable covers kinds of low-smoking low-halogen,low-smoking halogen free and three classes of A,B,C.

STANDARD

  • IEC 60228

    Conductors of Insulate Cables

  • IEC 60502-1

    Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

Product parameters

No.of Cores
and Nominal
Cross Section		 Approx.Conductor Diameter Nominal Insulation
Thickness		 Nominal
Sheath
Thickness		 Approx.Overall
Diameter		 Approx.Weight of Cable
Phase Earth Phase Earth
No. ×mm² mm mm mm mm mm mm kg/km
1×1.5 1.38 / 0.7  / 1.4  5.7  45
1×2.5 1.78 / 0.7  / 1.4  6.1  57
1×4 2.25 / 0.7  / 1.4  6.5  74
1×6 2.76 / 0.7  / 1.4  7.0  96
1×10 4.0  / 0.7  / 1.4  8.3  142
1×16 4.8 / 0.7  / 1.4  9.1  201
1×25 6.0  / 0.9  / 1.4  10.7  297
1×35 7.0  / 0.9  / 1.4  11.7  390
1×50 8.3 / 1.0  / 1.4  13.2  514
1×70 9.8 / 1.1  / 1.4  14.9  715
1×95 11.7 / 1.1  / 1.5  16.9  970
1×120 13.1 / 1.2  / 1.5  18.5  1206
1×150 14.6 / 1.4  / 1.6  20.6  1485
1×185 16.2 / 1.6  / 1.6  22.6  1849
1×240 18.5 / 1.7  / 1.7  25.3  2387
1×300 20.7 / 1.8  / 1.8  27.9  2972
1×400 23.5 / 2.0  / 1.9  31.3  3804
1×500 26.4 / 2.2  / 2.0  34.8  4803
1×630 30.1 / 2.4  / 2.2  39.3  6198
1×800 34.1 / 2.6  / 2.3  43.9  7965
No.of Cores
and Nominal
Cross Section		 Approx.Conductor Diameter Nominal Insulation
Thickness		 Nominal
Sheath
Thickness		 Approx.Overall
Diameter		 Approx.Weight of Cable
Phase Earth Phase Earth
No. ×mm² mm mm mm mm mm mm kg/km
2×1.5 1.38 / 0.7  / 1.8  9.5  107
2×2.5 1.78 / 0.7  / 1.8  10.3  133
2×4 2.25 / 0.7  / 1.8  11.3  173
2×6 2.76 / 0.7  / 1.8  12.3  223
2×10 4.0  / 0.7  / 1.8  14.8  332
2×16 4.8 / 0.7  / 1.8  16.4  463
2×25 6.0  / 0.9  / 1.8  19.6  680
2×35 7.0  / 0.9  / 1.8  21.6  888
2×50 8.3 / 1.0  / 1.8  24.6  1167
2×70 9.8 / 1.1  / 1.8  28.0  1588
2×95 11.7 / 1.1  / 2.0  32.3  2162
2×120 13.1 / 1.2  / 2.1  35.7  2695
2×150 14.6 / 1.4  / 2.2  39.7  3314
2×185 16.2 / 1.6  / 2.3  43.9  4129
2×240 18.5 / 1.7  / 2.5  49.3  5324
2×300 20.7 / 1.8  / 2.7  54.5  6623
2×400 23.5 / 2.0  / 2.9  61.3  8471
No.of Cores
and Nominal
Cross Section		 Approx.Conductor Diameter Nominal Insulation
Thickness		 Nominal
Sheath
Thickness		 Approx.Overall
Diameter		 Approx.Weight of Cable
Phase Earth Phase Earth
No. ×mm² mm mm mm mm mm mm kg/km
3×1.5 1.38 / 0.7  / 1.8  10.0  127
3×2.5 1.78 / 0.7  / 1.8  10.8  163
3×4 2.25 / 0.7  / 1.8  11.8  217
3×6 2.76 / 0.7  / 1.8  12.9  287
3×10 4.0  / 0.7  / 1.8  15.7  433
3×16 4.8 / 0.7  / 1.8  17.4  618
3×25 6.0  / 0.9  / 1.8  20.8  920
3×35 7.0  / 0.9  / 1.8  23.0  1214
3×50 8.3 / 1.0  / 1.8  26.2  1606
3×70 9.8 / 1.1  / 1.9  30.4  2242
3×95 11.7 / 1.1  / 2.0  34.5  3030
3×120 13.1 / 1.2  / 2.1  38.2  3787
3×150 14.6 / 1.4  / 2.3  42.7  4681
3×185 16.2 / 1.6  / 2.4  47.2  5844
3×240 18.5 / 1.7  / 2.6  53.0  7548
3×300 20.7 / 1.8  / 2.8  58.6  9401
3×400 23.5 / 2.0  / 3.1  66.1  12069
No.of Cores
and Nominal
Cross Section		 Approx.Conductor Diameter Nominal Insulation
Thickness		 Nominal
Sheath
Thickness		 Approx.Overall
Diameter		 Approx.Weight of Cable
Phase Earth Phase Earth
No. ×mm² mm mm mm mm mm mm kg/km
4×1.5 1.38 / 0.7  / 1.8  10.7  152
4×2.5 1.78 / 0.7  / 1.8  11.6  197
4×4 2.25 / 0.7  / 1.8  12.8  268
4×6 2.76 / 0.7  / 1.8  14.0  358
4×10 4.0  / 0.7  / 1.8  17.1  546
4×16 4.8 / 0.7  / 1.8  19.0  788
4×25 6.0  / 0.9  / 1.8  22.9  1181
4×35 7.0  / 0.9  / 1.8  25.3  1567
4×50 8.3 / 1.0  / 1.9  29.1  2091
4×70 9.8 / 1.1  / 2.0  33.7  2928
4×95 11.7 / 1.1  / 2.1  38.3  3964
4×120 13.1 / 1.2  / 2.3  42.6  4978
4×150 14.6 / 1.4  / 2.4  47.4  6126
4×185 16.2 / 1.6  / 2.6  52.6  7679
4×240 18.5 / 1.7  / 2.8  59.1  9920
4×300 20.7 / 1.8  / 3.0  65.3  12357
4×400 23.5 / 2.0  / 3.3  73.6  15860
No.of Cores
and Nominal
Cross Section		 Approx.Conductor Diameter Nominal Insulation
Thickness		 Nominal
Sheath
Thickness		 Approx.Overall
Diameter		 Approx.Weight of Cable
Phase Earth Phase Earth
No. ×mm² mm mm mm mm mm mm kg/km
5×1.5 1.38 / 0.7  / 1.8 11.5  177
5×2.5 1.78 / 0.7  / 1.8 12.5  234
5×4 2.25 / 0.7  / 1.8 13.8  320
5×6 2.76 / 0.7  / 1.8 15.2  431
5×10 4.0  / 0.7  / 1.8 18.6  664
5×16 4.8 / 0.7  / 1.8 20.7  963
5×25 6.0  / 0.9  / 1.8 25.1  1449
5×35 7.0  / 0.9  / 1.8 27.8  1929
5×50 8.3 / 1.0  / 2.0  32.5  2602
5×70 9.8 / 1.1  / 2.1 37.3  3632
5×95 11.7 / 1.1  / 2.3 42.6  4940
5×120 13.1 / 1.2  / 2.4 47.1  6179
5×150 14.6 / 1.4  / 2.6 52.6  7630
5×185 16.2 / 1.6  / 2.8 58.4  9561
5×240 18.5 / 1.7  / 3.0  65.6  12350
5×300 20.7 / 1.8  / 3.2 72.4  15383
5×400 23.5 / 2.0  / 3.6 81.9  19776
No.of Cores
and Nominal
Cross Section		 Approx.Conductor Diameter Nominal Insulation
Thickness		 Nominal
Sheath
Thickness		 Approx.Overall
Diameter		 Approx.Weight of Cable
Phase Earth Phase Earth
No. ×mm² mm mm mm mm mm mm kg/km
3×2.5+1×1.5 1.78 1.38 0.7  0.7  1.8  11.4  186
3×4+1×2.5 2.25 1.78 0.7  0.7  1.8  12.5  250
3×6+1×4 2.76 2.25 0.7  0.7  1.8  13.7  335
3×10+1×6 4.0  2.76 0.7  0.7  1.8  16.3  499
3×16+1×10 4.8 4.0  0.7  0.7  1.8  18.5  727
3×25+1×16 6.0  4.8 0.9  0.7  1.8  21.9  1081
3×35+1×16 7.0  4.8 0.9  0.7  1.8  23.7  1368
3×50+1×25 8.3 6.0  1.0  0.9  1.8  27.4  1851
3×70+1×35 9.8 7.0  1.1  0.9  1.9  31.6  2574
3×95+1×50 11.7 8.3 1.1  1.0  2.1  36.2  3495
3×120+1×70 13.1 9.8 1.2  1.1  2.2  40.3  4454
3×150+1×70 14.6 9.8 1.4  1.1  2.3  44.0  5311
3×185+1×95 16.2 11.7 1.6  1.1  2.5  49.1  6738
3×240+1×120 18.5 13.1 1.7  1.2  2.7  55.0  8667
3×300+1×150 20.7 14.6 1.8  1.4  2.9  60.9  10785
3×400+1×185 23.5 16.2 2.0  1.6  3.1  68.3  13769
3×2.5+2×1.5 1.78 1.38 0.7  0.7  1.8 12.1  211
3×4+2×2.5 2.25 1.78 0.7  0.7  1.8 13.3  285
3×6+2×4 2.76 2.25 0.7  0.7  1.8 14.6  387
3×10+2×6 4.0  2.76 0.7  0.7  1.8 17.2  569
3×16+2×10 4.8 4.0  0.7  0.7  1.8 19.9  843
3×25+2×16 6.0  4.8 0.9  0.7  1.8 23.3  1252
3×35+2×16 7.0  4.8 0.9  0.7  1.8 25.0  1536
3×50+2×25 8.3 6.0  1.0  0.9  1.9 29.6  2135
3×70+2×35 9.8 7.0  1.1  0.9  2.0  33.6  2941
3×95+2×50 11.7 8.3 1.1  1.0  2.2 38.6  3988
3×120+2×70 13.1 9.8 1.2  1.1  2.3 43.2  5153
3×150+2×70 14.6 9.8 1.4  1.1  2.4 46.5  6005
3×185+2×95 16.2 11.7 1.6  1.1  2.6 52.1  7685
3×240+2×120 18.5 13.1 1.7  1.2  2.8 58.2  9854
3×300+2×150 20.7 14.6 1.8  1.4  3.0  64.6  12250
3×400+2×185 23.5 16.2 2.0  1.6  3.2 72.3  15603
4×2.5+1×1.5 1.78 1.38 0.7  0.7  1.8 12.3  222
4×4+1×2.5 2.25 1.78 0.7  0.7  1.8 13.5  303
4×6+1×4 2.76 2.25 0.7  0.7  1.8 14.9  409
4×10+1×6 4.0  2.76 0.7  0.7  1.8 17.9  616
4×16+1×10 4.8 4.0  0.7  0.7  1.8 20.3  903
4×25+1×16 6.0  4.8 0.9  0.7  1.8 24.2  1350
4×35+1×16 7.0  4.8 0.9  0.7  1.8 26.4  1732
4×50+1×25 8.3 6.0  1.0  0.9  1.9 31.0  2360
4×70+1×35 9.8 7.0  1.1  0.9  2.1 35.6  3293
4×95+1×50 11.7 8.3 1.1  1.0  2.2 40.5  4453
4×120+1×70 13.1 9.8 1.2  1.1  2.4 45.2  5674
4×150+1×70 14.6 9.8 1.4  1.1  2.5 49.5  6813
4×185+1×95 16.2 11.7 1.6  1.1  2.7 55.2  8618
4×240+1×120 18.5 13.1 1.7  1.2  2.9 61.9  11096
4×300+1×150 20.7 14.6 1.8  1.4  3.1 68.5  13810
4×400+1×185 23.5 16.2 2.0  1.6  3.4 77.1  17679
