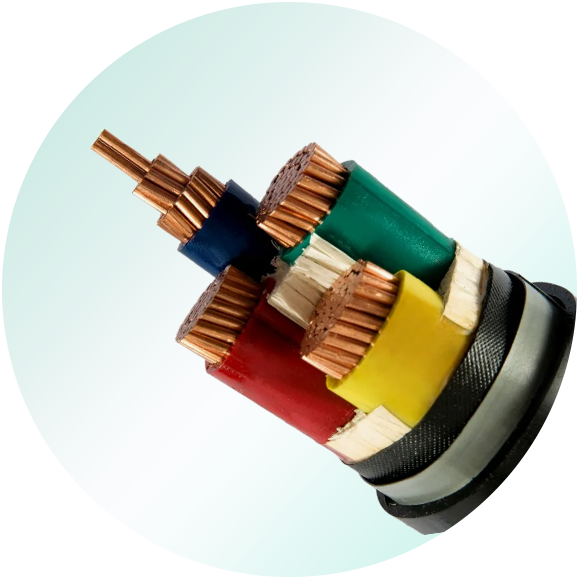

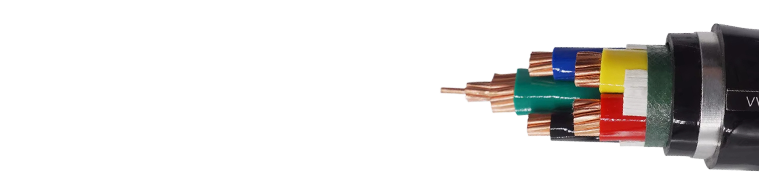

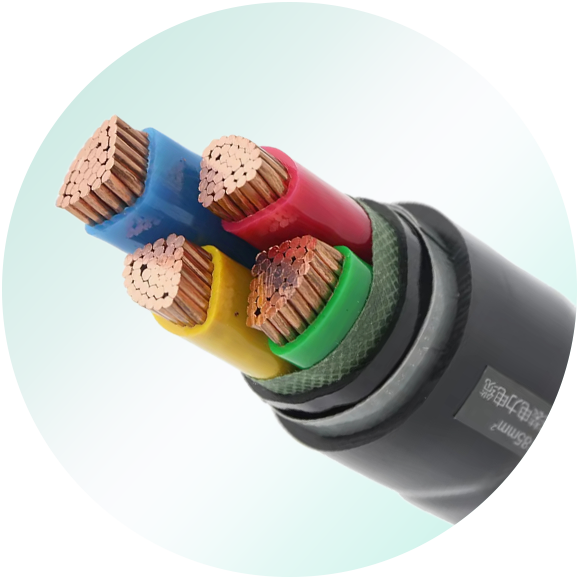

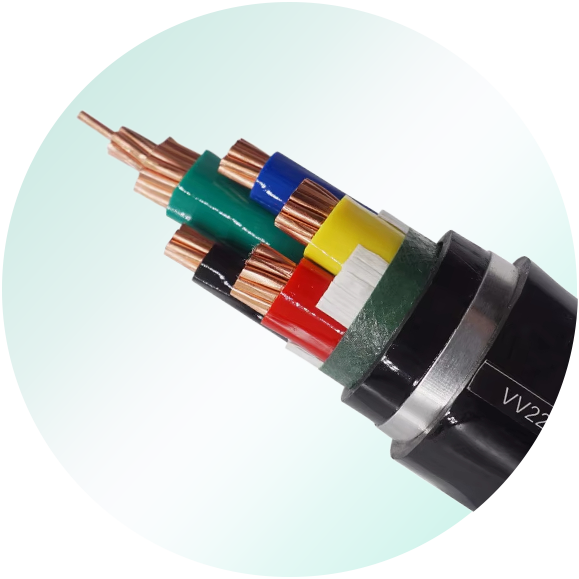

NYBY (VV22) CU/PVC/STA/PVC Cable 0.6/1kV
The cable has good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. The long-time permissible working temperature of cable conductive core is not more than 70℃.
Home > Products > Low Voltage Power Cable
The cable has good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. The long-time permissible working temperature of cable conductive core is not more than 70℃.
The cable is used for low voltage distribution power networks, electricity supply in low voltage installation systems, in buildings and operation stations main power supply. They are well adapted to underground use in industrial applications with an additional mechanical protection. And the cable can be laying indoor, tunnel and underground. Able to bear external mechanical force, but unable to bear large pulling force.

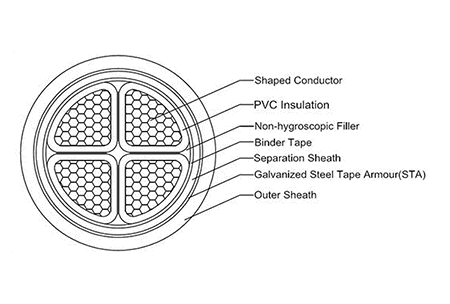

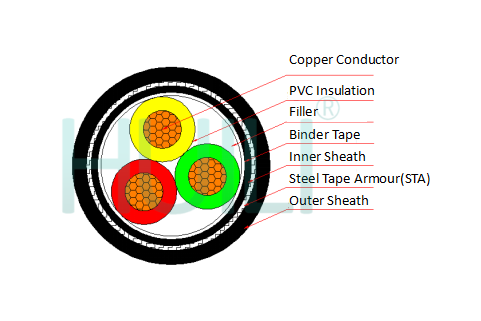

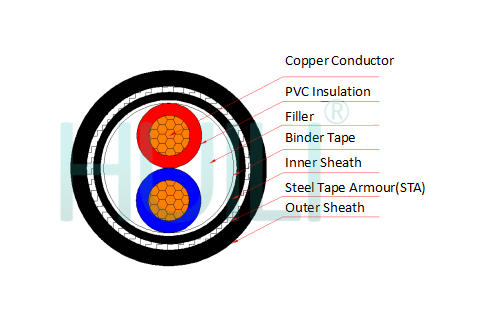

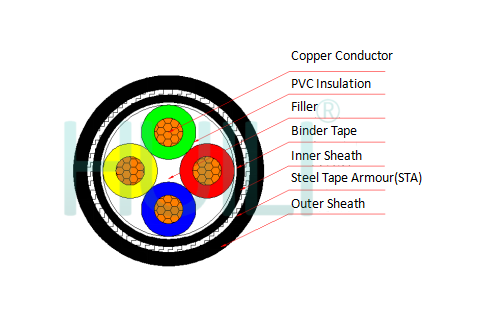

● Conductor: Copper, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Polyvinyl chloride (PVC)
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride (PVC)
● Armour: Steel tape
● Outer sheath: Polyvinyl chloride (PVC)
|
Cable Type |
Number of cores |
Nominal Section Area (mm2) |
|
Copper Conductor/PVC insulation/STA armour/PVC sheath LV Cable |
2 |
1.5 ~ 400 |
|
3 |
||
|
3+1, 4 |
||
|
3+2, 4+1, 5 |
The cable has good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. The long-time permissible working temperature of cable conductive core is not more than 70℃. The PVC outer sheath allows an adequate resistance to oil and abrasion. And the cable with light weight, good bending property and easy installation and maintenance.
Conductors of Insulate Cables
Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter | Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 2×1.5 | 1.38 | / | 0.8 | / | 0.2 | 1.8 | 12.4 | 235 |
| 2×2.5 | 1.78 | / | 0.8 | / | 0.2 | 1.8 | 13.2 | 273 |
| 2×4 | 2.25 | / | 1.0 | / | 0.2 | 1.8 | 15.0 | 352 |
| 2×6 | 2.76 | / | 1.0 | / | 0.2 | 1.8 | 16.0 | 418 |
| 2×10 | 4.0 | / | 1.0 | / | 0.2 | 1.8 | 18.5 | 564 |
| 2×16 | 4.8 | / | 1.0 | / | 0.2 | 1.8 | 20.1 | 719 |
| 2×25 | 6.0 | / | 1.2 | / | 0.2 | 1.8 | 23.3 | 989 |
| 2×35 | 7.0 | / | 1.2 | / | 0.2 | 1.8 | 25.3 | 1228 |
| 2×50 | 8.3 | / | 1.4 | / | 0.2 | 1.8 | 28.7 | 1579 |
| 2×70 | 9.8 | / | 1.4 | / | 0.2 | 1.9 | 32.6 | 2092 |
| 2×95 | 11.7 | / | 1.6 | / | 0.5 | 2.1 | 38.6 | 3142 |
| 2×120 | 13.1 | / | 1.6 | / | 0.5 | 2.2 | 41.6 | 3741 |
| 2×150 | 14.6 | / | 1.8 | / | 0.5 | 2.4 | 46.2 | 4544 |
| 2×185 | 16.2 | / | 2.0 | / | 0.5 | 2.5 | 50.4 | 5492 |
| 2×240 | 18.5 | / | 2.2 | / | 0.5 | 2.7 | 56.2 | 6892 |
| 2×300 | 20.7 | / | 2.4 | / | 0.5 | 2.9 | 62.2 | 8466 |
| 2×400 | 23.5 | / | 2.6 | / | 0.5 | 3.1 | 69.0 | 10546 |
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter | Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 3×1.5 | 1.38 | / | 0.8 | / | 0.2 | 1.8 | 12.9 | 270 |
| 3×2.5 | 1.78 | / | 0.8 | / | 0.2 | 1.8 | 13.8 | 318 |
| 3×4 | 2.25 | / | 1.0 | / | 0.2 | 1.8 | 15.6 | 418 |
| 3×6 | 2.76 | / | 1.0 | / | 0.2 | 1.8 | 16.7 | 505 |
| 3×10 | 4.0 | / | 1.0 | / | 0.2 | 1.8 | 19.5 | 695 |
| 3×16 | 4.8 | / | 1.0 | / | 0.2 | 1.8 | 21.2 | 908 |
| 3×25 | 6.0 | / | 1.2 | / | 0.2 | 1.8 | 24.6 | 1271 |
| 3×35 | 7.0 | / | 1.2 | / | 0.2 | 1.8 | 26.8 | 1601 |
| 3×50 | 8.3 | / | 1.4 | / | 0.2 | 1.9 | 30.7 | 2090 |
| 3×70 | 9.8 | / | 1.4 | / | 0.2 | 2.0 | 34.8 | 2807 |
| 3×95 | 11.7 | / | 1.6 | / | 0.5 | 2.2 | 41.2 | 4143 |
| 3×120 | 13.1 | / | 1.6 | / | 0.5 | 2.3 | 44.4 | 4974 |
| 3×150 | 14.6 | / | 1.8 | / | 0.5 | 2.5 | 49.3 | 6057 |
| 3×185 | 16.2 | / | 2.0 | / | 0.5 | 2.6 | 53.8 | 7375 |
| 3×240 | 18.5 | / | 2.2 | / | 0.5 | 2.8 | 60.4 | 9384 |
| 3×300 | 20.7 | / | 2.4 | / | 0.5 | 3.0 | 66.5 | 11487 |
| 3×400 | 23.5 | / | 2.6 | / | 0.5 | 3.3 | 74.4 | 14507 |
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter | Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 4×1.5 | 1.38 | / | 0.8 | / | 0.2 | 1.8 | 14.0 | 299 |
| 4×2.5 | 1.78 | / | 0.8 | / | 0.2 | 1.8 | 14.9 | 359 |
| 4×4 | 2.25 | / | 1.0 | / | 0.2 | 1.8 | 17.0 | 483 |
| 4×6 | 2.76 | / | 1.0 | / | 0.2 | 1.8 | 18.3 | 594 |
| 4×10 | 4.0 | / | 1.0 | / | 0.2 | 1.8 | 21.3 | 833 |
| 4×16 | 4.8 | / | 1.0 | / | 0.2 | 1.8 | 23.3 | 1108 |
| 4×25 | 6.0 | / | 1.2 | / | 0.2 | 1.8 | 27.1 | 1572 |
| 4×35 | 7.0 | / | 1.2 | / | 0.2 | 1.9 | 29.7 | 2013 |
| 4×50 | 8.3 | / | 1.4 | / | 0.2 | 2.0 | 34.8 | 2692 |
| 4×70 | 9.8 | / | 1.4 | / | 0.5 | 2.2 | 40.0 | 3961 |
| 4×95 | 11.7 | / | 1.6 | / | 0.5 | 2.4 | 46.1 | 5289 |
| 4×120 | 13.1 | / | 1.6 | / | 0.5 | 2.5 | 49.7 | 6371 |
| 4×150 | 14.6 | / | 1.8 | / | 0.5 | 2.6 | 54.5 | 7688 |
| 4×185 | 16.2 | / | 2.0 | / | 0.5 | 2.8 | 60.1 | 9489 |
| 4×240 | 18.5 | / | 2.2 | / | 0.5 | 3.0 | 67.1 | 12021 |
| 4×300 | 20.7 | / | 2.4 | / | 0.5 | 3.2 | 74.2 | 14834 |
| 4×400 | 23.5 | / | 2.6 | / | 0.5 | 3.5 | 82.5 | 18668 |
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter | Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 5×1.5 | 1.38 | / | 0.8 | / | 0.2 | 1.8 | 15.4 | 344 |
| 5×2.5 | 1.78 | / | 0.8 | / | 0.2 | 1.8 | 16.5 | 417 |
| 5×4 | 2.25 | / | 1.0 | / | 0.2 | 1.8 | 18.8 | 567 |
| 5×6 | 2.76 | / | 1.0 | / | 0.2 | 1.8 | 20.2 | 699 |
| 5×10 | 4.0 | / | 1.0 | / | 0.2 | 1.8 | 22.9 | 990 |
| 5×16 | 4.8 | / | 1.0 | / | 0.2 | 1.8 | 25.1 | 1327 |
| 5×25 | 6.0 | / | 1.2 | / | 0.2 | 1.9 | 29.6 | 1913 |
| 5×35 | 7.0 | / | 1.2 | / | 0.2 | 1.9 | 33.0 | 2489 |
| 5×50 | 8.3 | / | 1.4 | / | 0.5 | 2.2 | 39.4 | 3670 |
| 5×70 | 9.8 | / | 1.4 | / | 0.5 | 2.3 | 44.3 | 4799 |
| 5×95 | 11.7 | / | 1.6 | / | 0.5 | 2.5 | 51.1 | 6421 |
| 5×120 | 13.1 | / | 1.6 | / | 0.5 | 2.6 | 55.0 | 7756 |
| 5×150 | 14.6 | / | 1.8 | / | 0.5 | 2.8 | 61.0 | 9470 |
| 5×185 | 16.2 | / | 2.0 | / | 0.5 | 3.0 | 66.8 | 11618 |
| 5×240 | 18.5 | / | 2.2 | / | 0.5 | 3.2 | 74.9 | 14827 |
| 5×300 | 20.7 | / | 2.4 | / | 0.5 | 3.5 | 82.5 | 18251 |
| 5×400 | 23.5 | / | 2.6 | / | 0.8 | 3.8 | 92.9 | 23887 |
| No.of Cores and Nominal Cross Section |
Approx.Conductor Diameter | Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Approx.Overall Diameter |
Approx.Weight of Cable | ||
| Phase | Earth | Phase | Earth | |||||
| No. ×mm² | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 3×2.5+1×1.5 | 1.78 | 1.38 | 0.8 | 0.8 | 0.2 | 1.8 | 14.6 | 349 |
| 3×4+1×2.5 | 2.25 | 1.78 | 1.0 | 0.8 | 0.2 | 1.8 | 16.4 | 457 |
| 3×6+1×4 | 2.76 | 2.25 | 1.0 | 1.0 | 0.2 | 1.8 | 17.9 | 572 |
| 3×10+1×6 | 4.0 | 2.76 | 1.0 | 1.0 | 0.2 | 1.8 | 20.5 | 778 |
| 3×16+1×10 | 4.8 | 4.0 | 1.0 | 1.0 | 0.2 | 1.8 | 22.7 | 1044 |
| 3×25+1×16 | 6.0 | 4.8 | 1.2 | 1.0 | 0.2 | 1.8 | 26.1 | 1461 |
| 3×35+1×16 | 7.0 | 4.8 | 1.2 | 1.0 | 0.2 | 1.8 | 27.9 | 1780 |
| 3×50+1×25 | 8.3 | 6.0 | 1.4 | 1.2 | 0.2 | 1.9 | 32.1 | 2418 |
| 3×70+1×35 | 9.8 | 7.0 | 1.4 | 1.2 | 0.2 | 2.1 | 35.9 | 3196 |
| 3×95+1×50 | 11.7 | 8.3 | 1.6 | 1.4 | 0.5 | 2.3 | 42.5 | 4683 |
| 3×120+1×70 | 13.1 | 9.8 | 1.6 | 1.4 | 0.5 | 2.4 | 47.2 | 5773 |
| 3×150+1×70 | 14.6 | 9.8 | 1.8 | 1.4 | 0.5 | 2.5 | 50.9 | 6755 |
| 3×185+1×95 | 16.2 | 11.7 | 2.0 | 1.6 | 0.5 | 2.7 | 55.5 | 8381 |
| 3×240+1×120 | 18.5 | 13.1 | 2.2 | 1.6 | 0.5 | 2.9 | 62.1 | 10612 |
| 3×300+1×150 | 20.7 | 14.6 | 2.4 | 1.8 | 0.5 | 3.1 | 69.1 | 12996 |
| 3×400+1×185 | 23.5 | 16.2 | 2.6 | 2.0 | 0.5 | 3.3 | 76.9 | 16345 |
| 3×2.5+2×1.5 | 1.78 | 1.38 | 0.8 | 0.8 | 0.2 | 1.8 | 15.3 | 385 |
| 3×4+2×2.5 | 2.25 | 1.78 | 1.0 | 0.8 | 0.2 | 1.8 | 17.2 | 503 |
| 3×6+2×4 | 2.76 | 2.25 | 1.0 | 1.0 | 0.2 | 1.8 | 19.2 | 645 |
| 3×10+2×6 | 4.0 | 2.76 | 1.0 | 1.0 | 0.2 | 1.8 | 21.8 | 875 |
| 3×16+2×10 | 4.8 | 4.0 | 1.0 | 1.0 | 0.2 | 1.8 | 24.5 | 1194 |
| 3×25+2×16 | 6.0 | 4.8 | 1.2 | 1.0 | 0.2 | 1.8 | 28.0 | 1668 |
| 3×35+2×16 | 7.0 | 4.8 | 1.2 | 1.0 | 0.2 | 1.9 | 29.8 | 1994 |
| 3×50+2×25 | 8.3 | 6.0 | 1.4 | 1.2 | 0.2 | 2.0 | 34.9 | 2740 |
| 3×70+2×35 | 9.8 | 7.0 | 1.4 | 1.2 | 0.5 | 2.2 | 40.0 | 3996 |
| 3×95+2×50 | 11.7 | 8.3 | 1.6 | 1.4 | 0.5 | 2.4 | 46.5 | 5320 |
| 3×120+2×70 | 13.1 | 9.8 | 1.6 | 1.4 | 0.5 | 2.5 | 50.6 | 6582 |
| 3×150+2×70 | 14.6 | 9.8 | 1.8 | 1.4 | 0.5 | 2.6 | 53.5 | 7551 |
| 3×185+2×95 | 16.2 | 11.7 | 2.0 | 1.6 | 0.5 | 2.8 | 59.9 | 9538 |
| 3×240+2×120 | 18.5 | 13.1 | 2.2 | 1.6 | 0.5 | 3.0 | 66.2 | 11948 |
| 3×300+2×150 | 20.7 | 14.6 | 2.4 | 1.8 | 0.5 | 3.2 | 72.9 | 14629 |
| 3×400+2×185 | 23.5 | 16.2 | 2.6 | 2.0 | 0.5 | 3.5 | 81.5 | 18414 |
| 4×2.5+1×1.5 | 1.78 | 1.38 | 0.8 | 0.8 | 0.2 | 1.8 | 15.6 | 402 |
| 4×4+1×2.5 | 2.25 | 1.78 | 1.0 | 0.8 | 0.2 | 1.8 | 17.0 | 536 |
| 4×6+1×4 | 2.76 | 2.25 | 1.0 | 1.0 | 0.2 | 1.8 | 18.5 | 674 |
| 4×10+1×6 | 4.0 | 2.76 | 1.0 | 1.0 | 0.2 | 1.8 | 22.2 | 935 |
| 4×16+1×10 | 4.8 | 4.0 | 1.0 | 1.0 | 0.2 | 1.8 | 23.9 | 1264 |
| 4×25+1×16 | 6.0 | 4.8 | 1.2 | 1.0 | 0.2 | 1.8 | 27.8 | 1785 |
| 4×35+1×16 | 7.0 | 4.8 | 1.2 | 1.0 | 0.2 | 1.9 | 30.2 | 2217 |
| 4×50+1×25 | 8.3 | 6.0 | 1.4 | 1.2 | 0.2 | 2.1 | 36.5 | 3021 |
| 4×70+1×35 | 9.8 | 7.0 | 1.4 | 1.2 | 0.5 | 2.3 | 41.9 | 4405 |
| 4×95+1×50 | 11.7 | 8.3 | 1.6 | 1.4 | 0.5 | 2.4 | 48.2 | 5859 |
| 4×120+1×70 | 13.1 | 9.8 | 1.6 | 1.4 | 0.5 | 2.6 | 52.4 | 7183 |
| 4×150+1×70 | 14.6 | 9.8 | 1.8 | 1.4 | 0.5 | 2.7 | 56.4 | 8537 |
| 4×185+1×95 | 16.2 | 11.7 | 2.0 | 1.6 | 0.5 | 2.9 | 62.3 | 10577 |
| 4×240+1×120 | 18.5 | 13.1 | 2.2 | 1.6 | 0.5 | 3.1 | 70.0 | 13344 |
| 4×300+1×150 | 20.7 | 14.6 | 2.4 | 1.8 | 0.5 | 3.3 | 77.4 | 16456 |
| 4×400+1×185 | 23.5 | 16.2 | 2.6 | 2.0 | 0.8 | 3.7 | 86.7 | 21559 |
