SAC Cable(ICEA)
This standard applies of supported spacer cable. These conductors are intended primarily for the distribution of electrical energy under normal conditions of overhead (aerial) installations.
Home > Products > Overhead Insulated Cable
This standard applies of supported spacer cable. These conductors are intended primarily for the distribution of electrical energy under normal conditions of overhead (aerial) installations.
This standard applies of supported spacer cable. These conductors are intended primarily for the distribution of electrical energy under normal conditions of overhead (aerial) installations. They are considered as covered conductors therefore the cables carry no voltage rating. The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer.

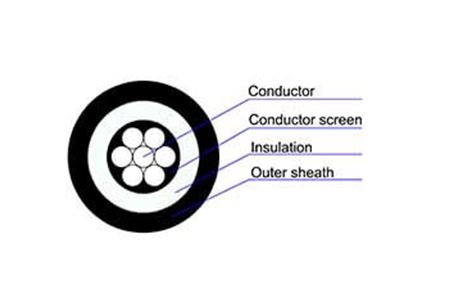

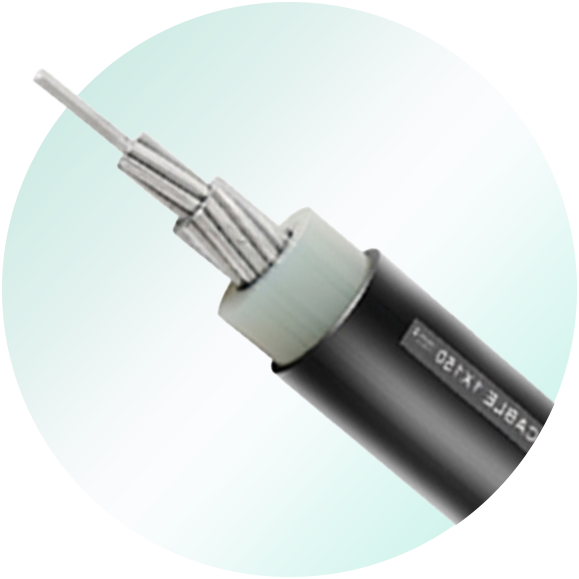

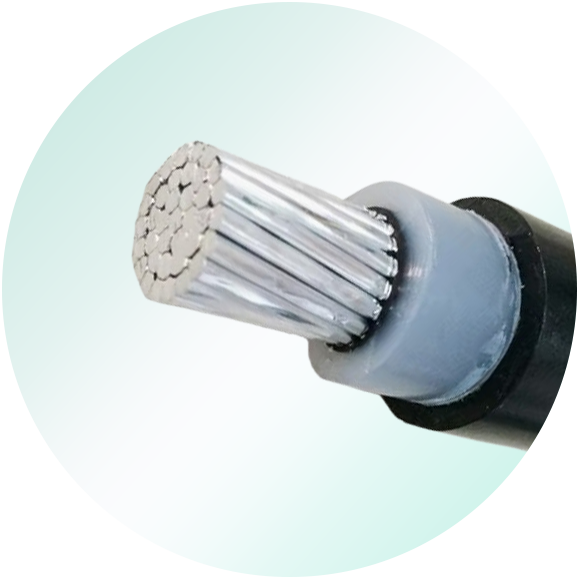

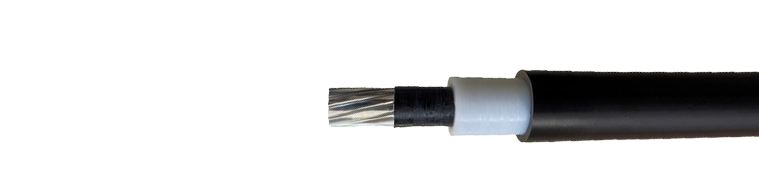

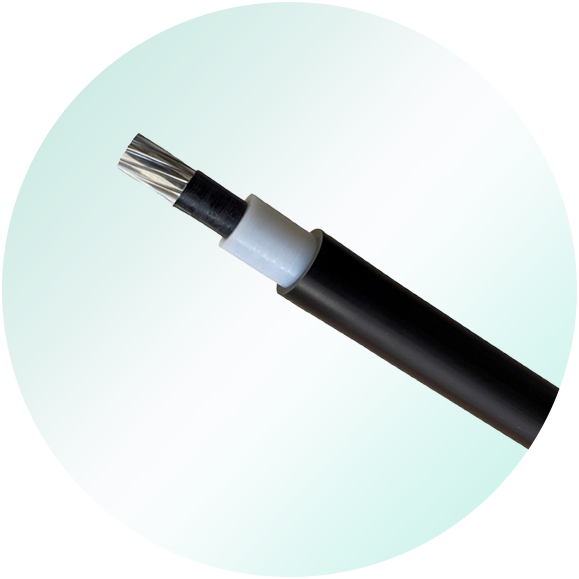

Conductor: Stranded, circular compressed aluminum.
Conductor Screen: The extruded Semi-conducting conductor shield in Black.
Inner Insulation: Natural color thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE).
Outer Insulation: Thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE) in Black or Grey with Weather or UV resistant.
This standard covers both thermoplastic and cross linked polyethylene constructions, rated for 75°C or 90°C normal service temperature.
This cable has UV-resistant properties, making it more durable and have a longer service life on overhead lines. Especially its a economic design and best suited for distribution line.
Cross-Linked-Thermosetting-Polyethylene-Insulated Wire and Cable for The Transmission and Distribution of Electrical Energy
Power cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV (Um=1.2kV) up to 30kV (Um=36kV) - Part 2: Cables for Rated Voltages of 6kV (Um=7.2kV) and 30kV (Um=36kV)
(Equal to IEC 60502-2) Aerial Insulated Cables For Rated Voltage of 10kV
| SAC Cable (AAC/XLPE/XLPE) IEC 60502-2;ICEA S 66-524 | |||||||
| Nominal Size | Min. No. of Wires |
Covering Thickness | Cable Diameter | Min. Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | kg/km |
| 3-Layer 15kV AAC/XLPE/XLPE | |||||||
| 25 | 6 | 0.60 | 1.91 | 1.91 | 15.2 | 3762 | 218 |
| 35 | 6 | 0.60 | 1.91 | 1.91 | 16.2 | 5177 | 258 |
| 50 | 6 | 0.60 | 1.91 | 1.91 | 17.3 | 7011 | 307 |
| 70 | 12 | 0.60 | 1.91 | 1.91 | 19.0 | 10354 | 387 |
| 95 | 15 | 0.60 | 1.91 | 1.91 | 20.8 | 13727 | 482 |
| 120 | 15 | 0.60 | 1.91 | 1.91 | 22.0 | 17339 | 564 |
| 150 | 15 | 0.60 | 1.91 | 1.91 | 23.7 | 21033 | 660 |
| 185 | 30 | 0.60 | 1.91 | 1.91 | 25.3 | 26732 | 780 |
| 240 | 30 | 0.60 | 1.91 | 1.91 | 27.6 | 34679 | 968 |
| 3-Layer 25kV AAC/XLPE/XLPE | |||||||
| 25 | 6 | 0.70 | 3.18 | 3.18 | 20.1 | 3762 | 351 |
| 35 | 6 | 0.70 | 3.18 | 3.18 | 21.1 | 5177 | 398 |
| 50 | 6 | 0.70 | 3.18 | 3.18 | 22.2 | 7011 | 455 |
| 70 | 12 | 0.70 | 3.18 | 3.18 | 23.9 | 10354 | 548 |
| 95 | 15 | 0.70 | 3.18 | 3.18 | 25.7 | 13727 | 657 |
| 120 | 15 | 0.70 | 3.18 | 3.18 | 26.9 | 17339 | 748 |
| 150 | 15 | 0.70 | 3.18 | 3.18 | 28.6 | 21033 | 856 |
| 185 | 30 | 0.70 | 3.18 | 3.18 | 30.2 | 26732 | 989 |
| 240 | 30 | 0.70 | 3.18 | 3.18 | 32.5 | 34679 | 1195 |
| 3-Layer 35kV AAC/XLPE/XLPE | |||||||
| 25 | 6 | 0.70 | 4.45 | 3.18 | 22.6 | 3762 | 433 |
| 35 | 6 | 0.70 | 4.45 | 3.18 | 23.6 | 5177 | 485 |
| 50 | 6 | 0.70 | 4.45 | 3.18 | 24.7 | 7011 | 545 |
| 70 | 12 | 0.70 | 4.45 | 3.18 | 26.4 | 10354 | 645 |
| 95 | 15 | 0.70 | 4.45 | 3.18 | 28.2 | 13727 | 761 |
| 120 | 15 | 0.70 | 4.45 | 3.18 | 29.4 | 17339 | 856 |
| 150 | 15 | 0.70 | 4.45 | 3.18 | 31.1 | 21033 | 971 |
| 185 | 30 | 0.70 | 4.45 | 3.18 | 32.7 | 26732 | 1110 |
| 240 | 30 | 0.70 | 4.45 | 3.18 | 35.0 | 34679 | 1324 |
| SAC Cable (AAC/XLPE/HDPE) IEC 60502-2;ICEA S 66-524 | |||||||
| Nominal Size | Min. No. of Wires |
Covering Thickness | Cable Diameter | Min. Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | kg/km |
| 3-Layer 15kV AAC/XLPE/HDPE | |||||||
| 25 | 6 | 0.60 | 1.91 | 1.91 | 15.2 | 3762 | 221 |
| 35 | 6 | 0.60 | 1.91 | 1.91 | 16.2 | 5177 | 261 |
| 50 | 6 | 0.60 | 1.91 | 1.91 | 17.3 | 7011 | 310 |
| 70 | 12 | 0.60 | 1.91 | 1.91 | 19.0 | 10354 | 390 |
| 95 | 15 | 0.60 | 1.91 | 1.91 | 20.8 | 13727 | 486 |
| 120 | 15 | 0.60 | 1.91 | 1.91 | 22.0 | 17339 | 568 |
| 150 | 15 | 0.60 | 1.91 | 1.91 | 23.7 | 21033 | 664 |
| 185 | 30 | 0.60 | 1.91 | 1.91 | 25.3 | 26732 | 785 |
| 240 | 30 | 0.60 | 1.91 | 1.91 | 27.6 | 34679 | 973 |
| 3-Layer 25kV AAC/XLPE/HDPE | |||||||
| 25 | 6 | 0.70 | 3.18 | 3.18 | 20.1 | 3762 | 356 |
| 35 | 6 | 0.70 | 3.18 | 3.18 | 21.1 | 5177 | 404 |
| 50 | 6 | 0.70 | 3.18 | 3.18 | 22.2 | 7011 | 461 |
| 70 | 12 | 0.70 | 3.18 | 3.18 | 23.9 | 10354 | 555 |
| 95 | 15 | 0.70 | 3.18 | 3.18 | 25.7 | 13727 | 664 |
| 120 | 15 | 0.70 | 3.18 | 3.18 | 26.9 | 17339 | 755 |
| 150 | 15 | 0.70 | 3.18 | 3.18 | 28.6 | 21033 | 864 |
| 185 | 30 | 0.70 | 3.18 | 3.18 | 30.2 | 26732 | 997 |
| 240 | 30 | 0.70 | 3.18 | 3.18 | 32.5 | 34679 | 1203 |
| 3-Layer 35kV AAC/XLPE/HDPE | |||||||
| 25 | 6 | 0.70 | 4.45 | 3.18 | 22.6 | 3762 | 439 |
| 35 | 6 | 0.70 | 4.45 | 3.18 | 23.6 | 5177 | 491 |
| 50 | 6 | 0.70 | 4.45 | 3.18 | 24.7 | 7011 | 552 |
| 70 | 12 | 0.70 | 4.45 | 3.18 | 26.4 | 10354 | 652 |
| 95 | 15 | 0.70 | 4.45 | 3.18 | 28.2 | 13727 | 768 |
| 120 | 15 | 0.70 | 4.45 | 3.18 | 29.4 | 17339 | 864 |
| 150 | 15 | 0.70 | 4.45 | 3.18 | 31.1 | 21033 | 980 |
| 185 | 30 | 0.70 | 4.45 | 3.18 | 32.7 | 26732 | 1119 |
| 240 | 30 | 0.70 | 4.45 | 3.18 | 35.0 | 34679 | 1334 |
