Service Drop Cable(ANSI-ICEA)
The service drop cable is primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.
Home > Products > Overhead Insulated Cable
The service drop cable is primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.
The service drop cable is primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase - to - phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

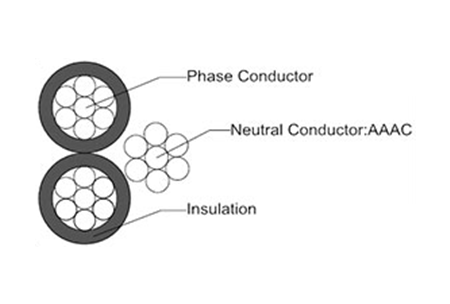

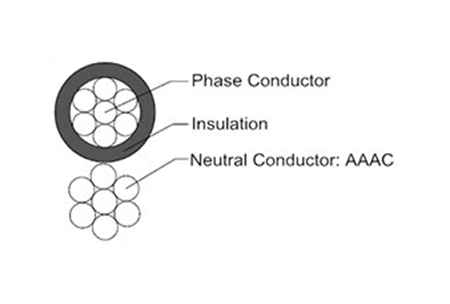

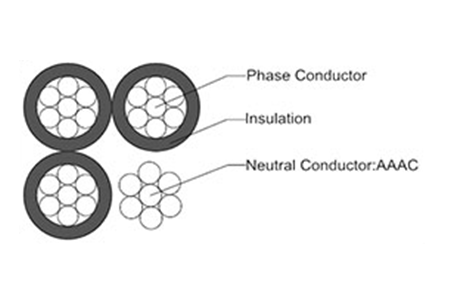

The conductor consists of a phase conductor and a neutral conductor.
Phase Conductor: Aluminum or copper and may be solid, stranded circular compacted or compressed or uncompressed conductor.
Neutral Conductor: Stranded round circular uncompressed aluminum or copper or aluminum-alloy conductor or ACSR or ACSR/AW etc.
Insulation: Black weather or UV-resistant thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE).
Note: Neutral conductors can be insulated or non-insulated.
This cable has UV-resistant properties, making it more durable and have a longer service life on overhead lines. Especially its a economic design and best suited for distribution line.
Neutral-Supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600 Volts.
Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
Compact-Round Stranded Aluminum 1350 Conductors.
Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
For Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Pekingese | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 11.1 | 92 |
| Collie | 6 | 7 | 1.14 | 6 | 7 | 1.56 | 11.5 | 94 |
| Cocker | 6 | 7 | 1.52 | 6 | 7 | 1.56 | 12.2 | 100 |
| Dachshund | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 13.4 | 140 |
| Spaniel | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 13.9 | 143 |
| Cairn | 4 | 7 | 1.52 | 4 | 7 | 1.96 | 14.6 | 150 |
| Doberman | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 16.9 | 220 |
| Airedale | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 19.6 | 280 |
| Basset | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 21.8 | 355 |
| Malemute | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 21.6 | 350 |
| AAC/XLPE+AAAC | ||||||||
| Chihuahua | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 11.4 | 98 |
| Vizsla | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 11.8 | 100 |
| Harrier | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 13.8 | 149 |
| Whippet | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 14.4 | 154 |
| Schnauzer | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 17.5 | 235 |
| Afghan | 1/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 22.5 | 378 |
| Heeler | 1/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 22.3 | 375 |
| AAC/XLPE+ACSR | ||||||||
| Setter | 6 | 1 | 1.14 | 6 | 6/1 | 1.68 | 11.4 | 109 |
| Shepherd | 6 | 7 | 1.14 | 6 | 6/1 | 1.68 | 11.8 | 112 |
| Retriever | 6 | 7 | 1.52 | 6 | 6/1 | 1.68 | 12.6 | 119 |
| Eskimo | 4 | 1 | 1.14 | 4 | 6/1 | 2.12 | 13.8 | 166 |
| Terrier | 4 | 7 | 1.14 | 4 | 6/1 | 2.12 | 14.4 | 170 |
| Yorkshire | 4 | 7 | 1.52 | 4 | 6/1 | 2.12 | 15.1 | 180 |
| Chow | 2 | 7 | 1.14 | 2 | 6/1 | 2.67 | 17.5 | 262 |
| Labrador | 1 | 19 | 1.52 | 1 | 6/1 | 3.00 | 20.2 | 339 |
| Bloodhound | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 22.5 | 425 |
| Bull | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 22.3 | 422 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Haiotis | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 12.6 | 148 |
| Pike | 6 | 7 | 0.76 | 6 | 7 | 1.56 | 12.1 | 139 |
| Patella | 6 | 7 | 1.14 | 6 | 7 | 1.56 | 13.2 | 154 |
| Albus | 6 | 7 | 1.52 | 6 | 7 | 1.56 | 14.3 | 170 |
| Fusus | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 15.0 | 221 |
| Limpet | 4 | 7 | 1.14 | 6 | 7 | 1.56 | 14.9 | 208 |
| Oyster | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 15.8 | 230 |
| Argo | 4 | 7 | 1.52 | 4 | 7 | 1.96 | 16.9 | 249 |
| Clam | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 19.0 | 347 |
| Thia | 2 | 7 | 1.52 | 2 | 7 | 2.47 | 20.1 | 370 |
| Mussel | 2 | 7 | 1.14 | 4 | 7 | 1.96 | 17.9 | 312 |
| Pyrula | 1 | 7 | 1.52 | 1 | 7 | 2.78 | 22.4 | 465 |
| Hyas | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 22.2 | 450 |
| Snail | 1/0 | 7 | 1.52 | 2 | 7 | 2.47 | 23.2 | 517 |
| Murex | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 24.6 | 572 |
| Purpura | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 24.4 | 554 |
| Nassa | 2/0 | 7 | 1.52 | 2/0 | 7 | 3.50 | 27.1 | 706 |
| Trophon | 2/0 | 19 | 1.52 | 2/0 | 7 | 3.50 | 26.8 | 684 |
| Quahog | 3/0 | 7 | 2.03 | 3/0 | 7 | 3.93 | 31.3 | 920 |
| Ione | 3/0 | 19 | 2.03 | 3/0 | 7 | 3.93 | 31.0 | 892 |
| Melita | 3/0 | 19 | 1.52 | 3/0 | 19 | 2.39 | 29.7 | 845 |
| Coquina | 4/0 | 7 | 1.52 | 4/0 | 7 | 4.42 | 33.0 | 1082 |
| Tusk | 4/0 | 7 | 2.03 | 4/0 | 7 | 4.42 | 34.5 | 1134 |
| Apus | 4/0 | 19 | 2.03 | 4/0 | 7 | 4.42 | 34.1 | 1098 |
| Portunus | 4/0 | 19 | 2.03 | 4/0 | 19 | 2.68 | 34.2 | 1098 |
| Chiton | 266.8 | 19 | 2.03 | 266.8 | 19 | 3.01 | 38.4 | 1379 |
| Alverno | 300 | 37 | 2.03 | 4/0 | 19 | 2.68 | 37.8 | 1386 |
| Nannynose | 336.4 | 19 | 2.03 | 336.4 | 19 | 3.38 | 42.4 | 1707 |
| AAC/XLPE+AAAC | ||||||||
| Minex | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 12.8 | 154 |
| Hippa | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 13.4 | 160 |
| Artemia | 4 | 1 | 1.14 | 30.58 | 7 | 1.68 | 14.4 | 205 |
| Crad | 4 | 7 | 1.14 | 30.58 | 7 | 1.68 | 15.2 | 214 |
| Prawn | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 15.3 | 231 |
| Barnacle | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 16.1 | 239 |
| Solaster | 2 | 7 | 1.14 | 48.69 | 7 | 2.12 | 18.2 | 322 |
| Pagurus | 2 | 7 | 1.52 | 48.69 | 7 | 2.12 | 19.3 | 345 |
| Shrimp | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 19.4 | 362 |
| Lobster | 2 | 7 | 1.52 | 77.47 | 7 | 2.67 | 20.5 | 385 |
| Sanderab | 1/0 | 7 | 1.52 | 77.47 | 7 | 2.67 | 23.6 | 532 |
| Echinus | 1/0 | 19 | 1.52 | 77.47 | 7 | 2.67 | 23.4 | 514 |
| Gammarus | 1/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 25.1 | 597 |
| Leda | 1/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 24.9 | 579 |
| Crayfish | 2/0 | 7 | 1.52 | 97.65 | 7 | 3.00 | 26.0 | 655 |
| Sipho | 2/0 | 19 | 1.52 | 97.65 | 7 | 3.00 | 25.7 | 633 |
| Abalone | 2/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 26.8 | 691 |
| Spirula | 2/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 26.5 | 669 |
| Dungenese | 2/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 27.7 | 736 |
| Cyclops | 2/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 27.4 | 714 |
| Slug | 3/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 28.6 | 809 |
| Fulgur | 3/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 28.4 | 781 |
| Balanus | 3/0 | 19 | 2.03 | 123.3 | 7 | 3.37 | 29.8 | 828 |
| Stonecrab | 3/0 | 7 | 1.52 | 195.7 | 7 | 4.25 | 30.5 | 904 |
| Flustra | 3/0 | 19 | 1.52 | 195.7 | 7 | 4.25 | 30.3 | 884 |
| Crisia | 3/0 | 19 | 2.03 | 195.7 | 7 | 4.25 | 31.7 | 931 |
| Squid | 4/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 31.6 | 1001 |
| Arca | 4/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 31.3 | 966 |
| Bugula | 4/0 | 19 | 2.03 | 155.4 | 7 | 3.78 | 32.7 | 1018 |
| Kingcrab | 4/0 | 7 | 1.52 | 246.9 | 7 | 4.77 | 33.8 | 1131 |
| Lepas | 4/0 | 19 | 1.52 | 246.9 | 7 | 4.77 | 33.4 | 1096 |
| Cassis | 4/0 | 19 | 2.03 | 246.9 | 7 | 4.77 | 34.9 | 1147 |
| Cyphoma | 4/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 30.8 | 957 |
| Mitre | 4/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 30.4 | 921 |
| Argonaut | 336.4 | 19 | 2.03 | 246.9 | 7 | 4.77 | 40.5 | 1579 |
| Nautilis | 336.4 | 19 | 2.03 | 394.5 | 19 | 3.66 | 43.4 | 1787 |
| AAC/XLPE+ACSR | ||||||||
| Paludina | 6 | 1 | 1.14 | 6 | 6/1 | 1.68 | 12.8 | 165 |
| Voluta | 6 | 7 | 1.14 | 6 | 6/1 | 1.68 | 13.4 | 171 |
| Bolma | 6 | 7 | 1.52 | 6 | 6/1 | 1.68 | 14.5 | 188 |
| Scallop | 4 | 1 | 1.14 | 6 | 6/1 | 1.68 | 14.4 | 217 |
| Strombus | 4 | 7 | 1.14 | 6 | 6/1 | 1.68 | 15.1 | 225 |
| Carnea | 4 | 7 | 1.52 | 6 | 6/1 | 1.68 | 16.2 | 244 |
| Whelk | 4 | 1 | 1.14 | 4 | 6/1 | 2.12 | 15.3 | 249 |
| Periwinkle | 4 | 7 | 1.14 | 4 | 6/1 | 2.12 | 16.1 | 257 |
| Calma | 4 | 7 | 1.52 | 4 | 6/1 | 2.12 | 17.2 | 277 |
| Cockle | 2 | 7 | 1.14 | 4 | 6/1 | 2.12 | 18.2 | 340 |
| Gebia | 2 | 7 | 1.52 | 4 | 6/1 | 2.12 | 19.3 | 363 |
| Conch | 2 | 7 | 1.14 | 2 | 6/1 | 2.67 | 19.4 | 391 |
| Uca | 2 | 7 | 1.52 | 2 | 6/1 | 2.67 | 20.5 | 414 |
| Vermeths | 1 | 7 | 1.52 | 1 | 6/1 | 3.00 | 22.9 | 520 |
| Atya | 1 | 19 | 1.52 | 1 | 6/1 | 3.00 | 22.6 | 506 |
| Janthina | 1/0 | 7 | 1.52 | 2 | 6/1 | 2.67 | 23.6 | 561 |
| Ranella | 1/0 | 19 | 1.52 | 2 | 6/1 | 2.67 | 23.4 | 543 |
| Neritina | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 25.1 | 642 |
| Cenia | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 24.9 | 624 |
| Cavolinia | 2/0 | 7 | 1.52 | 1 | 6/1 | 3.00 | 26.0 | 691 |
| Clio | 2/0 | 19 | 1.52 | 1 | 6/1 | 3.00 | 25.7 | 669 |
| Runcina | 2/0 | 7 | 1.52 | 2/0 | 6/1 | 3.78 | 27.7 | 794 |
| Triton | 2/0 | 19 | 1.52 | 2/0 | 6/1 | 3.78 | 27.4 | 772 |
| Sanddollar | 3/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 28.6 | 854 |
| Aega | 3/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 28.4 | 827 |
| Pisa | 3/0 | 19 | 2.03 | 1/0 | 6/1 | 3.37 | 29.8 | 874 |
| Cherrystone | 3/0 | 7 | 1.52 | 3/0 | 6/1 | 4.25 | 30.5 | 983 |
| Mursia | 3/0 | 19 | 1.52 | 3/0 | 6/1 | 4.25 | 30.3 | 956 |
| Mysis | 3/0 | 19 | 2.03 | 3/0 | 6/1 | 4.25 | 31.7 | 1003 |
| Cuttlefish | 4/0 | 7 | 1.52 | 2/0 | 6/1 | 3.78 | 31.7 | 1059 |
| Cerapus | 4/0 | 19 | 1.52 | 2/0 | 6/1 | 3.78 | 31.3 | 1024 |
| Nepatus | 4/0 | 19 | 2.03 | 2/0 | 6/1 | 3.78 | 32.7 | 1075 |
| Razor | 4/0 | 7 | 1.52 | 4/0 | 6/1 | 4.77 | 33.8 | 1222 |
| Zuzara | 4/0 | 19 | 1.52 | 4/0 | 6/1 | 4.77 | 33.4 | 1187 |
| Alima | 4/0 | 19 | 2.03 | 4/0 | 6/1 | 4.77 | 34.9 | 1238 |
| Callista | 266.8 | 19 | 2.03 | 3/0 | 6/1 | 4.25 | 36.7 | 1350 |
| Dosinia | 266.8 | 19 | 2.03 | 266.8 | 18/1 | 3.09 | 38.7 | 1438 |
| Cowry | 336.4 | 19 | 2.03 | 4/0 | 6/1 | 4.77 | 40.5 | 1670 |
| Limpet | 336.4 | 19 | 2.03 | 336.4 | 18/1 | 3.47 | 42.7 | 1782 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Quarter | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 14.4 | 203 |
| Clydesdate | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 17.1 | 302 |
| Pinto | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 18.1 | 315 |
| Mustang | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 21.7 | 474 |
| Shire | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 25.4 | 616 |
| Libyan | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 28.2 | 784 |
| Criollo | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 27.9 | 757 |
| Orloff | 2/0 | 7 | 1.52 | 2/0 | 7 | 3.50 | 30.9 | 965 |
| Percheron | 2/0 | 19 | 1.52 | 2/0 | 7 | 3.50 | 30.6 | 931 |
| Mongolian | 3/0 | 7 | 1.52 | 3/0 | 7 | 3.93 | 34.1 | 1190 |
| Hanoverian | 3/0 | 19 | 1.52 | 3/0 | 19 | 2.39 | 33.8 | 1148 |
| Singlefoot | 4/0 | 7 | 1.52 | 4/0 | 7 | 4.42 | 37.6 | 1474 |
| Oldenburg | 4/0 | 19 | 1.52 | 4/0 | 19 | 2.68 | 37.2 | 1421 |
| Lippizaner | 336.4 | 19 | 2.03 | 336.4 | 19 | 3.38 | 48.3 | 2322 |
| AAC/XLPE+AAAC | ||||||||
| Bay | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 14.7 | 209 |
| French-Coach | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 15.4 | 218 |
| German-Coach | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 17.4 | 312 |
| Arabian | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 18.4 | 324 |
| Belgian | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 22.0 | 489 |
| Viatka | 1/0 | 7 | 1.52 | 77.47 | 7 | 2.67 | 27.4 | 743 |
| Thoroughbred | 2/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 31.1 | 962 |
| Celtic | 2/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 30.7 | 950 |
| Norman | 2/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 30.3 | 917 |
| Donkey | 3/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 33.0 | 1126 |
| Burro | 3/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 32.7 | 1085 |
| Dobbin | 3/0 | 7 | 1.52 | 195.7 | 7 | 4.25 | 34.6 | 1229 |
| Trotter | 3/0 | 19 | 1.52 | 195.7 | 7 | 4.25 | 34.3 | 1188 |
| Roan | 4/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 35.7 | 1348 |
| Gotland | 4/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 35.2 | 1295 |
| Bali | 4/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 36.5 | 1393 |
| Skyros | 4/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 36.0 | 1340 |
| Pony | 4/0 | 7 | 1.52 | 246.9 | 7 | 4.77 | 38.3 | 1522 |
| Walking | 4/0 | 19 | 1.52 | 246.9 | 7 | 4.77 | 37.8 | 1470 |
| Exmoor | 336.4 | 19 | 2.03 | 246.9 | 19 | 2.89 | 46.8 | 2193 |
| Breton | 336.4 | 19 | 2.03 | 394.5 | 19 | 3.66 | 49.1 | 2402 |
| AAC/XLPE+ACSR | ||||||||
| Morochuca | 6 | 1 | 1.14 | 6 | 6/1 | 1.68 | 14.7 | 221 |
| Chola | 6 | 7 | 1.14 | 6 | 6/1 | 1.68 | 15.4 | 229 |
| Morgan | 4 | 1 | 1.14 | 4 | 6/1 | 2.12 | 17.4 | 330 |
| Hackney | 4 | 7 | 1.14 | 4 | 6/1 | 2.12 | 18.4 | 342 |
| Palomino | 2 | 7 | 1.14 | 2 | 6/1 | 2.67 | 22.0 | 518 |
| Albino | 1 | 19 | 1.52 | 1 | 6/1 | 3.00 | 25.8 | 672 |
| Standardbred | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 28.6 | 854 |
| Costena | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 28.3 | 827 |
| Chicoteagues | 2/0 | 7 | 1.52 | 2/0 | 6/1 | 3.78 | 31.5 | 1053 |
| Grullo | 2/0 | 19 | 1.52 | 2/0 | 6/1 | 3.78 | 31.1 | 1022 |
| Mare | 3/0 | 7 | 1.52 | 3/0 | 6/1 | 4.25 | 34.6 | 1301 |
| Suffolk | 3/0 | 19 | 1.52 | 3/0 | 6/1 | 4.25 | 34.3 | 1260 |
| Stallion | 4/0 | 7 | 1.52 | 4/0 | 6/1 | 4.77 | 38.3 | 1614 |
| Appaloosa | 4/0 | 19 | 1.52 | 4/0 | 6/1 | 4.77 | 37.8 | 1561 |
| Gelding | 336.4 | 19 | 2.03 | 4/0 | 6/1 | 4.77 | 46.7 | 2285 |
| Bronco | 336.4 | 19 | 2.03 | 336.4 | 18/1 | 3.47 | 48.6 | 2396 |
Huili Cable Co., Ltd. (formerly Luohe Huili Cable Co., Ltd. and Luohe Cable Factory) was founded in 1989 and was renamed Huili Cable Co., Ltd. on September 14, 2024. The company's registered capital is RMB 200 million.
